8.2.3 Setting communication interface (Communication settings)
Make the GOT communication interface settings on [Communication setting] and [Ethernet] of GT
Designer2.
Select the same communication driver as the one installed on the GOT for each communication interface.
For details on [Communication setting] and [Ethernet] of GT Designer2, refer to the following manual.
GT Designer2 Version Screen Design Manual

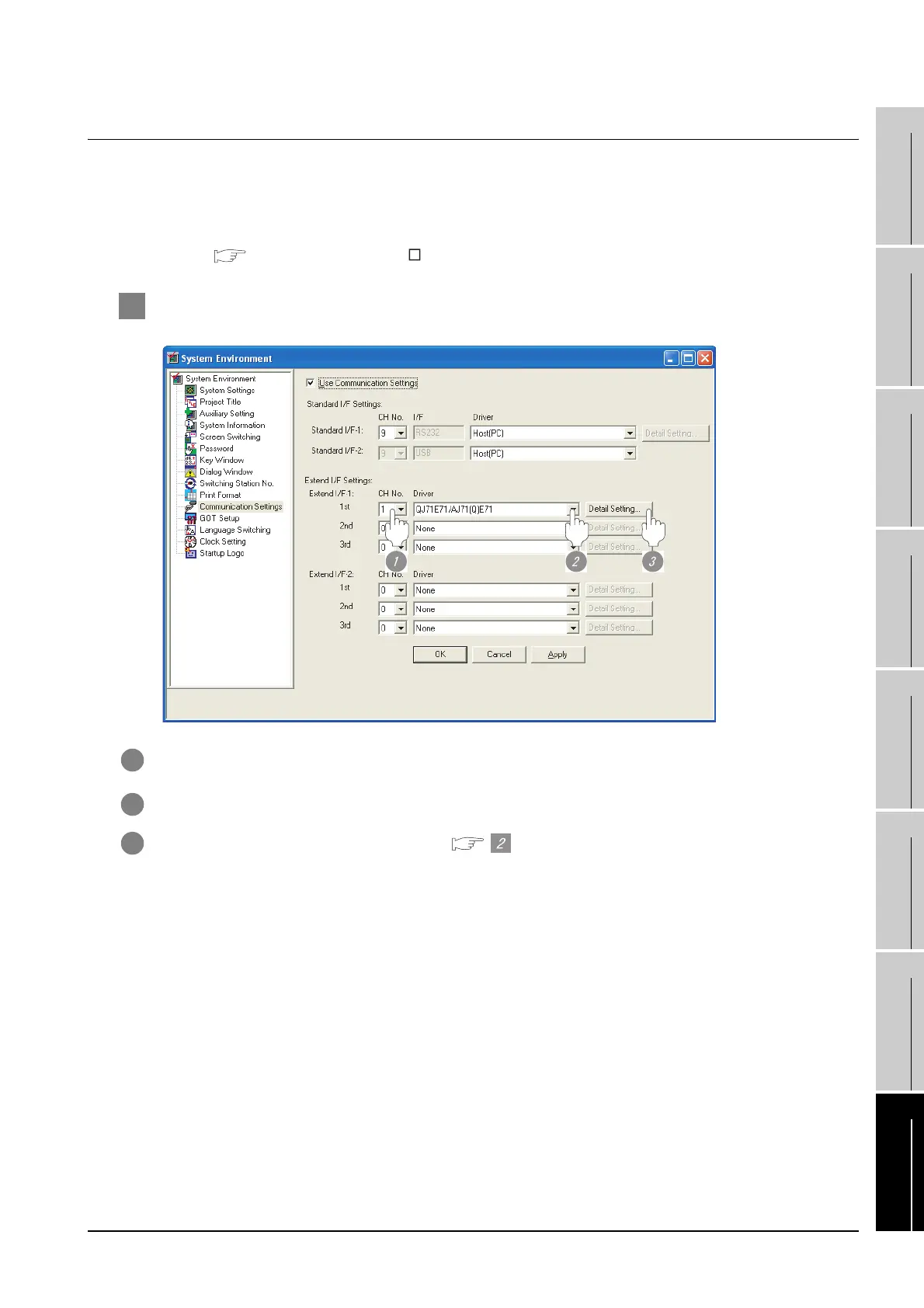

1 Communication settings
1 Set "1" to the channel No. used.
2 Set the driver to "QJ71E71/AJ71(Q)E71".
3 Perform the detailed settings for the driver. ( Communication detail settings)
