Mitsubishi GOT1000 Series User Manual

9.1 System Configuration
9.1.2 Connecting to CQM1, CQM1H or CJ1
9 - 7
9
CONNECTION TO OMRON PLC
10
CONNECTION TO KEYENCE PLC
11
CONNECTION TO SHARP PLC
12
CONNECTION TO TOSHIBA PLC
13
CONNECTION TO HITACHI PLC
14
CONNECTION TO MATSUSHITA PLC
15
CONNECTION TO YASKAWA PLC
16
CONNECTION TO YOKOGAWA PLC

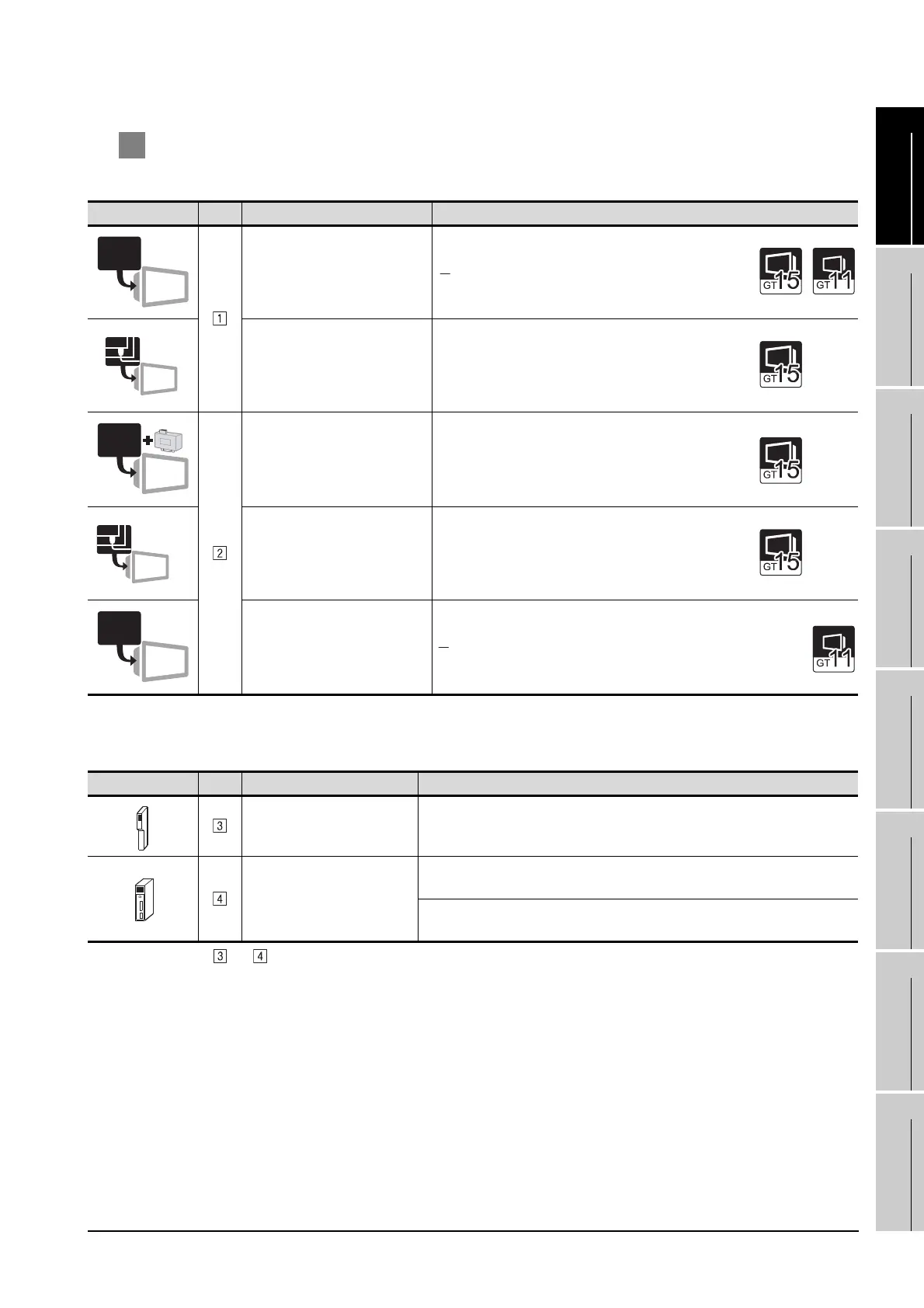

2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) PLC
and are products manufactured by OMRON. For details of these products, contact OMRON.
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
Serial communication board CQM1-SCB41
Serial communication module
CJ1W-SCU41
CJ1W-SCU21-V1
RS-232
RS-232
RS-232
RS-232
RS-422/485
RS-422/485
RS-422
