9.4 PLC Side Setting
9.4.5 Connecting rack type host link unit
9 - 49
9
CONNECTION TO OMRON PLC
10
CONNECTION TO KEYENCE PLC
11
CONNECTION TO SHARP PLC
12
CONNECTION TO TOSHIBA PLC
13
CONNECTION TO HITACHI PLC
14
CONNECTION TO MATSUSHITA PLC
15
CONNECTION TO YASKAWA PLC
16
CONNECTION TO YOKOGAWA PLC

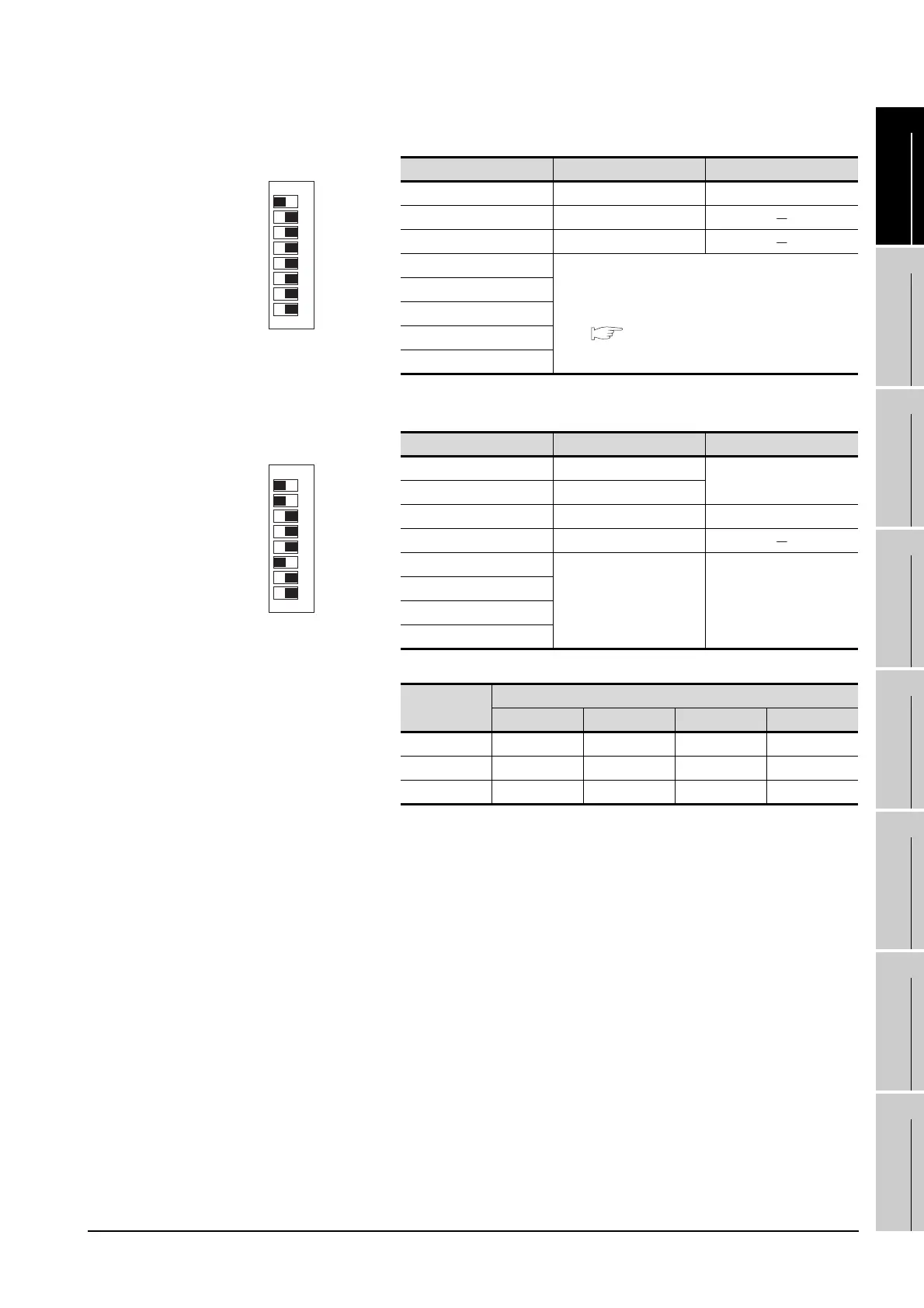

(6) Setting SW1 (Station No., Run/Stop)
(7) Setting SW2 (Transmission speed, Procedure, Level)
*1 Only transmission speeds available on the GOT side are shown.
Switch No. Setting Description
8ONRun
7OFF
6OFF
5
Set the station No. within the range of 00 to 31.
Refer to the following manual for details.
OMRON PLC manual
4
3
2
1
Switch No. Setting Description
8ON
Levels 1, 2 and 3 enabled
7ON
6 OFF 1:N procedure
5OFF
4
*1 Transmission speed
3
2
1
Transmission
speed
Switch No.
SW1 SW2 SW3 SW4
4800bps OFF ON ON OFF
9600bps ON OFF ON OFF
19200bps OFF OFF ON OFF
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
