Mitsubishi GOT1000 Series - Page 409

10.2 Connection cable
10.2.1 RS-232 cable
10 - 11
9
CONNECTION TO OMRON PLC
10
CONNECTION TO KEYENCE PLC
11
CONNECTION TO SHARP PLC
12
CONNECTION TO TOSHIBA PLC
13
CONNECTION TO HITACHI PLC
14
CONNECTION TO MATSUSHITA PLC
15
CONNECTION TO YASKAWA PLC
16
CONNECTION TO YOKOGAWA PLC

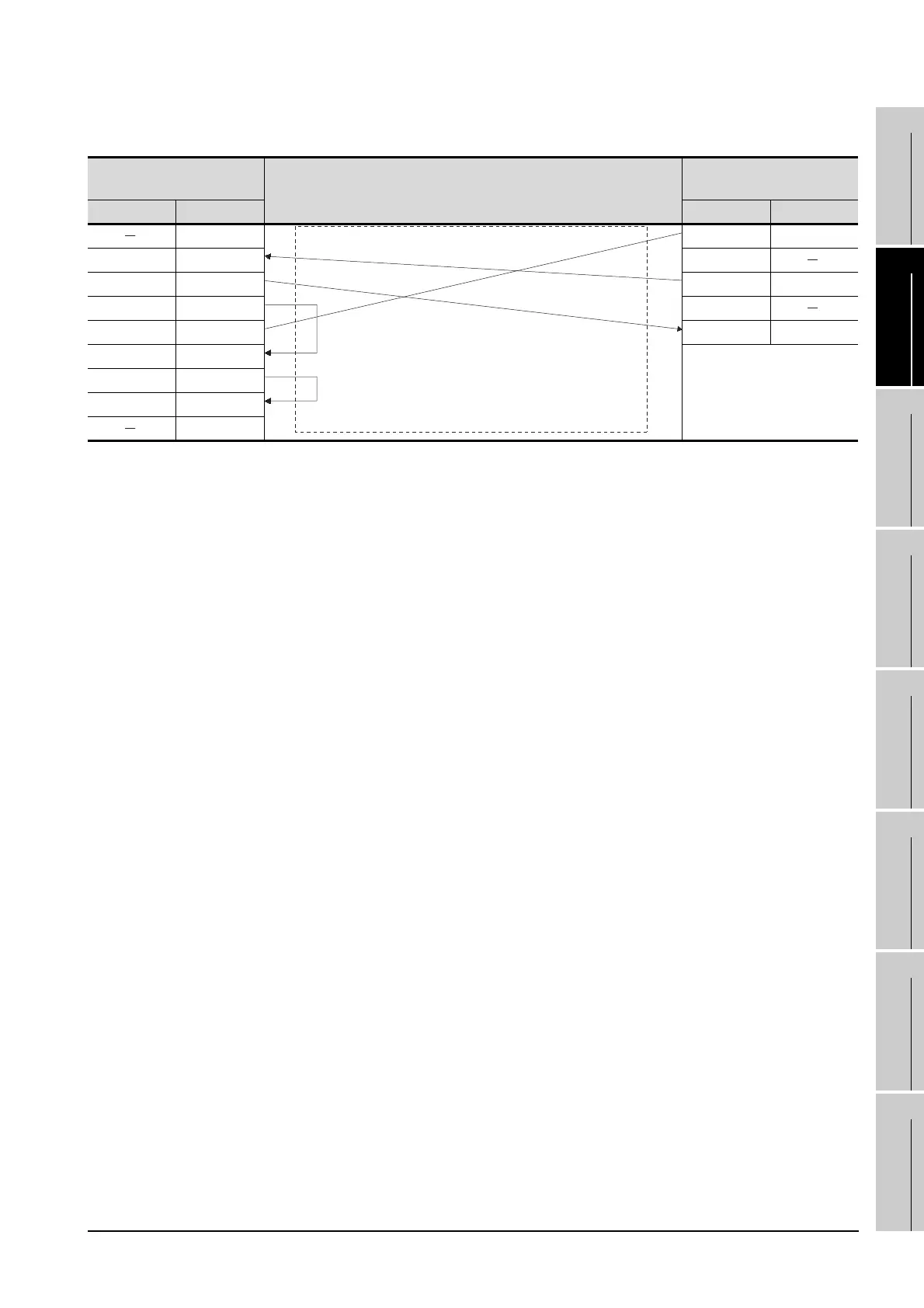

(3) RS-232 cable 4)
GOT side
Cable connection and signal direction
KEYENCE product side
(Terminal block)
Signal name Pin No. Pin No. Signal name
1 1SG
RD(RXD) 2 2
SD(TXD) 3 3SD
ER(DTR) 4 4
SG 5 5RD
DR(DSR) 6
RS(RTS) 7
CS(CTS) 8
9
