10.2 Connection cable
10.2.2 RS-422 cable
10 - 13
9
CONNECTION TO OMRON PLC
10
CONNECTION TO KEYENCE PLC
11
CONNECTION TO SHARP PLC
12
CONNECTION TO TOSHIBA PLC
13
CONNECTION TO HITACHI PLC
14
CONNECTION TO MATSUSHITA PLC
15
CONNECTION TO YASKAWA PLC
16
CONNECTION TO YOKOGAWA PLC
10.2.2 RS-422 cable
The following shows the connection diagrams and connector specifications of the RS-422 cable used for
connecting the GOT to a PLC.

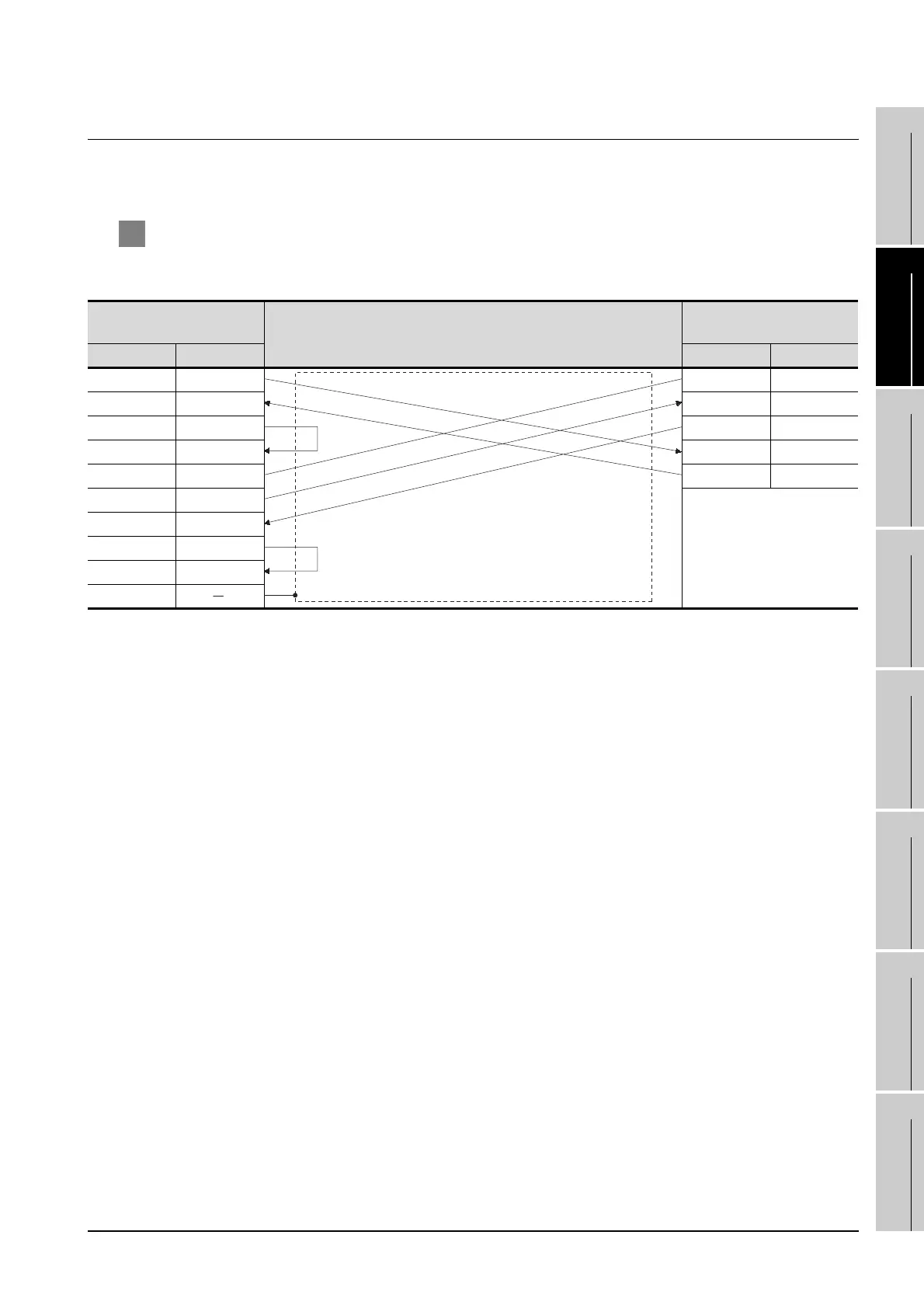

1 Connection diagram
(1) RS-422 cable 1)
GOT side
Cable connection and signal direction
KEYENCE product side
(Terminal block)
Signal name Pin No. Pin No. Signal name
SDA 1 1SG
RDA 2 2 RDA(-)
RSA 3 3SDA(-)
CSA 4 4RDB(+)
SG 5 5SDB(+)
SDB 6
RDB 7
RSB 8
CSB 9
FG
