10.3 Preparatory Procedures for Monitoring
10.3.3 Setting communication interface (Communication settings)
10 - 21
9
CONNECTION TO
OMRON PLC
10
CONNECTION TO
KEYENCE PLC
11
CONNECTION TO
SHARP PLC
12
CONNECTION TO
TOSHIBA PLC
13
CONNECTION TO
HITACHI PLC
14
CONNECTION TO
MATSUSHITA PLC
15
CONNECTION TO
YASKAWA PLC
16
CONNECTION TO
YOKOGAWA PLC

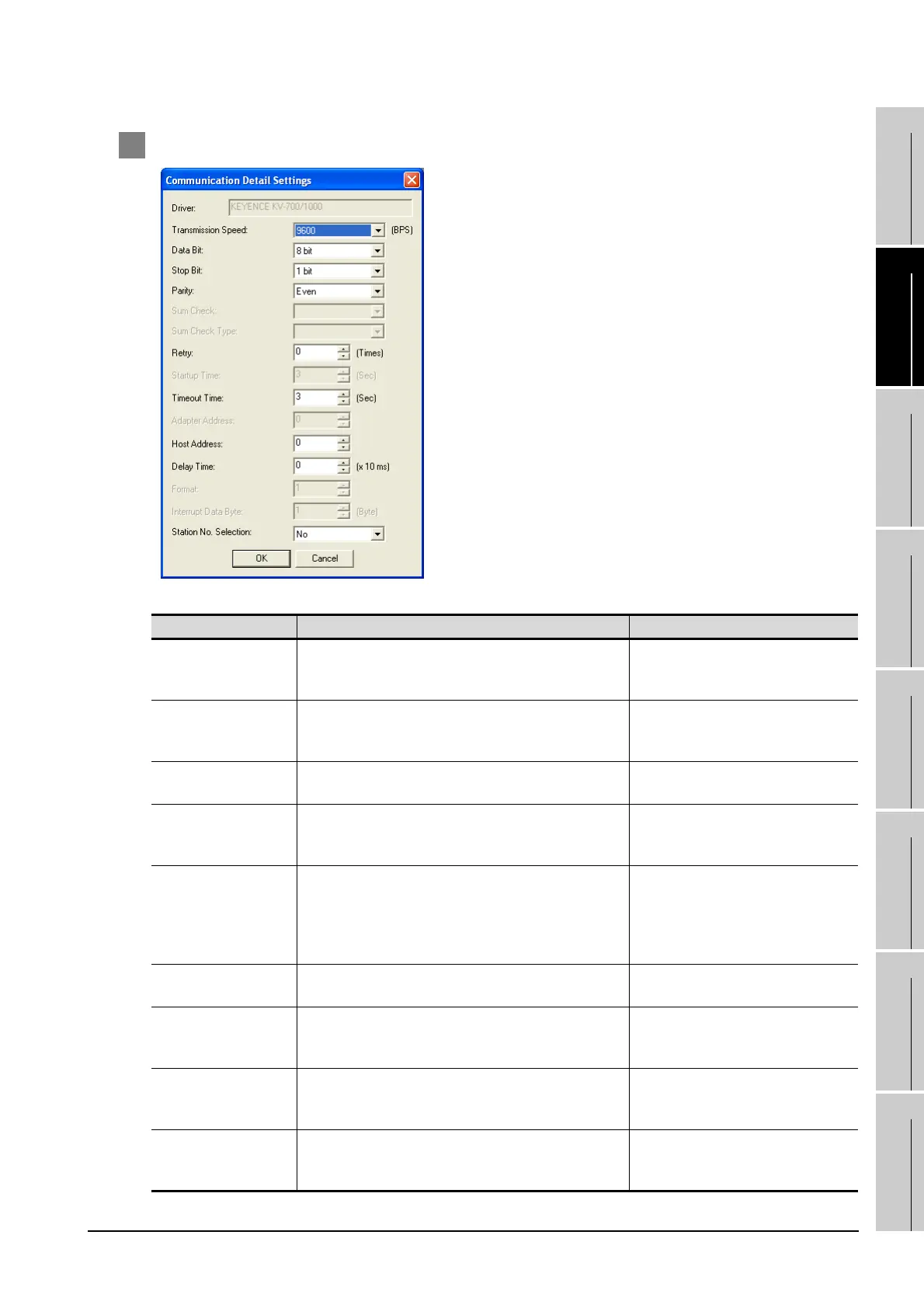

2 Communication detail settings
Item Description Range
Transmission Speed
Set this item when change the transmission speed used for
communication with the connected equipment.
<Default: 9600bps>
9600bps, 19200bps, 38400bps,
57600bps, 115200bps
Data Bit
Set this item when change the data length used for
communication with the connected equipment.
<Default: 8bit>
7bit/8bit
Stop Bit
Specify the stop bit length for communications.
<Default: 1bit>
1bit/2bit
Parity
Specify whether or not to perform a parity check, and how it is
performed during communication.
<Default: Even>
None
Even
Odd
Retry
Set the number of retries to be performed when a
communication error occurs.
When receiving no response after retries, the communication
times out.
<Default: 0 Times>
0 to 5 Times
Timeout Time
Set the time period for a communication to time out.
<Default: 3 Sec>
3 to 30 Sec
Host Address
Specify the host address (station No. of the PLC to which the
GOT is connected) in the network of the GOT.
<Default: 0>
0 to 9
Delay Time
Set this item to adjust the transmission timing of the
communication request from the GOT.
<Default: 0>
0 to 300 ms
Station No. Selection
Specify whether to use the station No. during communication.
If [Yes] is selected, the station No. is fixed to "0."
<Default: No>
Yes or No
