Mitsubishi GOT1000 Series User Manual

10.3 Preparatory Procedures for Monitoring
10.3.5 Attaching communication unit and connecting cable
10 - 25
9
CONNECTION TO OMRON PLC
10
CONNECTION TO KEYENCE PLC
11
CONNECTION TO SHARP PLC
12
CONNECTION TO TOSHIBA PLC
13
CONNECTION TO HITACHI PLC
14
CONNECTION TO MATSUSHITA PLC
15
CONNECTION TO YASKAWA PLC
16
CONNECTION TO YOKOGAWA PLC
2 How to connect the cable

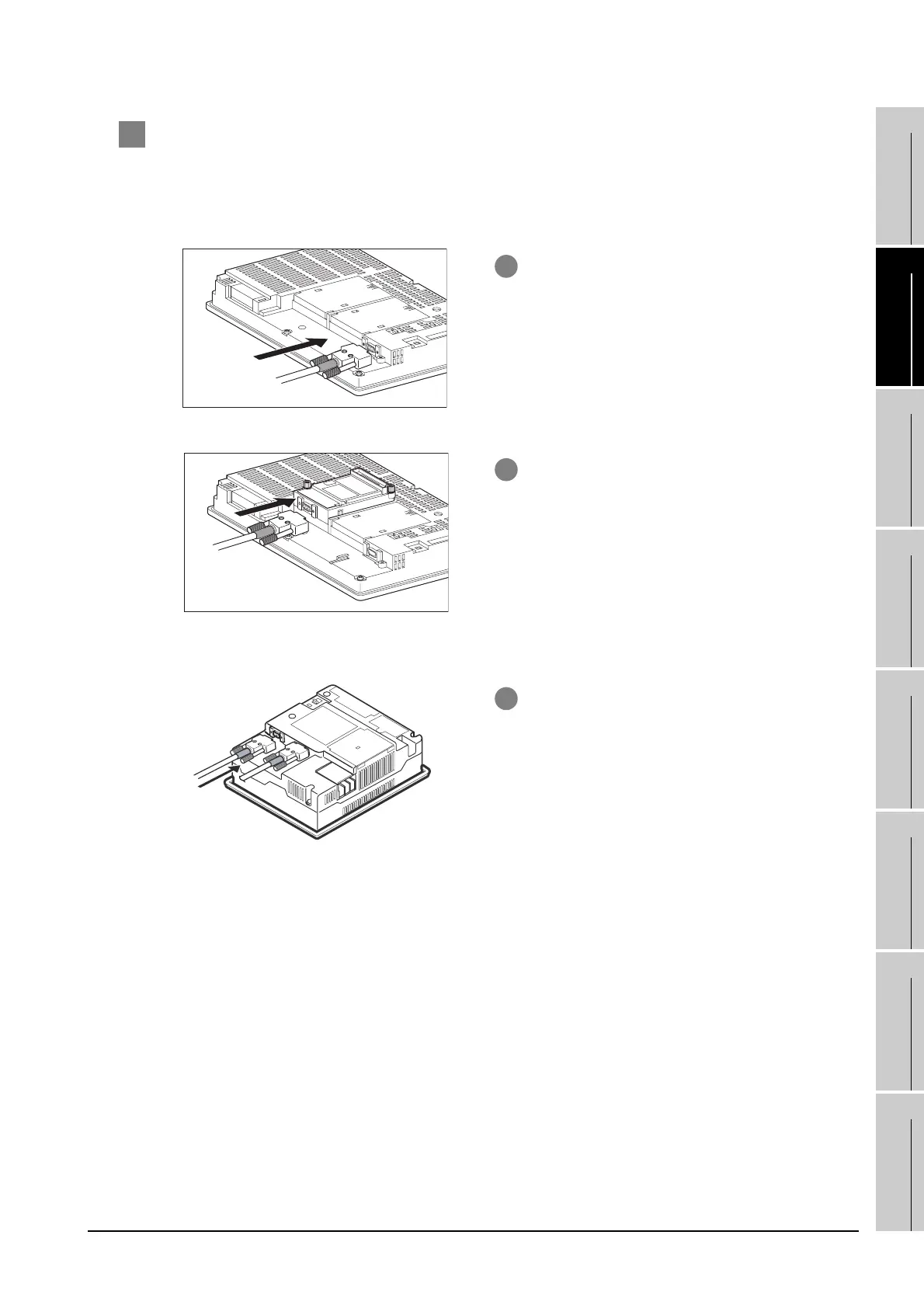

(1) How to connect the RS-232 cable
(a) For the GT15
• connection to the RS-232 interface
• connection to the RS-232 communication unit
(a) For the GT11
1 Connect the RS-232 cable to the RS-232
interface on the GOT.
1 Connect the RS-232 cable to the RS-232
communication unit on the GOT.
1 Connect the RS-232 cable to the RS-232
interface on the GOT.

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
