Mitsubishi GOT1000 Series User Manual

1.2 Overall System Configurations
1 - 13
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION

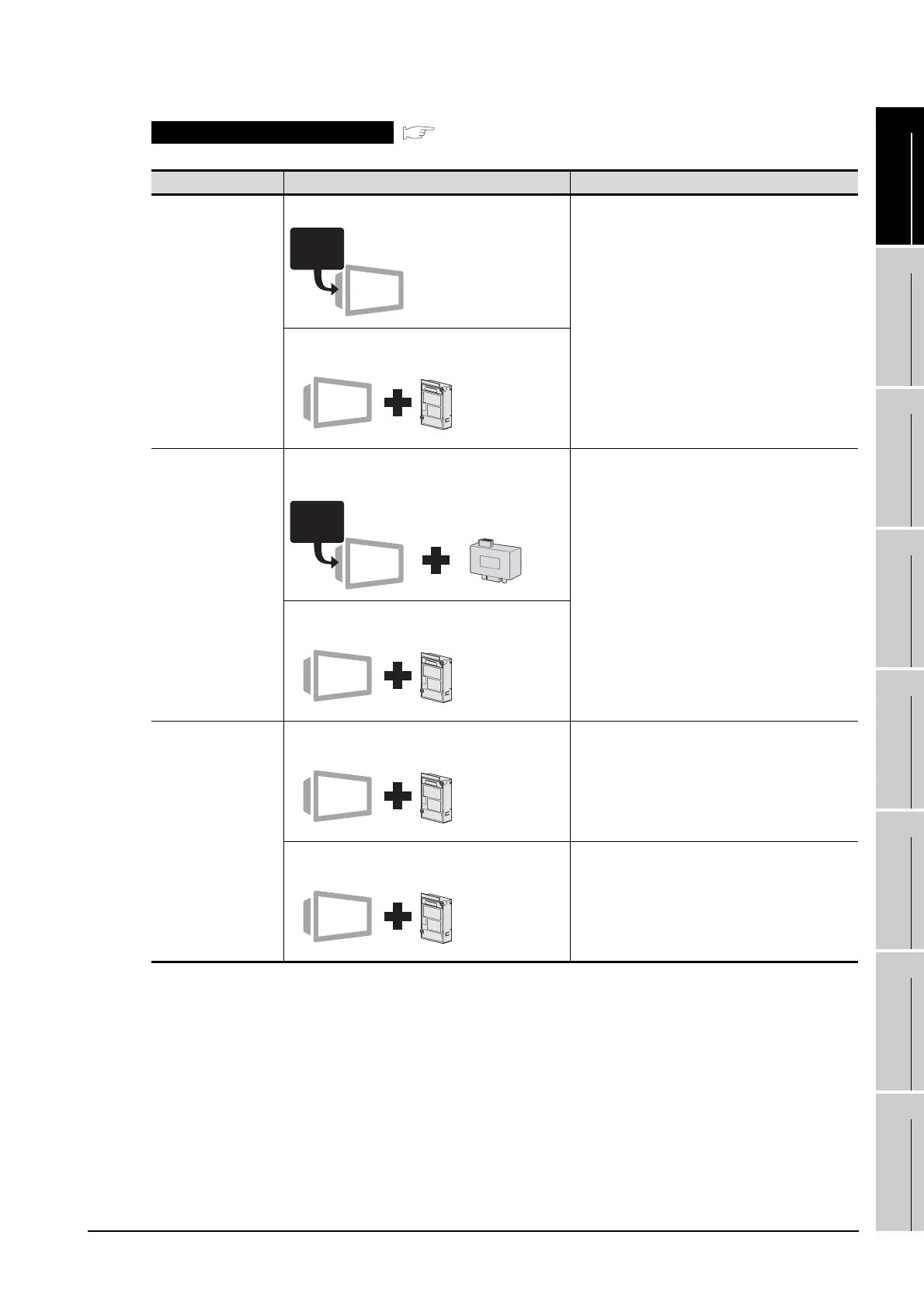

Temperature controller connection
( Chapter 20 to Chapter 22)
Communication Type Communication Interface on GOT Side Connected to
RS-232
communication
Built in GT15 body • OMRON temperature controller
• YAMATAKE temperature controller
• RKC temperature controller
RS-232 Communication Unit
• GT15-RS2-9P
RS-422
communication
RS-422 conversion unit
• GT15-RS2T4-9P
• RKC temperature controller
RS-422/485 Communication Unit
• GT15-RS4-9S
RS-485
communication
RS-422/485 Communication Unit
• GT15-RS4-9S
• YAMATAKE temperature controller
RS-422/485 Communication Unit
•GT15-RS4-TE
• OMRON temperature controller
• YAMATAKE temperature controller
• RKC temperature controller
RS-232
RS-232

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
