11.2 Connection Cable
11.2.2 RS-422 cable
11 - 19
9
CONNECTION TO
OMRON PLC
10
CONNECTION TO
KEYENCE PLC
11
CONNECTION TO
SHARP PLC
12
CONNECTION TO
TOSHIBA PLC
13
CONNECTION TO
HITACHI PLC
14
CONNECTION TO
MATSUSHITA PLC
15
CONNECTION TO
YASKAWA PLC
16
CONNECTION TO
YOKOGAWA PLC

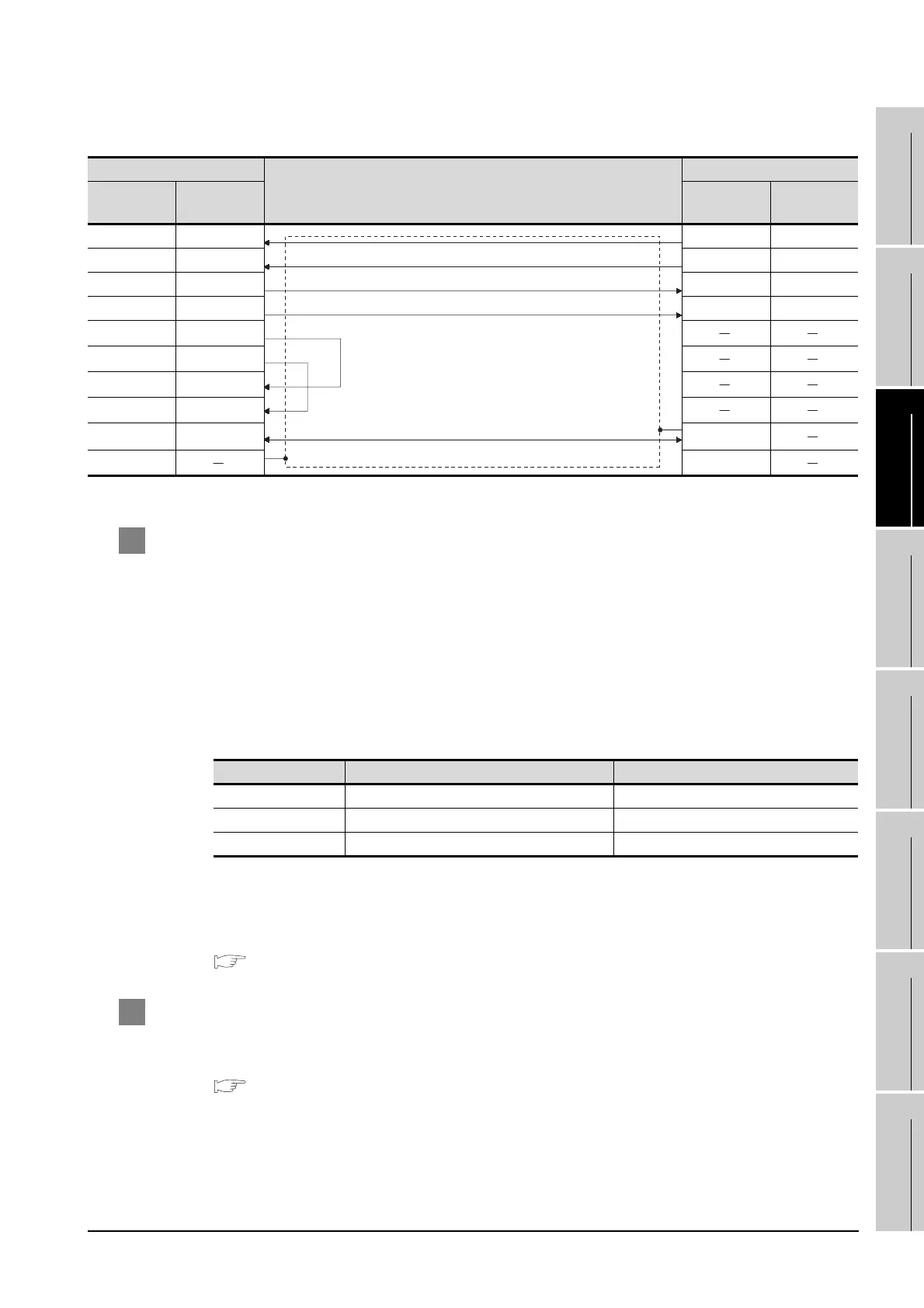

(3) RS-422 cable 3)
*1 Two SHIELD terminals are provided for JW-10CM and ZW-10CM. Connect to either SHIELD terminal.
2 Connector specifications
(1) GOT side connector
Use the following as the RS-422 interface and RS-422/485 communication unit connector on the
GOT.
For the GOT side of the RS-422 cable, use a connector and connector cover applicable to the GOT
connector.
(a) Connector type
9-pin D-sub (female)
(b) Connector model
(2) SHARP PLC side connector
Use the connector compatible with the SHARP PLC module.
For details, refer to the following manual.
User's Manual for the SHARP PLC
3 Precautions when preparing a cable
The maximum length of the RS-422 cable differs according to the specifications of the SHARP PLC.
For details, refer to the following manual.
User's Manual for the SHARP PLC
GOT side
Cable connection and signal direction
SHARP product side
Signal name Pin No.
Terminal block
name
Signal name
RDA 2 L1 SD(+)
RDB 7 L2 SD(-)
SDA 1 L3 RD(+)
SDB 6 L4 RD(-)
RSA 3
RSB 8
CSA 4
CSB 9
SG 5
SHIELD
*1
FG FG(GND)
GOT Model Manufacturer
RS-422 conversion unit 17LE-13090-27(D2AC) DDK Ltd.
GT11 17LE-13090-27(D3AC) DDK Ltd.
GT15-RS4-9S 17LE-13090-27(D3AC) DDK Ltd.
To Next Page
