12.1 System Configuration
12.1.1 Connecting to T2 (PU224), T2E, T2N, T3 or T3H

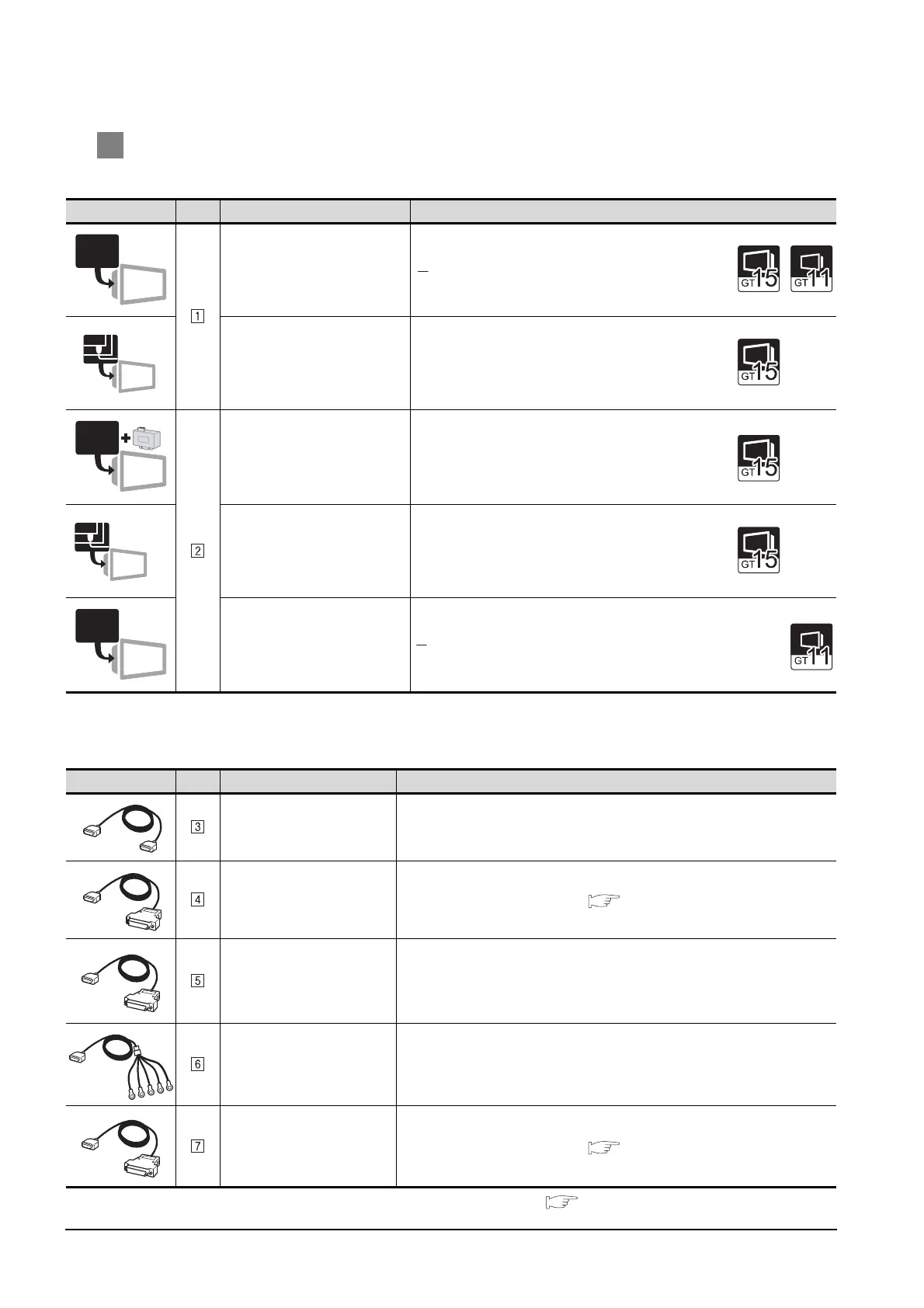

2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) Cable
*1 The RS-232 and RS-422 cable can be prepared by the user. ( Section 12.2 Connection Cable)
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
RS-232 cable 1)
*1
• Between CPU and GOT
GT09-C30R20501-9P (3m)
RS-232 cable 2)
*1
• Between CPU and GOT
(To be prepared by the user. Section 12.2 Connection Cable)
RS-422 cable 1)
*1
• Between CPU and GOT
GT09-C30R40501-15P (3m)
GT09-C100R40501-15P (10m)
GT09-C200R40501-15P (20m)
GT09-C300R40501-15P (30m)
RS-422 cable 2)
*1
• Between CPU and GOT
GT09-C30R40502-6C (3m)
GT09-C100R40502-6C (10m)
GT09-C200R40502-6C (20m)
GT09-C300R40502-6C (30m)
RS-422 cable 3)
*1
• Between CPU and GOT
(To be prepared by the user. Section 12.2 Connection Cable)
RS-232
RS-232
RS-232
RS-232
RS-422/485
RS-422/485
RS-422

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
