13.1 System Configuration

13.1.1 Connecting to large-sized H series

(3) Cable

*1 The RS-232 and RS-422 cable can be prepared by the user.( Section 13.2 Connection Cable)

*2 The connection diagram of the cable to be used varies according to the specified transmission speed.

(

Section 13.2 Connection Cable)

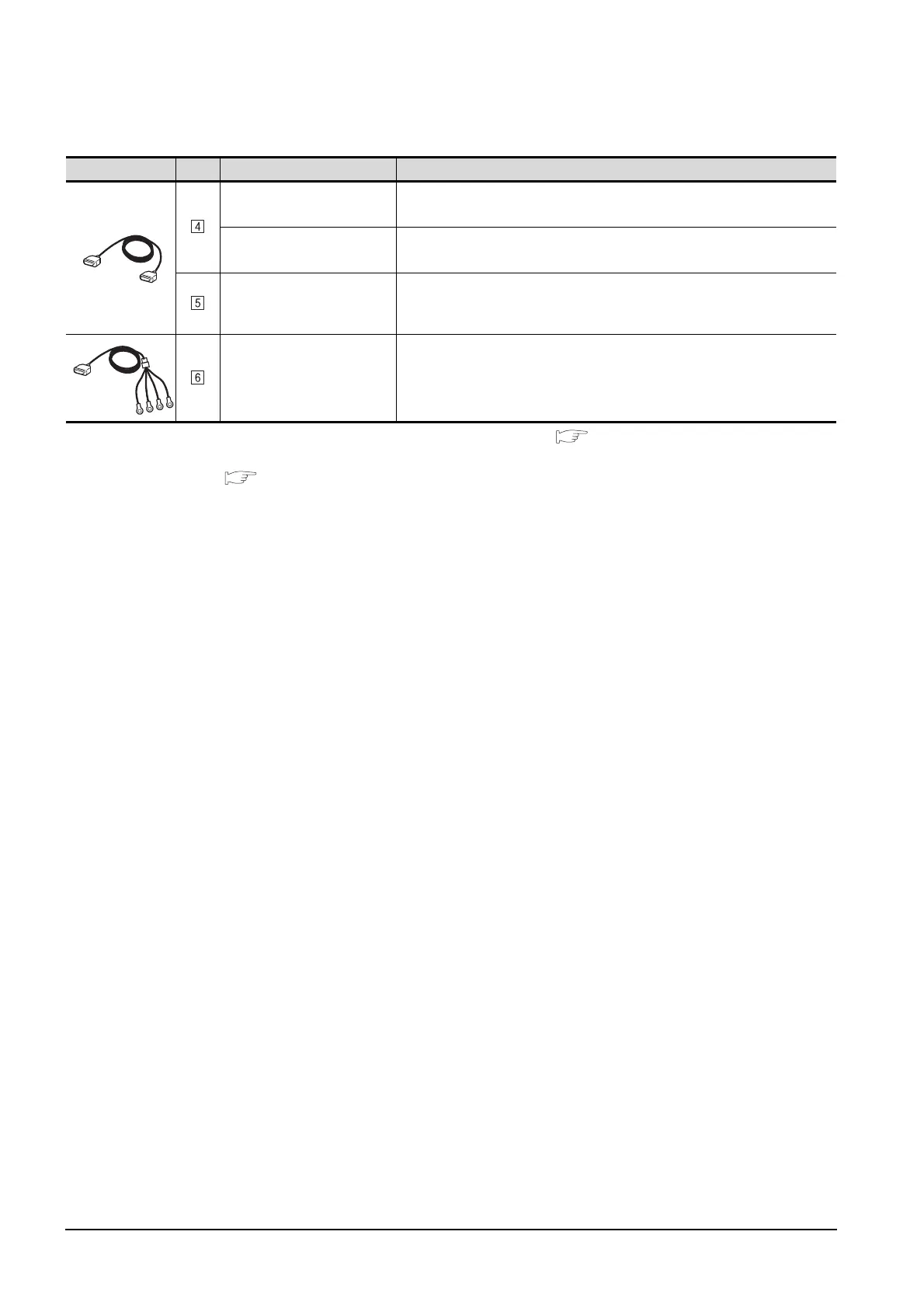

Image No. Name Model name

RS-232 cable 1)

*1*2

• Between CPU and GOT

GT09-C30R20401-15P(3m)

RS-232 cable 2)

*1*2

• Between CPU and GOT

GT09-C30R20402-15P(3m)

RS-232 cable 1)

• Between intelligent serial port

module and GOT

GT09-C30R20401-15P(3m)

RS-422 cable

• Between intelligent serial port

module and GOT

GT09-C30R40401-7T(3m)

GT09-C100R40401-7T(10m)

GT09-C200R40401-7T(20m)

GT09-C300R40401-7T(30m)
