14.1 System Configuration
14.1.4 Connecting to FP3
14 - 9
9
CONNECTION TO
OMRON PLC
10
CONNECTION TO
KEYENCE PLC
11
CONNECTION TO
SHARP PLC
12
CONNECTION TO
TOSHIBA PLC
13
CONNECTION TO
HITACHI PLC
14
CONNECTION TO
MATSUSHITAI PLC
15
CONNECTION TO
YASKAWA PLC
16
CONNECTION TO
YOKOGAWA PLC

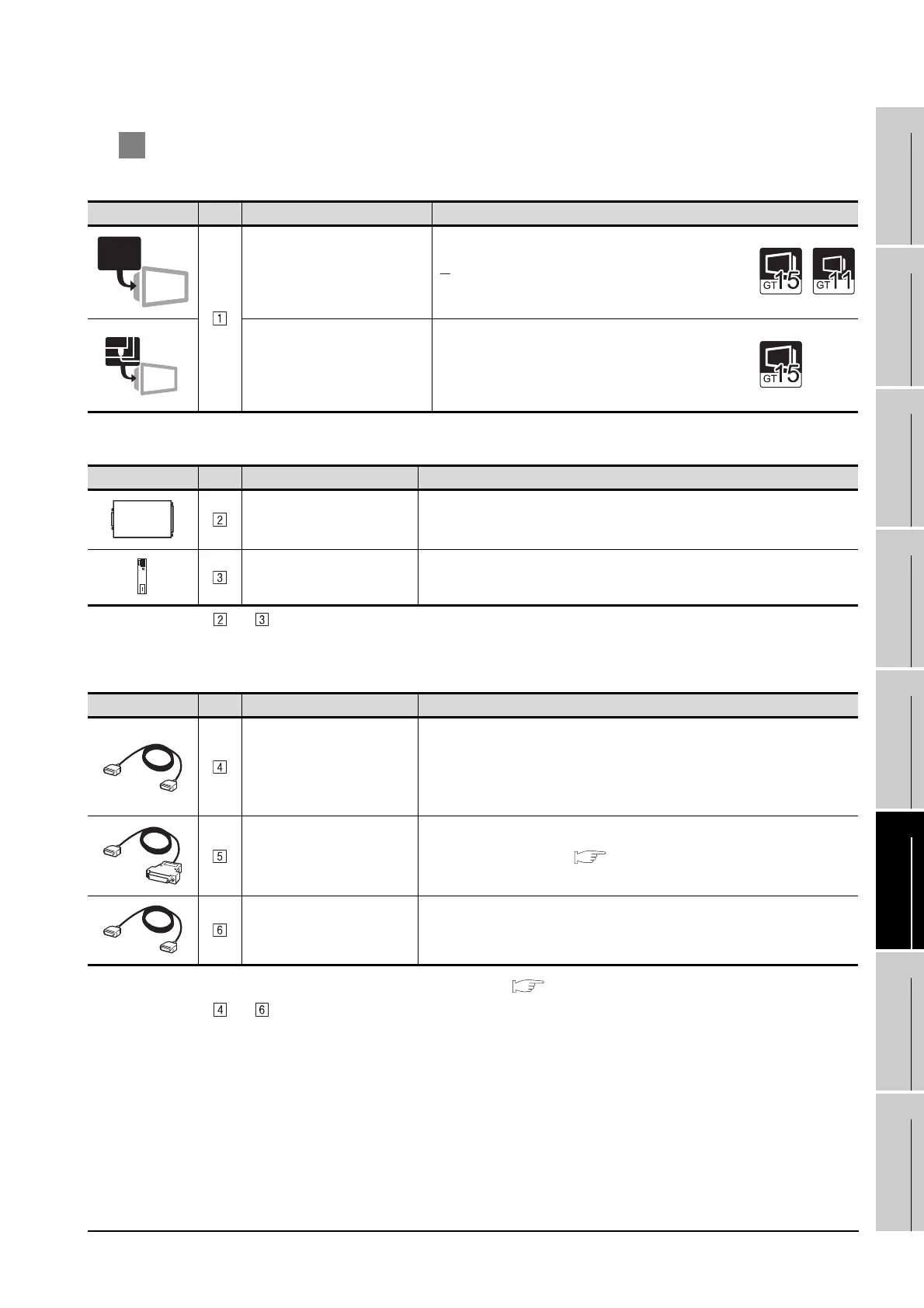

2 System equipment
(1) GOT
(2) PLC
and are products manufactured by Matsushita Electric works, Ltd. For details of these products, contact
Matsushita Electric works, Ltd.
(3) Cable
*1 The RS-232 cable can be prepared by the user. ( Section 14.2 Connection Cable)
and are products manufactured by Matsushita Electric works, Ltd. For details of these products, contact
Matsushita Electric works, Ltd.
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
Image No. Name Model name
RS422/232C conversion
adapter
AFP8550
computer communication unit AFP3462
Image No. Name Model name
FP peripheral device
connection cable
• Between tool port of PLC
CPU and RS422/232C
conversion adapter
AFP5520(0.5m)
RS-232 cable 1)
• Between RS422/232C
conversion adapter and GOT
(To be prepared by the user. Section 14.2 Connection Cable)
RS-232 cable 2)
*1
• Between computer
communication unit and GOT
AFB85853(3m)
GT09-C30R20902-9P(3m)
RS-232
RS-232
