Mitsubishi GOT1000 Series User Manual

14 - 18
14.1 System Configuration
14.1.9 Connecting to FP SIGMA
(2) PLC
, are products manufactured by Matsushita Electric works, Ltd. For details of these product, contact Matsushita
Electric work, Ltd.
(3) Cable
is a product manufactured by Matsushita Electric works, Ltd. For details of this product, contact Matsushita Electric
works, Ltd.

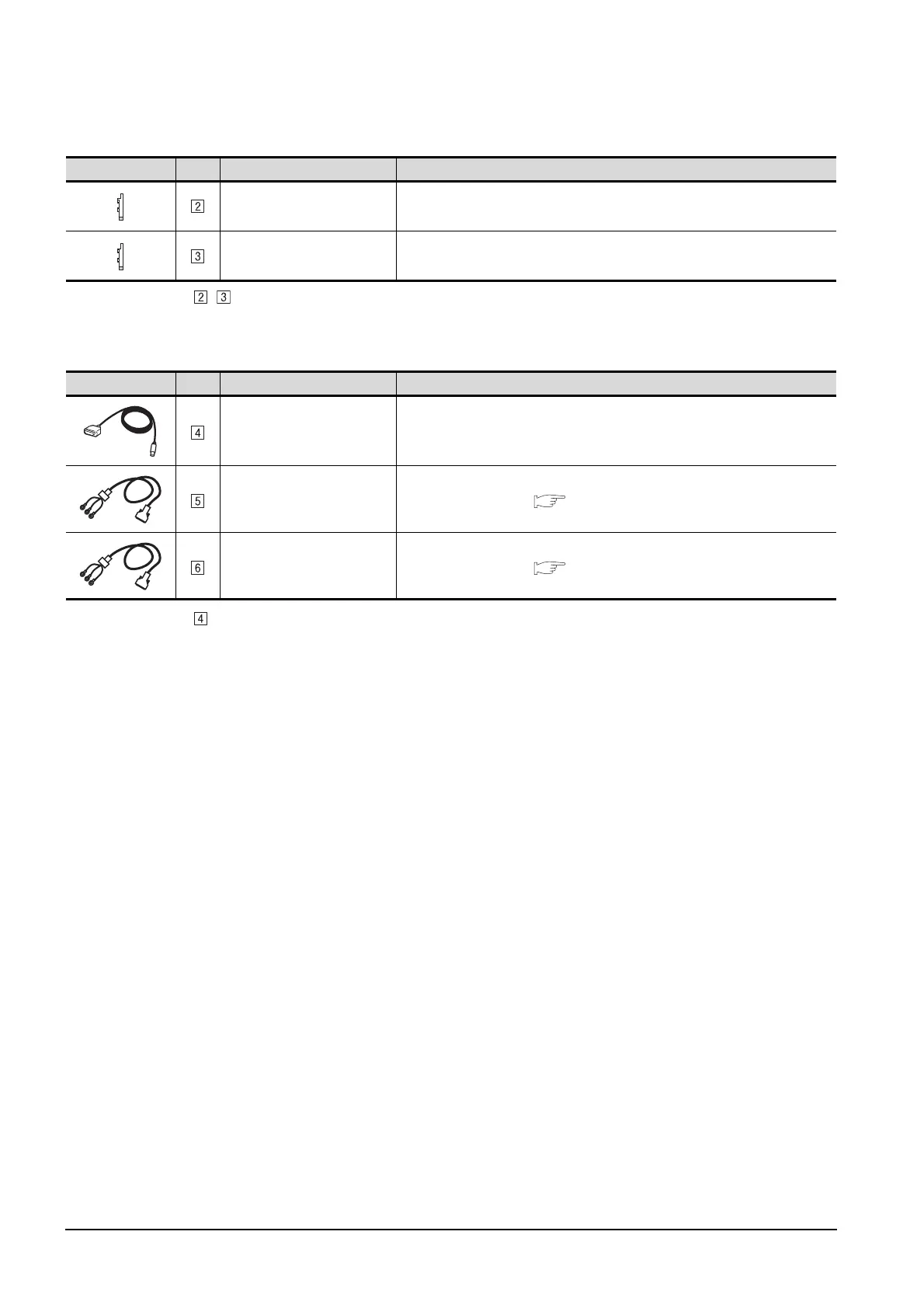

Image No. Name Model name
COM port AFPG801
COM port AFPG802
Image No. Name Model name
RS-232 cable
Between tool port of PLC CPU
and GOT
AFC8503(3m)
RS-232 cable 5)
Between COM port of PLC
CPU and GOT
(Prepared by the user. Section 14.2 Connection Cable)
RS-232 cable 6)
Between COM port of PLC
CPU and GOT
(Prepared by the user. Section 14.2 Connection Cable)

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
