14.2 Connection Cable
(3) RS-232 cable 3) (between RS232C port and GOT (for FP1))
*1 GT15 : CD, GT11 : NC
(4) RS-232 cable 4) (between RS232C port and GOT (for FP0))
*2 GT15 : CD, GT11 : NC

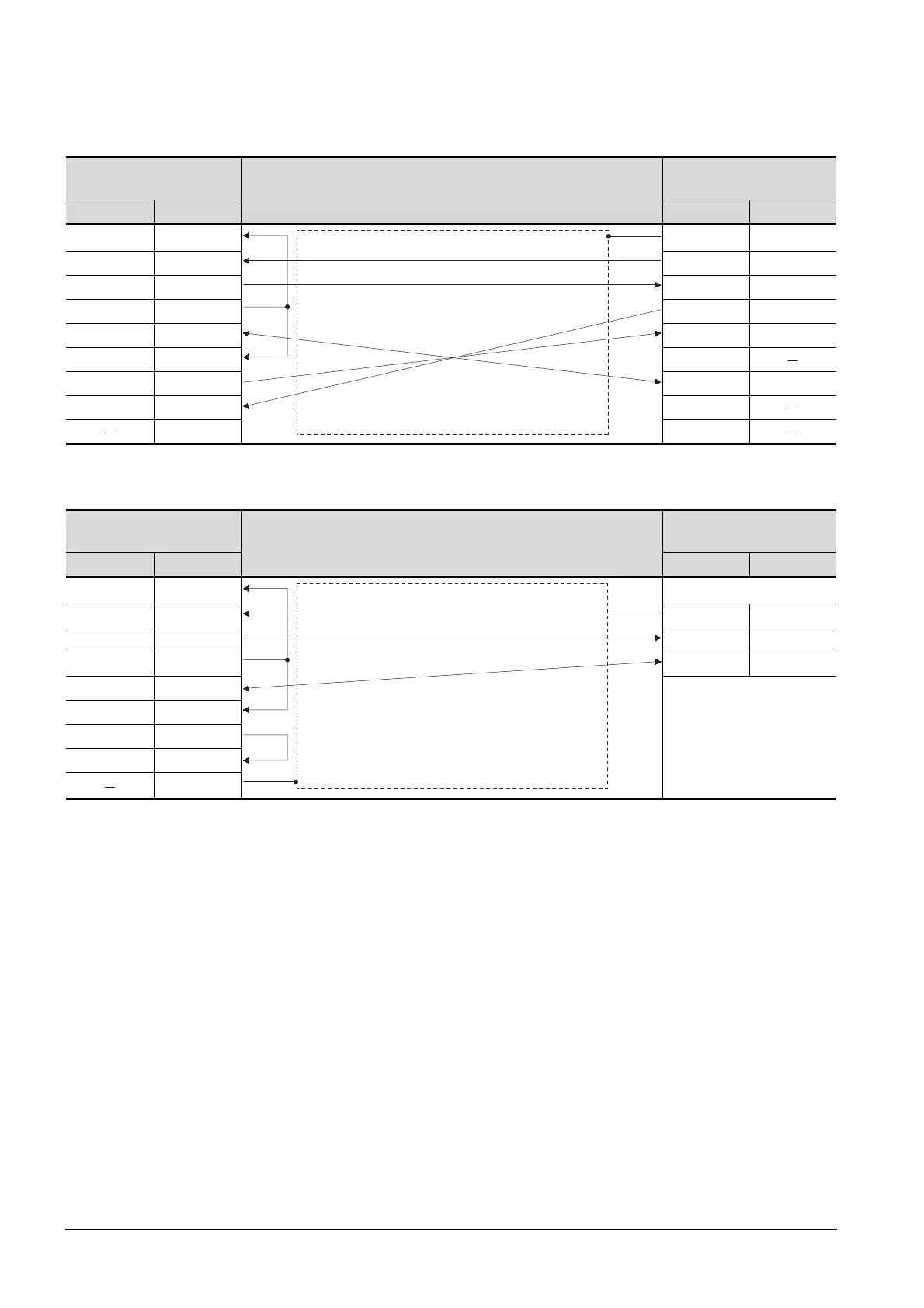

GOT side
Cable connection and signal direction
Matsushita Electric Works, Ltd.
product side
Signal name Pin No. Pin No. Signal name
CD/NC
*1
1 1FG
RD(RXD) 2 2SD
SD(TXD) 3 3RD
ER(DTR) 4 4RS
SG 5 5CS
DR(DSR) 6 6
RS(RTS) 7 7SG
CS(CTS) 8 8
9 9
GOT side
Cable connection and signal direction
Matsushita Electric Works, Ltd.
product side
Signal name Pin No. Pin No. Signal name
CD/NC
*2
1
RD(RXD) 2 SSD
SD(TXD) 3 RRD
ER(DTR) 4 GSG
SG 5
DR(DSR) 6
RS(RTS) 7
CS(CTS) 8
9
