15.1 System Configuration
15.1.1 Connecting to GL120, GL130
15.1 System Configuration
Select a system configuration suitable for your application.
Conventions used in this section
Numbers (e.g. ) of System configuration and connection conditions correspond
to the numbers (e.g. ) of System equipment.
Use these numbers as references when confirming models and applications.
15.1.1 Connecting to GL120, GL130

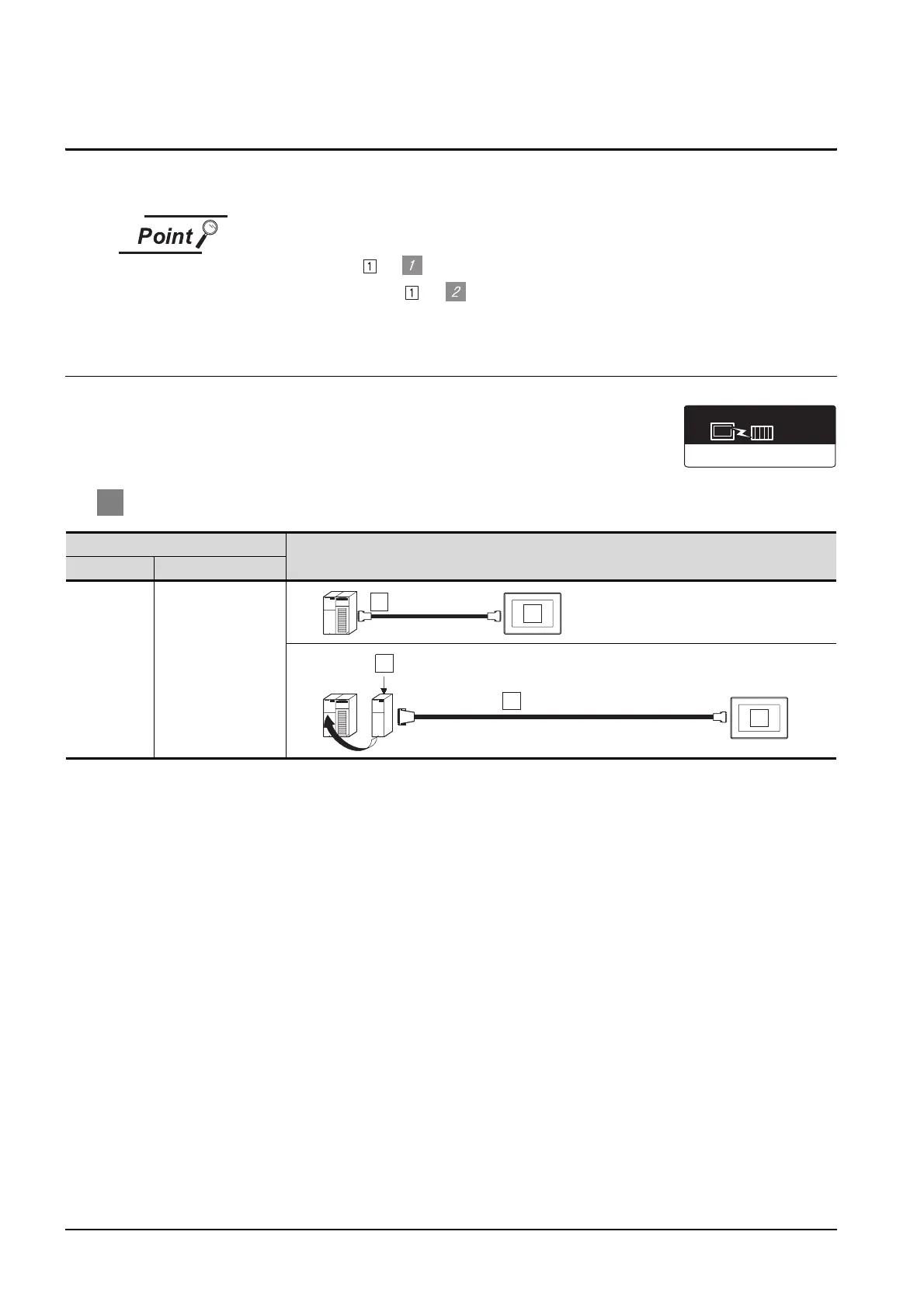

1 System configuration and connection conditions
Connection conditions
System configuration
No. of GOTs Distance
1
Differs according to
PLC side
specifications.
YASKAWA GL/CP9200(SH/H)/CP9300MS
Communication driver
RS-232 cable 1)
4
1
RS-422 cable 1)
5
MEMOBUS module
3
2

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
