Mitsubishi GOT1000 Series User Manual

16 - 6
16.1 System Configuration
16.1.2 Connecting to FA500

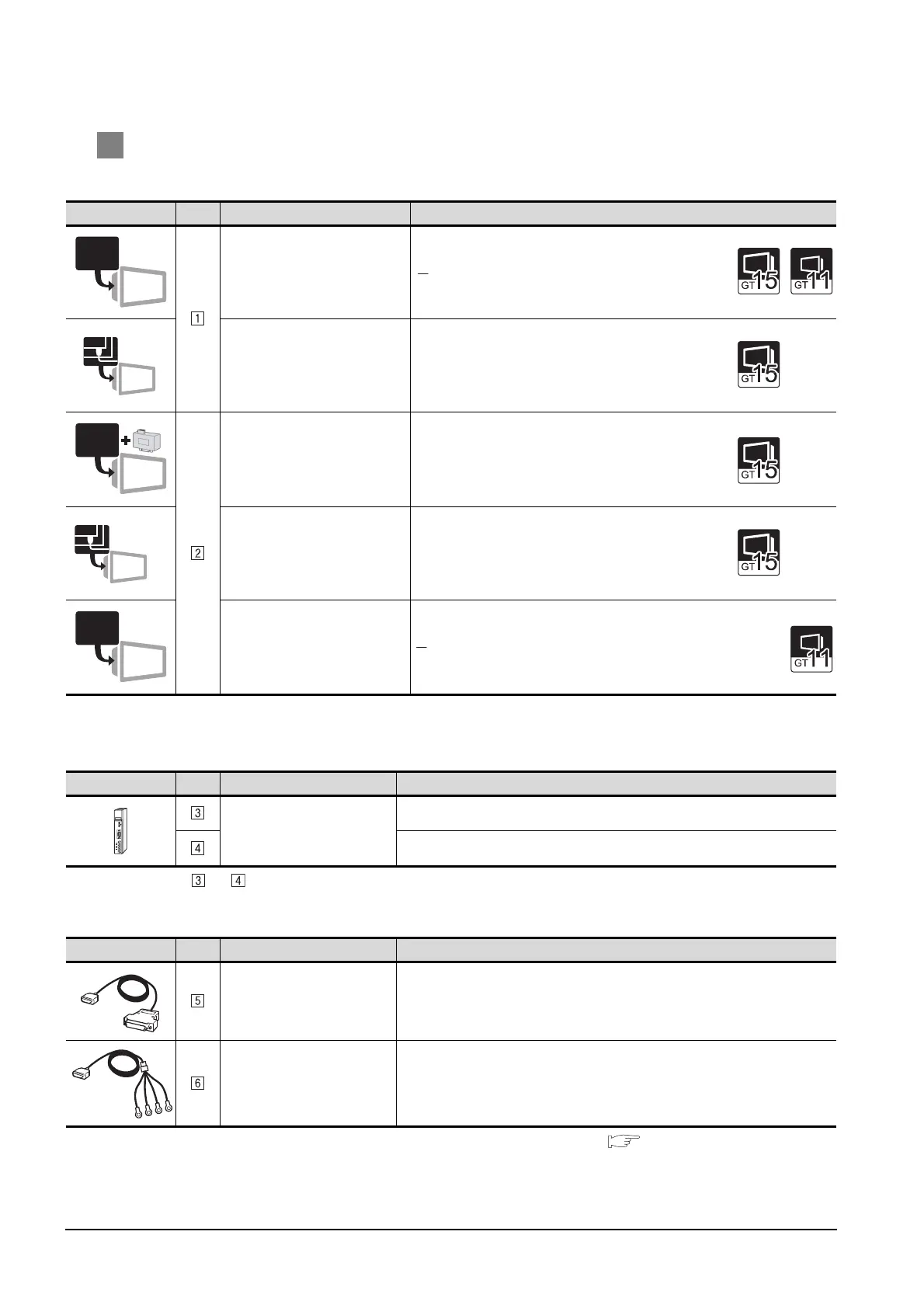

2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) PLC
and are products manufactured by YOKOGAWA. For details of these products, contact YOKOGAWA.
(3) Cable
*1 The RS-232 and RS-422 cable can be prepared by the user.( Section 16.2 Connection Cable)
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
PC link module
LC01-0N
LC02-0N
Image No. Name Model name
RS-232 cable 3)
*1
• Between PC link module and
GOT
GT09-C30R20205-25P(3m)
RS-422 cable 2)
*2
• Between PC link module and
GOT
GT09-C30R40302-6T(3m)
GT09-C100R40302-6T(10m)
GT09-C200R40302-6T(20m)
GT09-C300R40302-6T(30m)
RS-232
RS-232
RS-232
RS-232
RS-422/485
RS-422/485
RS-422
