17.3.5 Attaching communication unit and connecting cable
Cautions when attaching the communication unit and connecting the cable
Shut off all phases of the GOT power supply before attaching the communication
unit and connecting the cable.
1 Attaching the communication unit
Serial communication unit
For details on the serial communication unit, refer to the following manual:
GT15 Serial Communication Unit User's Manual
GT15-RS2, GT15-RS4, GT15-RS4-TE

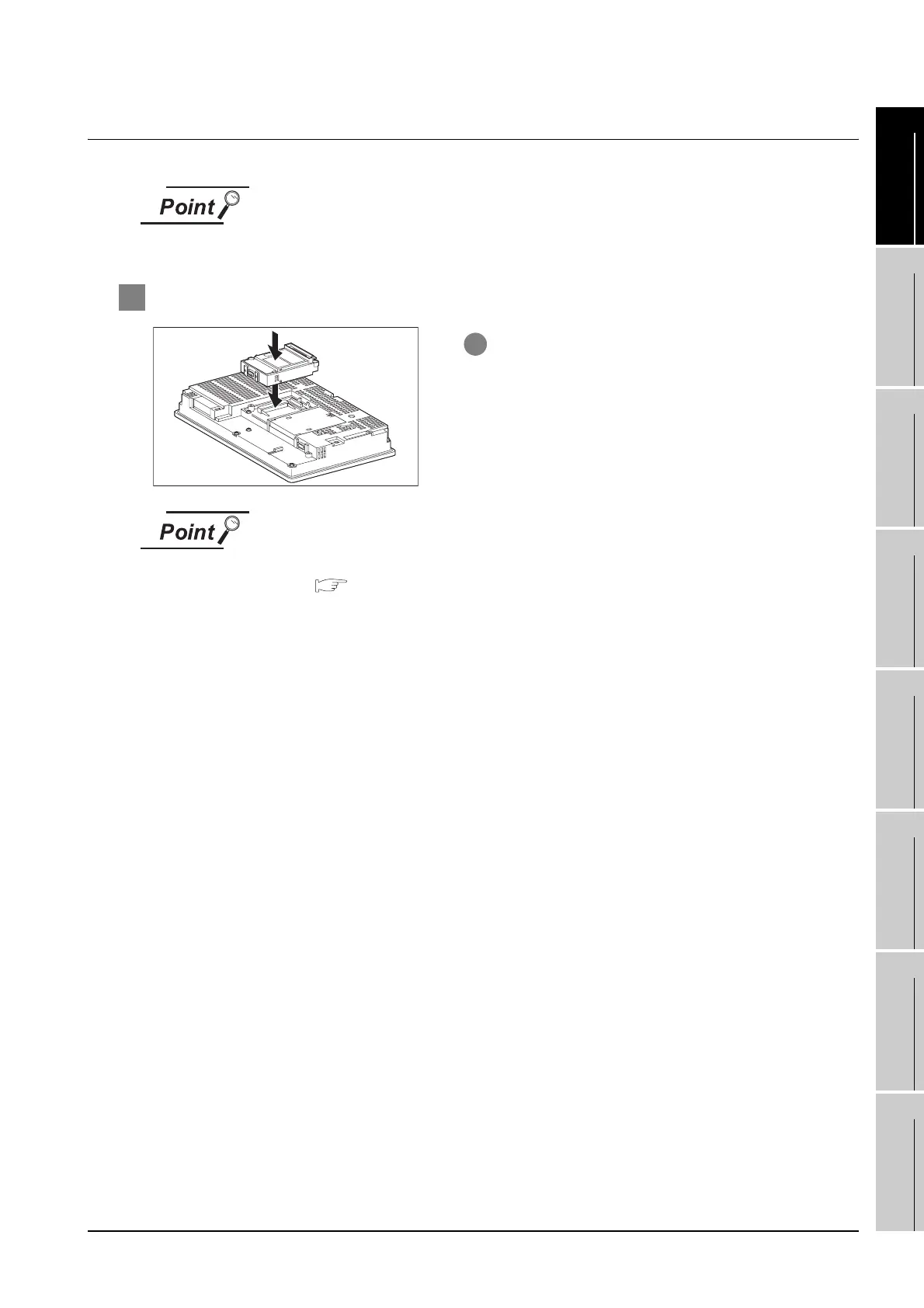

1 Attach the serial communication unit to the
extension unit connector on the GOT.

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
