Mitsubishi GOT1000 Series User Manual

18.1 System Configuration
18.1.1 Connecting to a SIMATIC S7-300/400 Series
18 - 3
17
CONNECTION TO ALLEN-BRADLEY PLC
18
CONNECTION TO SIEMENS PLC
19
MICROCOMPUTER CONNECTION
20
CONNECTION TO OMRON TEMPERATURE CONTROLLER
21
CONNECTION TO YAMATAKE TEMPERATURE CONTROLLER
22
CONNECTION TO RKC TEMPERATURE CONTROLLER
23
CONNECTION TO FREQROL SERIES INVERTER
24
SERVO AMPLIFIER CONNECTION

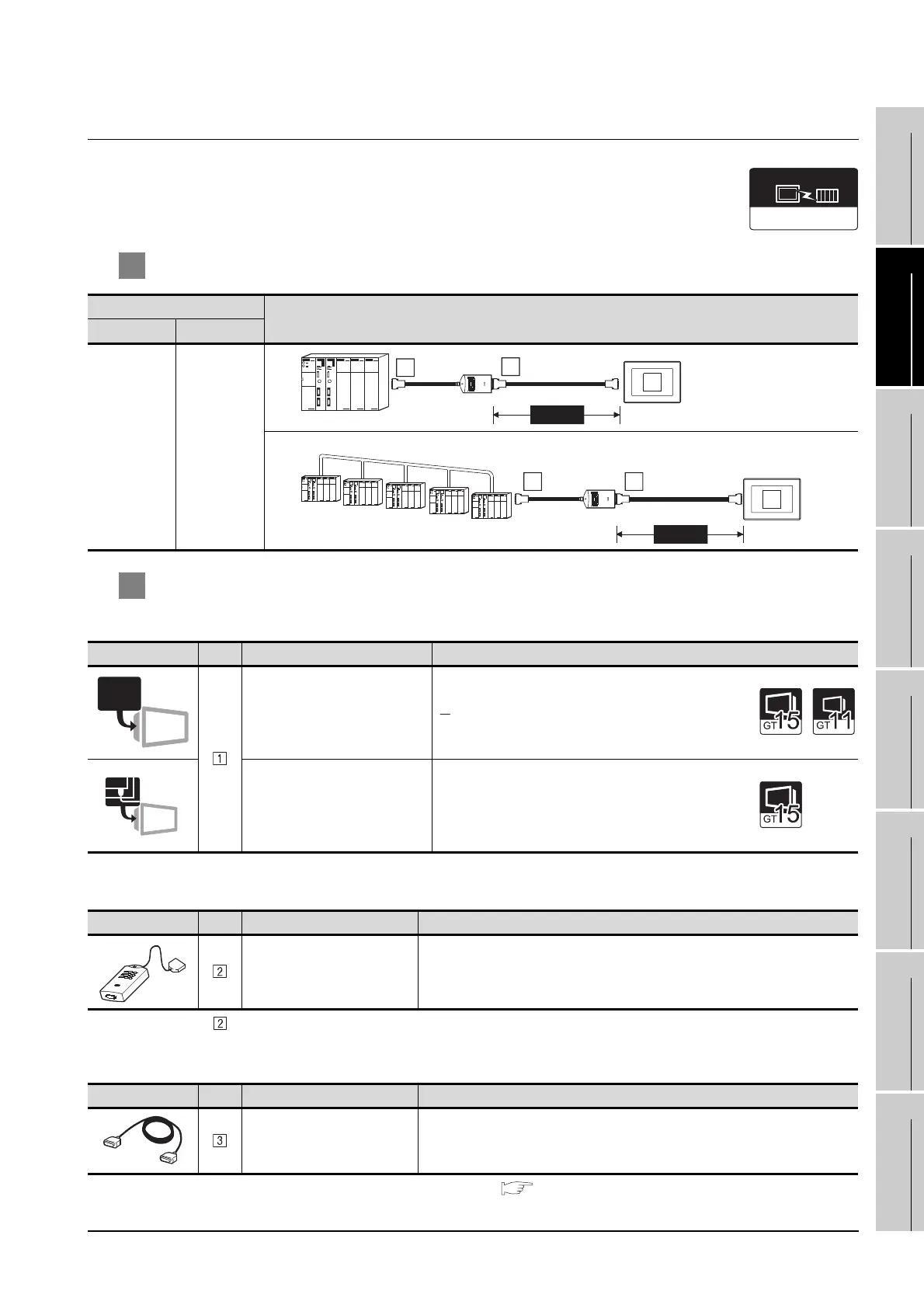

18.1.1 Connecting to a SIMATIC S7-300/400 Series
1 System configuration and connection conditions
2 System equipment
(1) GOT
(2) PLC
is a product manufactured by SIEMENS. For details of this product, contact SIEMENS.
(3) Cable
*1 The RS-232 cable can be prepared by the user. ( Section 18.2 Connection Cable)
Connection conditions
System configuration
No. of GOTs Distance
1 15m or less
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
Image No. Name Model name
HMI Adapter MLFB: 6ES7 972-0CA11-0XA0
Image No. Name Model name
RS-232 cable
• Between HMI Adapter and
GOT
GT09-C30R20801-9S(3m)
SIEMENS S7-300/400
Com municatio n driver
Adapter
2
RS-232 cable
3
MAX15m
1
PROFIBUS
Adapter
2
RS-232 cable
3
MAX15m
1
RS-232
RS-232
RS-232

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
