19.6 Preparatory Procedures for Monitoring
19.6.3 Setting communication interface (Communication settings)
19 - 77
17
CONNECTION TO
ALLEN-BRADLEY PLC
18
CONNECTION TO
SIEMENS PLC
19
MICROCOMPUTER
CONNECTION
20
CONNECTION TO OMRON
TEMPERATURE
CONTROLLER
21
CONNECTION TO
YAMATAKE TEMPERATURE
CONTROLLER
22
CONNECTION TO RKC
TEMPERATURE
CONTROLLER
23
CONNECTION TO
FREQROL SERIES
INVERTER
24
SERVO AMPLIFIER
CONNECTION

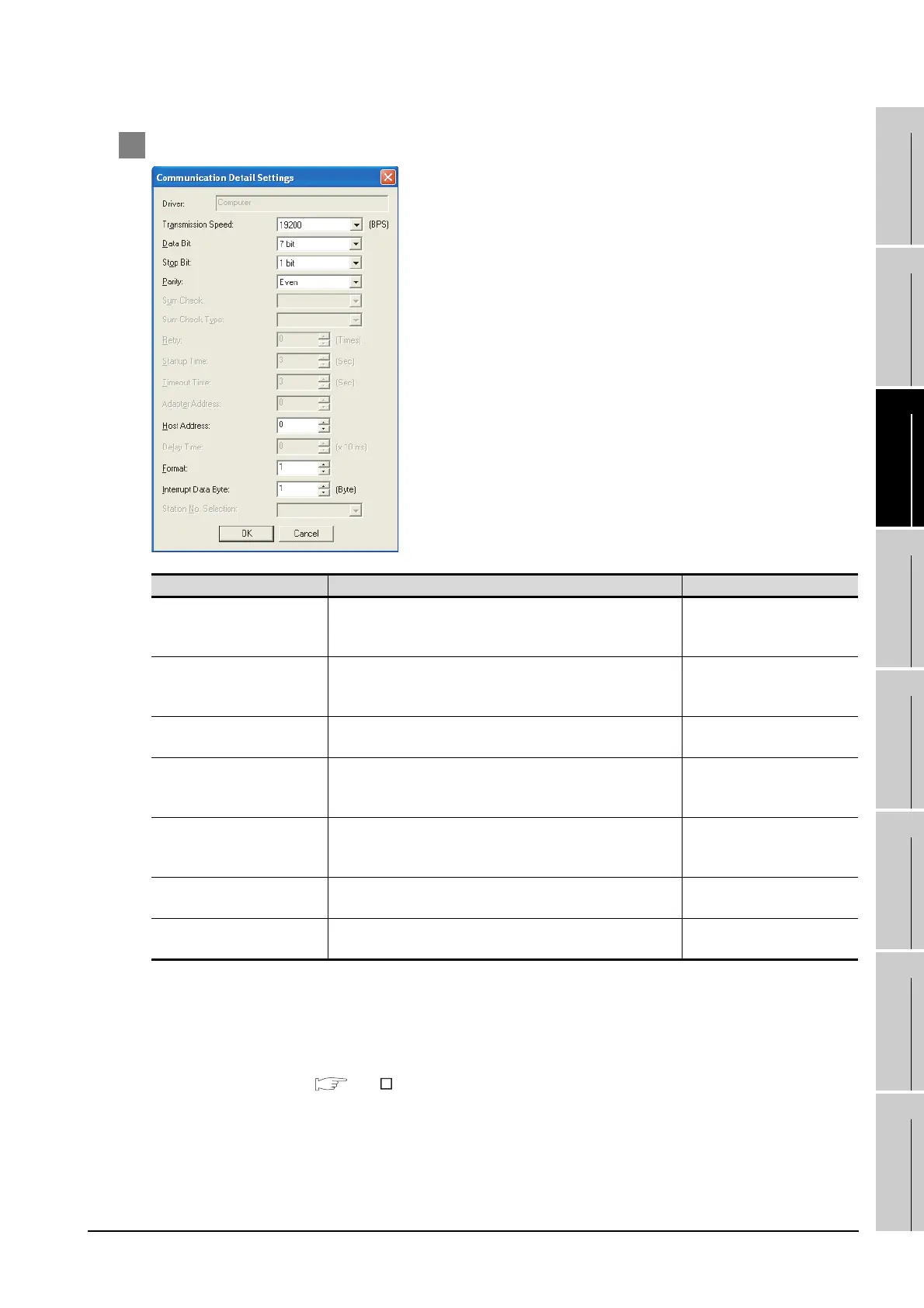

2 Communication detail settings
(1) Communication interface setting by Utility
The communication interface setting can be changed on the Utility's
"Communication setting" after downloading "Communication setting" of project
data.
For details on the Utility, refer to the following manual.
GT User's Manual
(2) Precedence in communication settings
When settings are made by GT Designer or the Utility, the latest setting is
effective.
(3)
Item Description Range
Transmission Speed
Set this item when change the transmission speed used for
communication with the connected equipment.
<Default: 19200bps>
4800bps, 9600bps,
19200bps, 38400bps,
57600bps, 115200bps
Data Bit
Set this item when change the data length used for communication
with the connected equipment.
<Default: 7bits>
7bits or 8bits
Stop Bit
Specify the stop bit length for communications.
<Default: 1bit>
1bit or 2 bits
Parity
Specify whether or not to perform a parity check, and how it is
performed during communication.
<Default: Even>
None
Even
Odd
Host Address
Specify the host address (station No. of the GOT to which the
microcomputer is connected) in the connected network.
<Default: 0>
0 to 31
Format
Select the communication format.
<Default: 1>
1 to 15
Interrupt Data Byte
Specify the number of bytes of interrupt data.
<Default: 1byte>
1byte, 2byte, 4byte
To Next Page
