20 - 30
20.4 Temperature Controller Side Setting
20.4.3 Connecting to interface converter (K3SC-10)

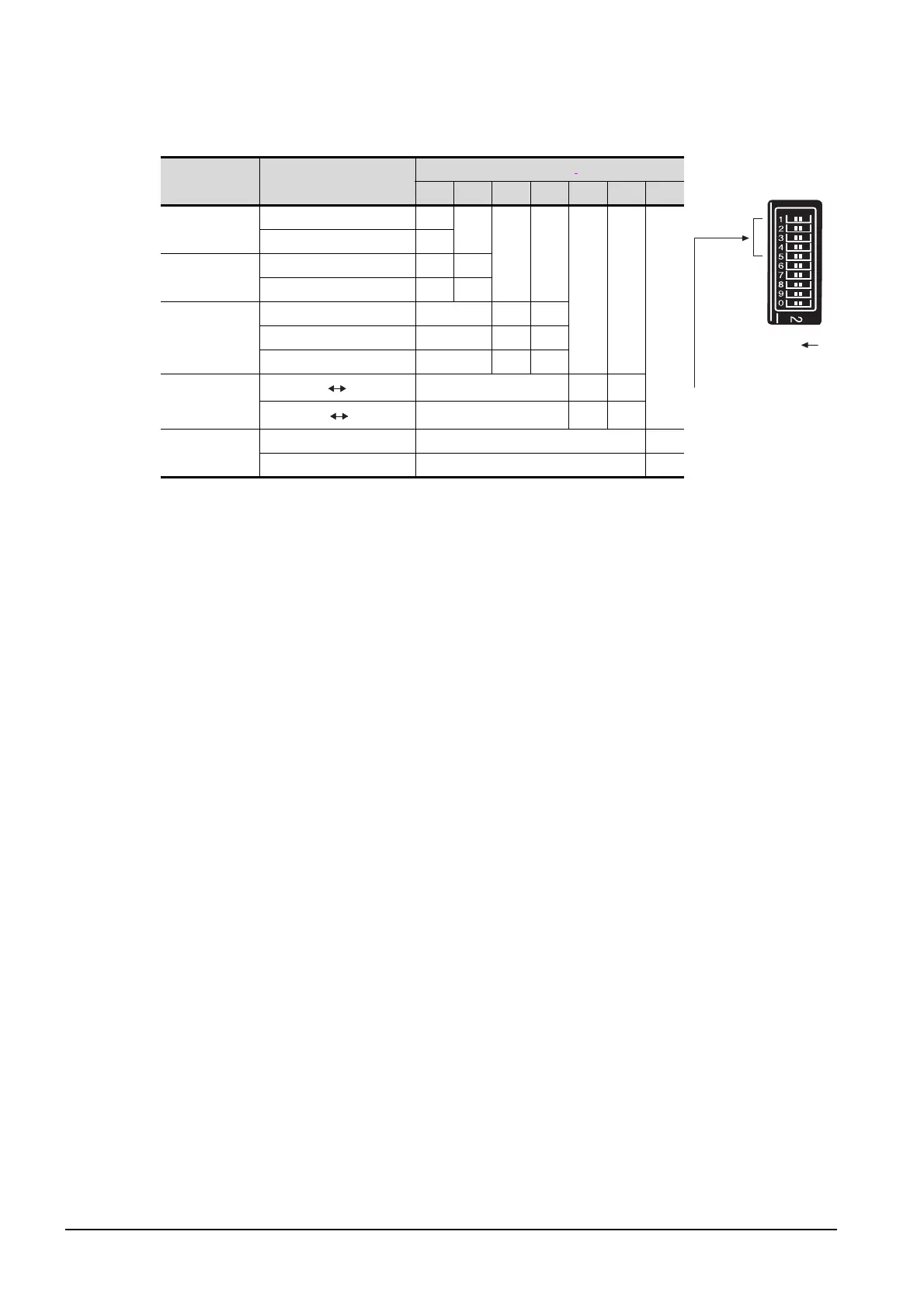

(2) Settings of data length, parity bit, stop bit, master/slave device and echoback
Setting item Set value
Switch No.
4 5 6 7 8 9 0
Data length
7bits 0FF
8bits ON
Stop bit
2bits 0FF
1bits ON
Parity
Even 0FF 0FF
Odd ON 0FF
None 0FF ON
Master/slave
device
RS232 RS422
0FF ON
RS-232 RS485
0FF 0FF
Echoback
Without 0FF
With ON
ON
SW
Set these switches.
