Mitsubishi GOT1000 Series User Manual

21 - 10
21.1 System Configuration
21.1.4 Connecting to SDC30/31

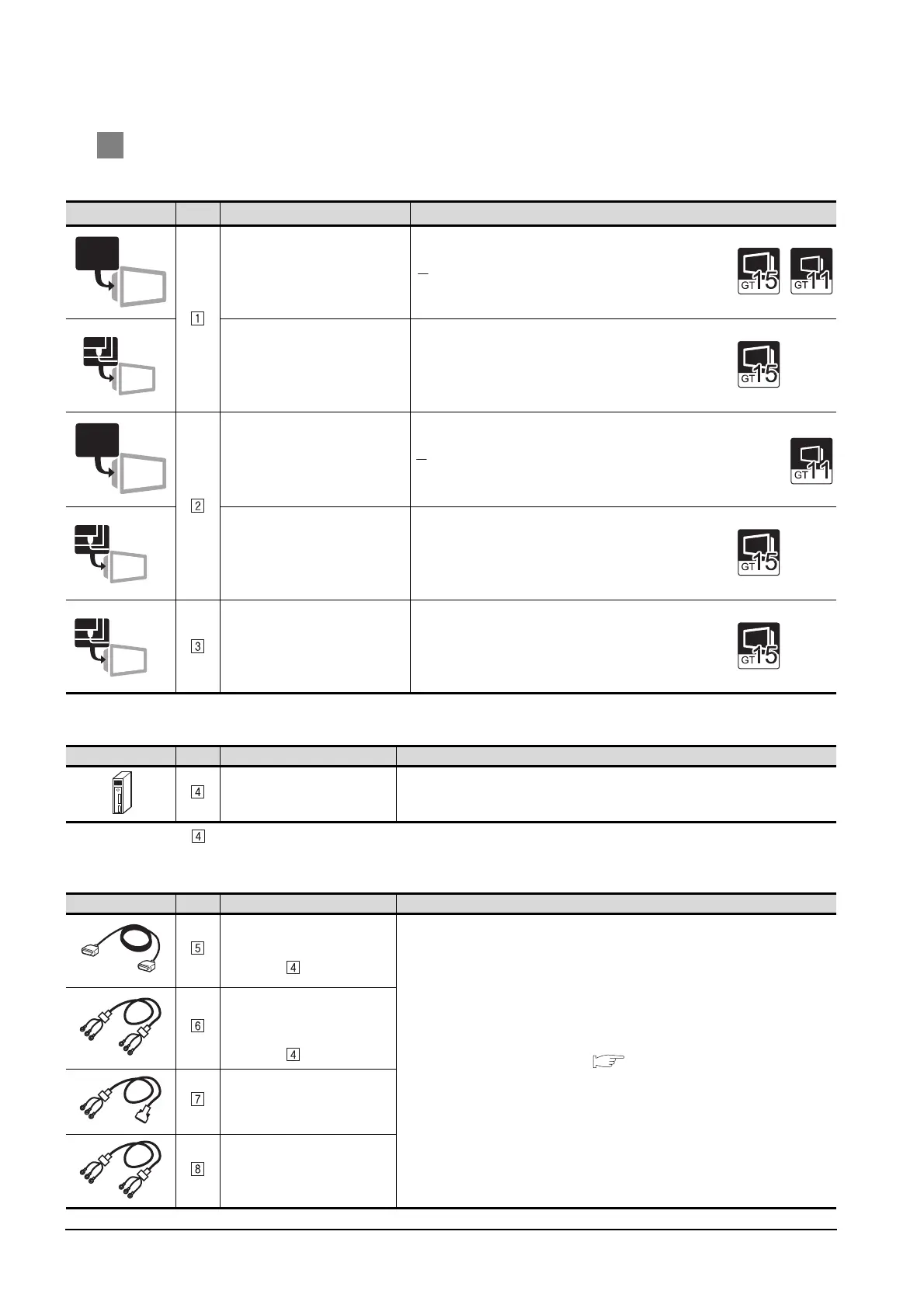

2 System equipment
(1) GOT
(2) Temperature controller
is a product manufactured by YAMATAKE. For details of this product, contact YAMATAKE.
(3) Cable
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 interface
• For RS-485 communication
(Built into GOT)
RS-422/485 Communication Unit
• For RS-485 communication
GT15-RS4-9S
RS-422/485 Communication Unit
• For RS-485 communication
GT15-RS4-TE
Image No. Name Model name
communication controller CMC10L
Image No. Name Model name
RS-232 cable 1)
• Between communication
controller r and GOT
(To be prepared by the user. Section 21.2 Connection Cable)
RS-485 cable 2)
• Between temperature
controller and communication
controller
RS-485 cable 4)
• Between temperature
controller and GOT
RS-485 cable 5)
• Between temperature
controller and GOT
RS-232
RS-232
RS-232
RS-422
RS-422/485
RS-422/485
RS-422/485
RS-422/485

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
