Mitsubishi GOT1000 Series User Manual

21.3 Preparatory Procedures for Monitoring
21.3.5 Attaching communication unit and connecting cable
21 - 33
17
CONNECTION TO ALLEN-BRADLEY PLC
18
CONNECTION TO SIEMENS PLC
19
MICROCOMPUTER CONNECTION
20
CONNECTION TO OMRON TEMPERATURE CONTROLLER
21
CONNECTION TO YAMATAKE TEMPERATURE CONTROLLER
22
CONNECTION TO RKC TEMPERATURE CONTROLLER
23
CONNECTION TO FREQROL SERIES INVERTER
24
SERVO AMPLIFIER CONNECTION

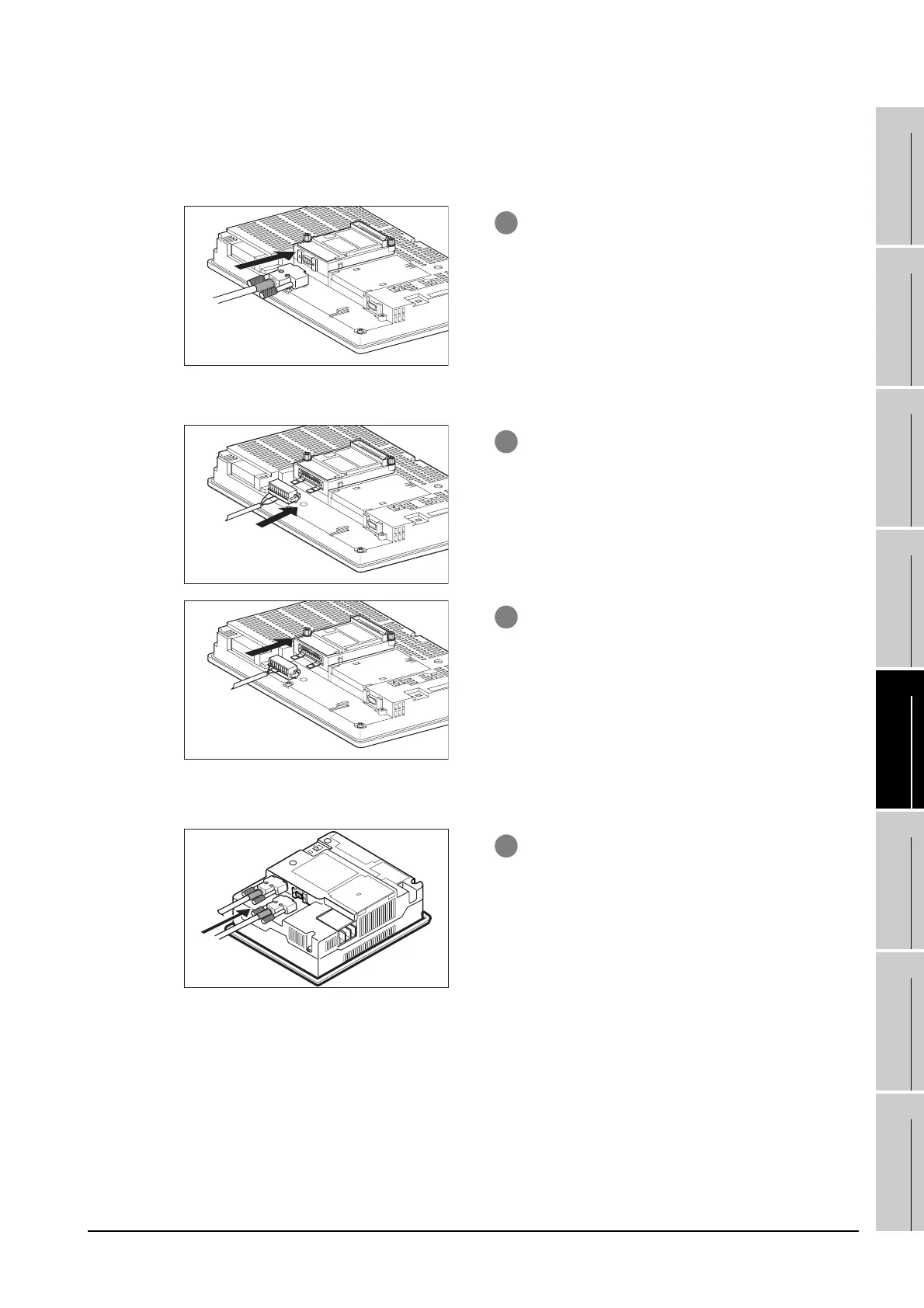

(2) How to connect the RS-485 cable
(a) For the GT15
•Connection to the RS-422/485 communication unit (model:GT15-RS4-9P)
•Connection to the RS-422/485 communication unit (model:GT15-RS4-9E)
(b) For the GT11
1 Connect the RS-485 cable to the RS-422/485
communication unit on the GOT.
1 Connect the RS-485 cable to the terminal block
enclosed by the RS-422/485 communication
unit.
2 Connect the terminal block to the RS-422/485
communication unit on the GOT.
1 Connect the RS-485 cable to the RS-422
interface on the GOT.

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
