22.4 Temperature Controller Side Setting
22.4.3 Station No. settings
22 - 37
17
CONNECTION TO
ALLEN-BRADLEY PLC
18
CONNECTION TO
SIEMENS PLC
19
MICROCOMPUTER
CONNECTION
20
CONNECTION TO OMRON
TEMPERATURE
CONTROLLER
21
CONNECTION TO
YAMATAKE TEMPERATURE
CONTROLLER
22
CONNECTION TO RKC
TEMPERATURE
CONTROLLER
23
CONNECTION TO
FREQROL SERIES
INVERTER
24
SERVO AMPLIFIER
CONNECTION

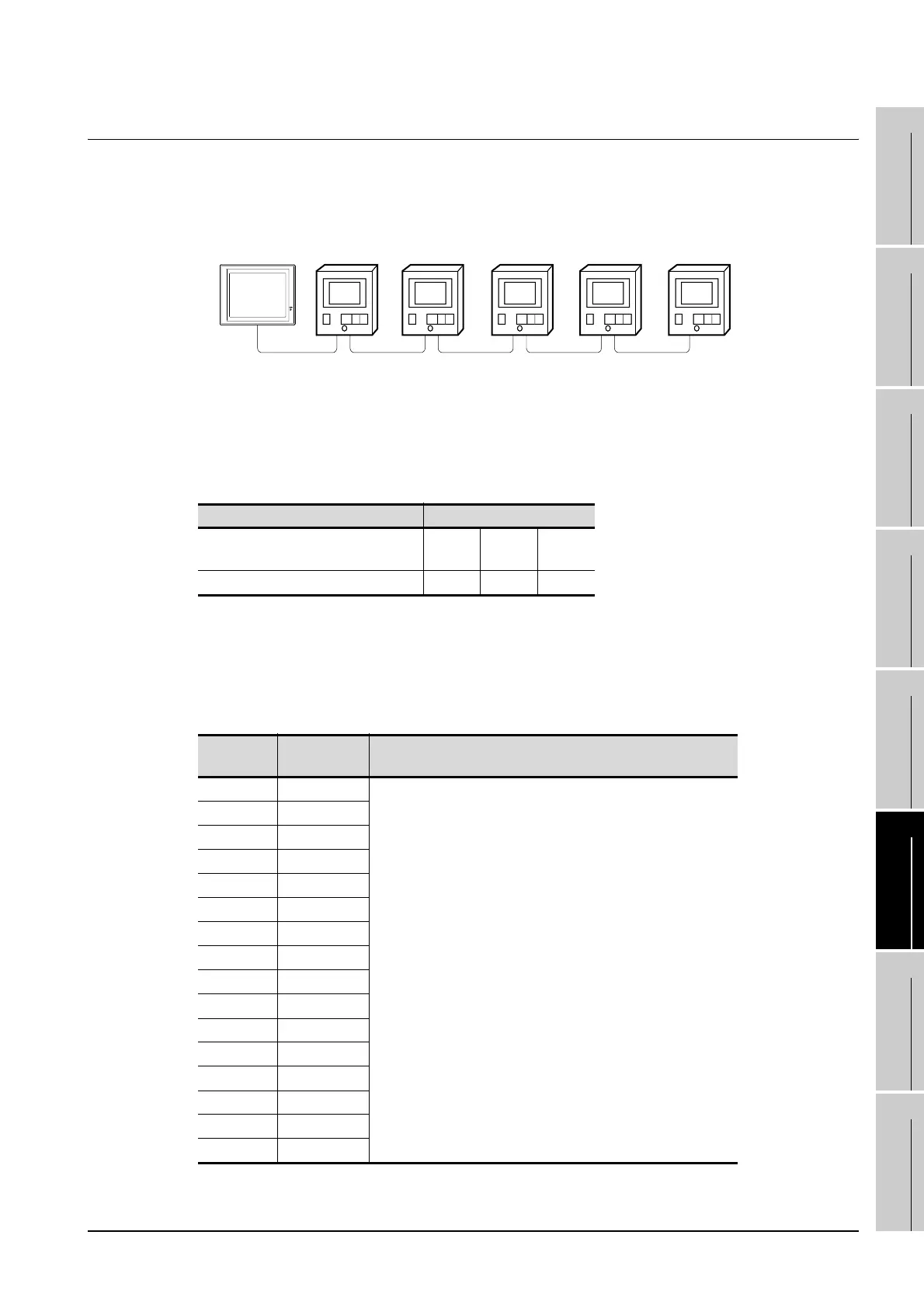

22.4.3 Station No. settings
Set each station number while making sure that one station number is used only once.
The station number can be set without regard to the cable connection order. No problem is expected even if
station numbers are not consecutive.
(1) Direct specification
The station number setting range of the temperature controller side differs from that of the GOT
side. Specify the station No. of the temperature controller to be changed when setting devices
referring the following table.
(2) Indirect specification
When setting the device, indirectly specify the station number of the inverter of which data is to be
changed using the 16-bit GOT internal data register (GD10 to GD25).
When specifying the station No. from 100 to 155 on GT Designer2, the value of GD10 to GD25
compatible to the station No. specification will be the station No. of the temperature controller.
Å
Specification range
Unit address setting of temperature
controller side
01 to EF
Station No. setting of GOT side. 1 2 to 15 16
Specification
station NO.
Compatible
device
Setting range
100 GD10
1 to 16
For the setting other than the above, communication timeout error will
occur.
101 GD11
102 GD12
103 GD13
104 GD14
105 GD15
106 GD16
107 GD17
108 GD18
109 GD19
110 GD20
111 GD21
112 GD22
113 GD23
114 GD24
115 GD25
GOT
Station No.0Station No.3 Station No.1 Station No.15 Station No.6
Examples of station number setting
