23.3 Preparatory Procedures for Monitoring
23.3.3 Setting communication interface (Communication settings)
23 - 19
17
CONNECTION TO
ALLEN-BRADLEY PLC
18
CONNECTION TO
SIEMENS PLC
19
MICROCOMPUTER
CONNECTION
20
CONNECTION TO OMRON
TEMPERATURE
CONTROLLER
21
CONNECTION TO
YAMATAKE TEMPERATURE
CONTROLLER
22
CONNECTION TO RKC
TEMPERATURE
CONTROLLER
23
CONNECTION TO
FREQROL SERIES
INVERTER
24
SERVO AMPLIFIER
CONNECTION

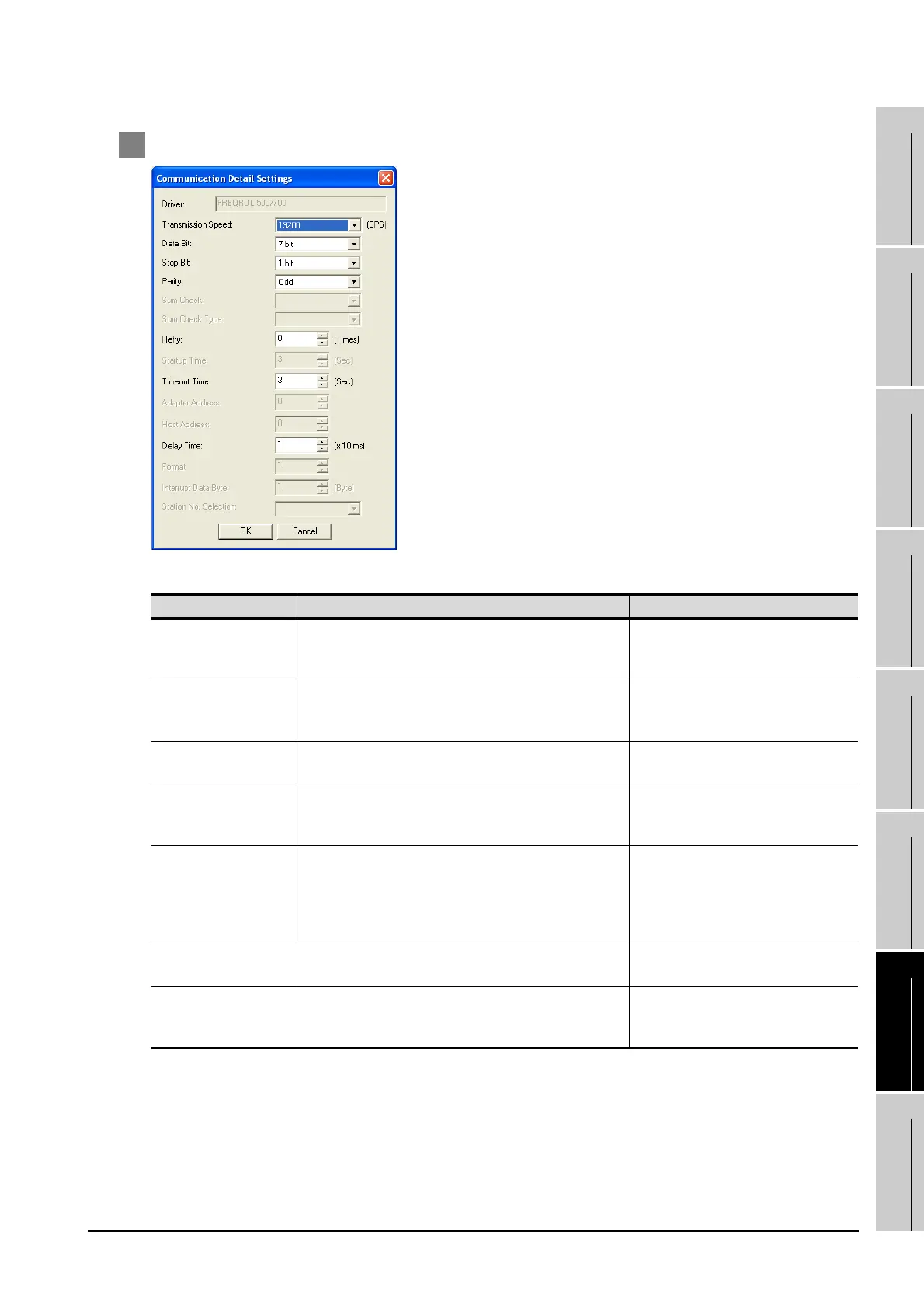

2 Communication detail settings
Item Description Range
Transmission Speed
Set this item when change the transmission speed used for
communication with the connected equipment.
<Default: 19200bps>
9600bps,19200bps, 38400bps, 57600bps,
115200bps
Data Bit
Set this item when change the data length used for communi-
cation with the connected equipment.
<Default: 7bit>
7bit/8bit
Stop Bit
Specify the stop bit length for communications.
<Default: 1bit>
1bit/2bit
Parity
Specify whether or not to perform a parity check, and how it is
performed during communication.
<Default: Odd>
None
Even
Odd
Retry
Set the number of retries to be performed when a
communication error occurs.
When receiving no response after retries, the communication
times out.
<Default: 0 Times>
0 to 5 Times
Timeout Time
Set the time period for a communication to time out.
<Default: 3 Sec>
3 to 30 Sec
Delay Time
Set this item to adjust the transmission timing of the
communication request from the GOT.
<Default: 10ms>
0 to 300 ms
To Next Page
