23.3 Preparatory Procedures for Monitoring

23.3.7 Checking for normal monitoring

2 Perform an I/O check

Whether the inverter can communicate with the GOT or not can be checked by the I/O check function.

If this check ends successfully, it means correct communication interface settings and proper cable

connection.

Display the I/O check screen by [Main Menu] [Debug & self check] [Self check] [I/O check].

For details on the I/O check, refer to the following manual:

GT User's Manual

Error display

The error information of the inverter side cannot be displayed on the system alarm.

3 Confirming the inverter side setting

When connecting the GOT, setting is required for the inverter side.

Confirm if the inverter side setting is correct.

Section 23.4 FREQROL Series Inverter Side Settings

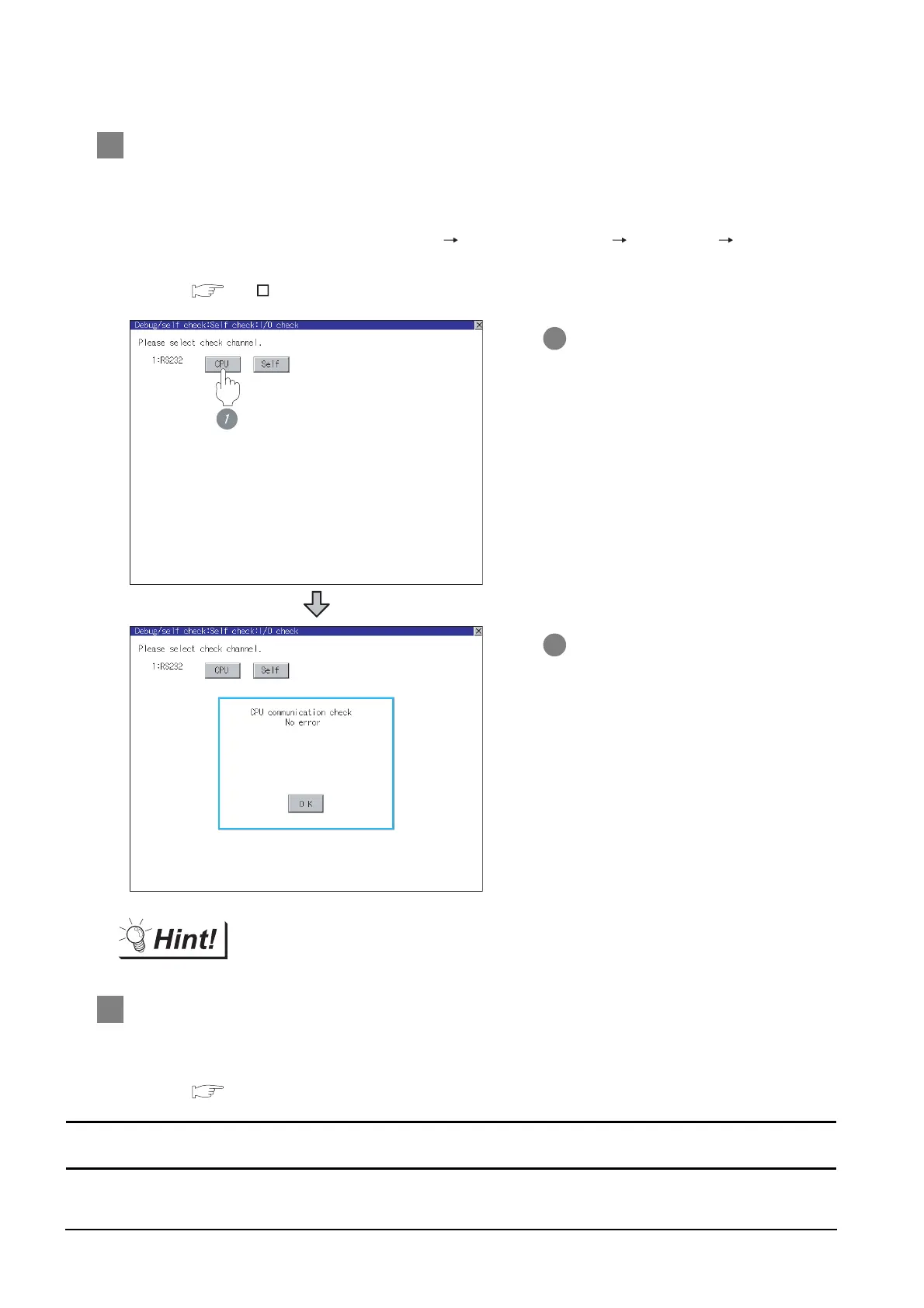

1 Touch [CPU] on the I/O check screen.

Touching [CPU] executes the

communication check with the

connected inverter.

2 When the communication screen

ends successfully, the screen on the

left is displayed.

All settings related to communications are complete now.

Create screens on GT Designer2 and download the project data again.
