24.3 Preparatory Procedures for Monitoring
24.3.5 Attaching communication unit and connecting cable
24 - 23
17
CONNECTION TO
ALLEN-BRADLEY PLC
18
CONNECTION TO
SIEMENS PLC
19
MICROCOMPUTER
CONNECTION
20
CONNECTION TO OMRON
TEMPERATURE
CONTROLLER
21
CONNECTION TO
YAMATAKE TEMPERATURE
CONTROLLER
22
CONNECTION TO RKC
TEMPERATURE
CONTROLLER
23
CONNECTION TO
FREQROL SERIES
INVERTER
24
SERVO AMPLIFIER
CONNECTION
When using the RS-422 conversion unit
On "Communication settings" on the utility, make setting so that 5V DC power is
supplied to the RS-422 conversion unit from the RS-232 interface on the GOT.
For details on the utility, refer to the following manual:
GT User's Manual
(b) In the case of the GT11

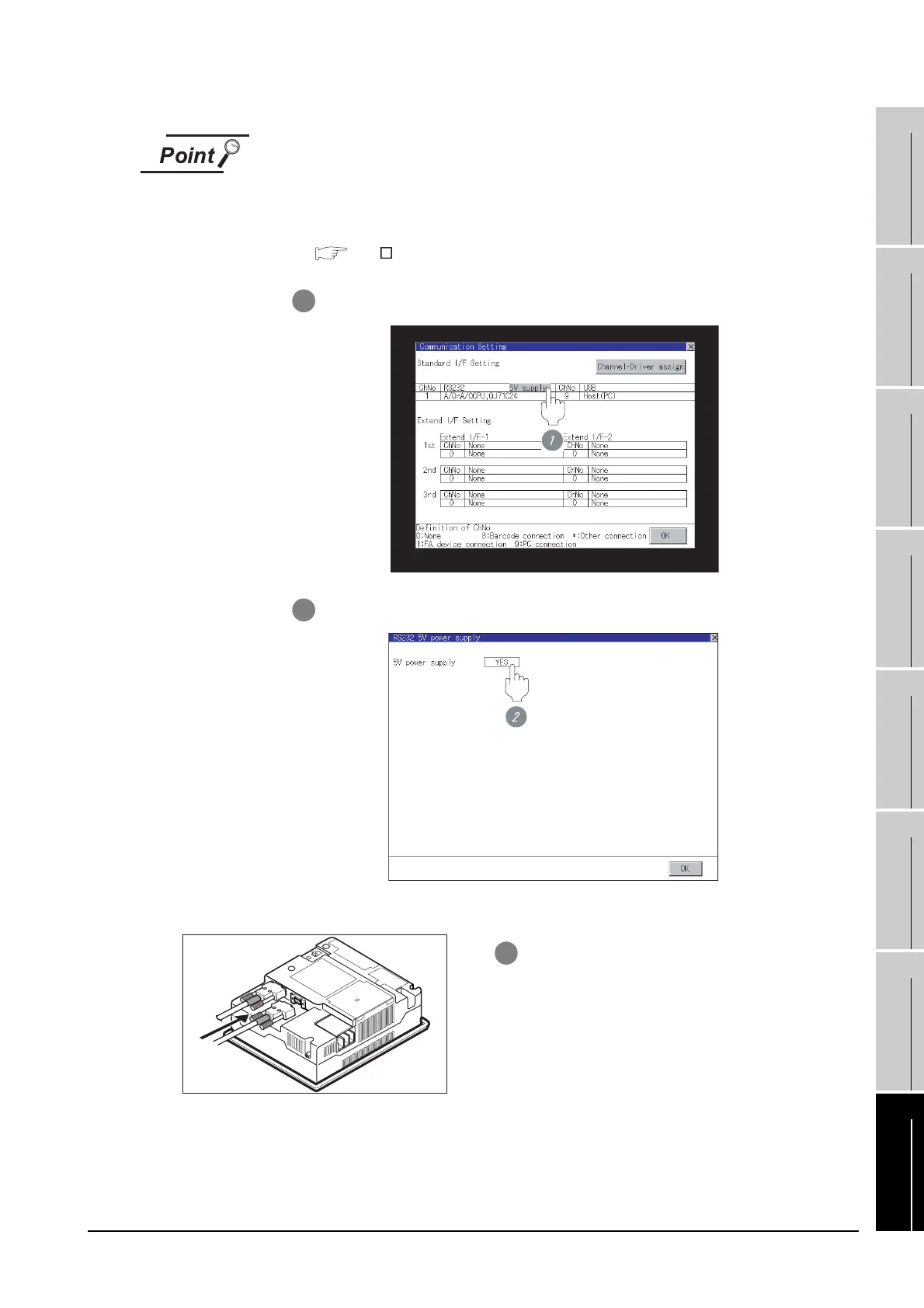

1 Touch [5V supply].
2 Set [5V power supply] to "YES".
1 Connect the RS-422 cable to the RS-422
interface on the GOT.
