6 System Commissioning and Functions
- 161 -
6
◆
Supplementary Method (Old Method of NICE3000)
This method is the old one used in the NICE3000. The NICE3000
new
is compatible with this old method.
1. Method description
Table 6-13 Parameter setting of old opposite door control method
Type Door Control Mode
Parameter Setting
Service
Floor
HCB
Address
Setting
Operation Box CCB
Wiring
Mode
Selection
Other
Parameters
Mode 1
Simultaneous
control
FC-04 = 0
Fb-00 = 2,
FE-33 Bit15 = 1
15
HCB
address of
front door:
1–15
HCB
address of
back door:
17–31
The CCB of front door
is connected to CN7 on
the CTB.
The CCB of back door
is connected to CN8 on
the CTB.
Mode 2
Hall call
independent, car
call simultaneous
FC-04 = 1 Same as mode 1 15
Mode 3
Hall call
independent, car
call manual control
FC-04 = 2
F6-40 Bit4 = 1
Same as mode 1 15
Mode 4
Hall call
independent, car
call independent
FC-04 = 3 Same as mode 1 15
The CCB of front door
is connected to CN7 on
the CTB.
The CCB of back door
is connected to the
CCB of front door in
cascade.
In mode 3, the car door to open is selected by the control switch in the car. The control switch is connected to JP16
on the CCB. When JP16 is ON, only the front door opens; when JP16 is OFF, only the back door opens.
2. CCB wiring
The following gures show the CCB wiring of modes 1, 2, and 3.

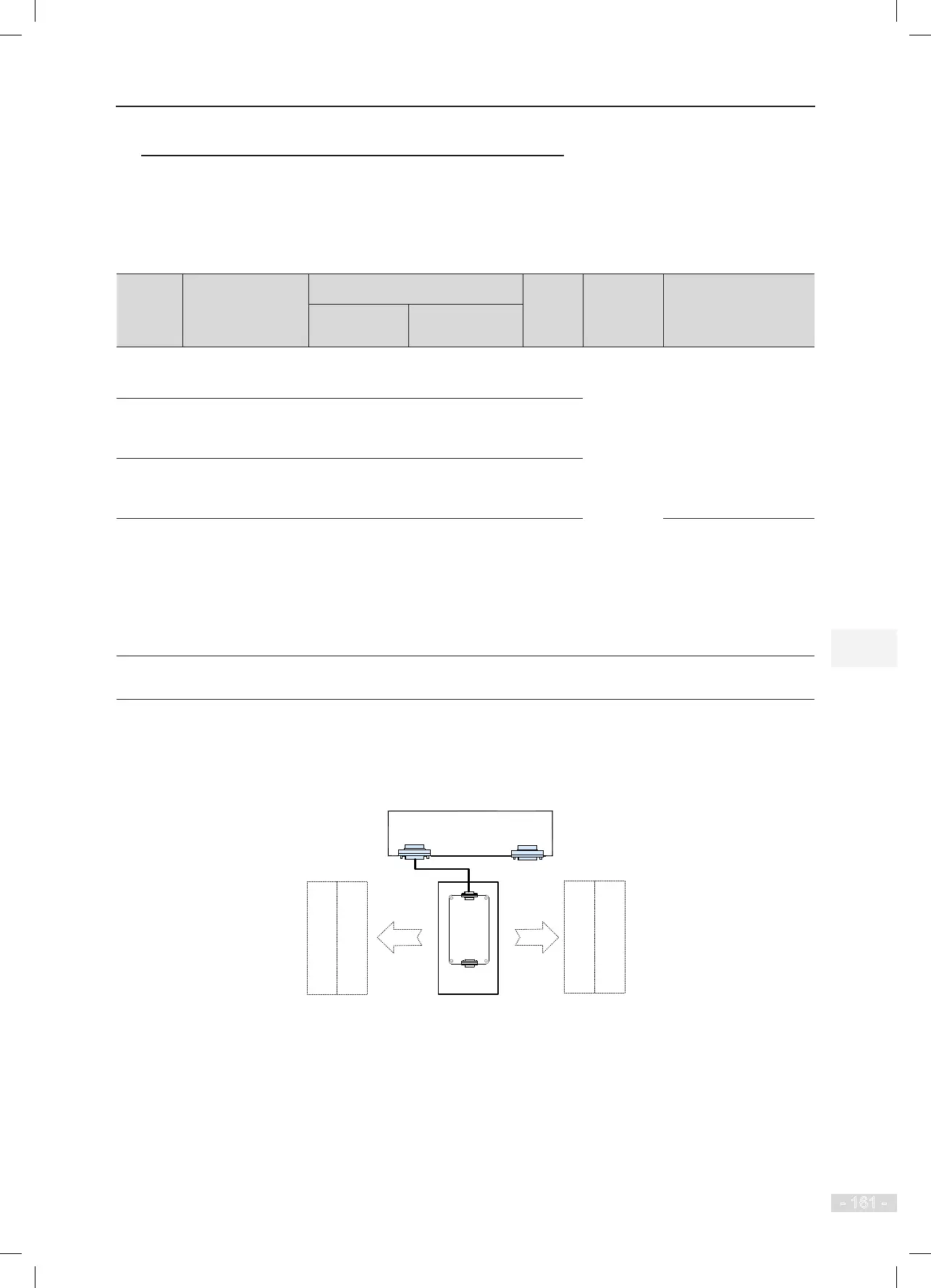

Figure 6-28 CCB wiring of single operation box (old method)
MCTC-CTB-A
CN7
CN8
MCTC-
CCB-A
Front door
Control
Control
Front
operation box
Back door
