6 System Commissioning and Functions NICE3000
new
User Manual
- 162 -
6

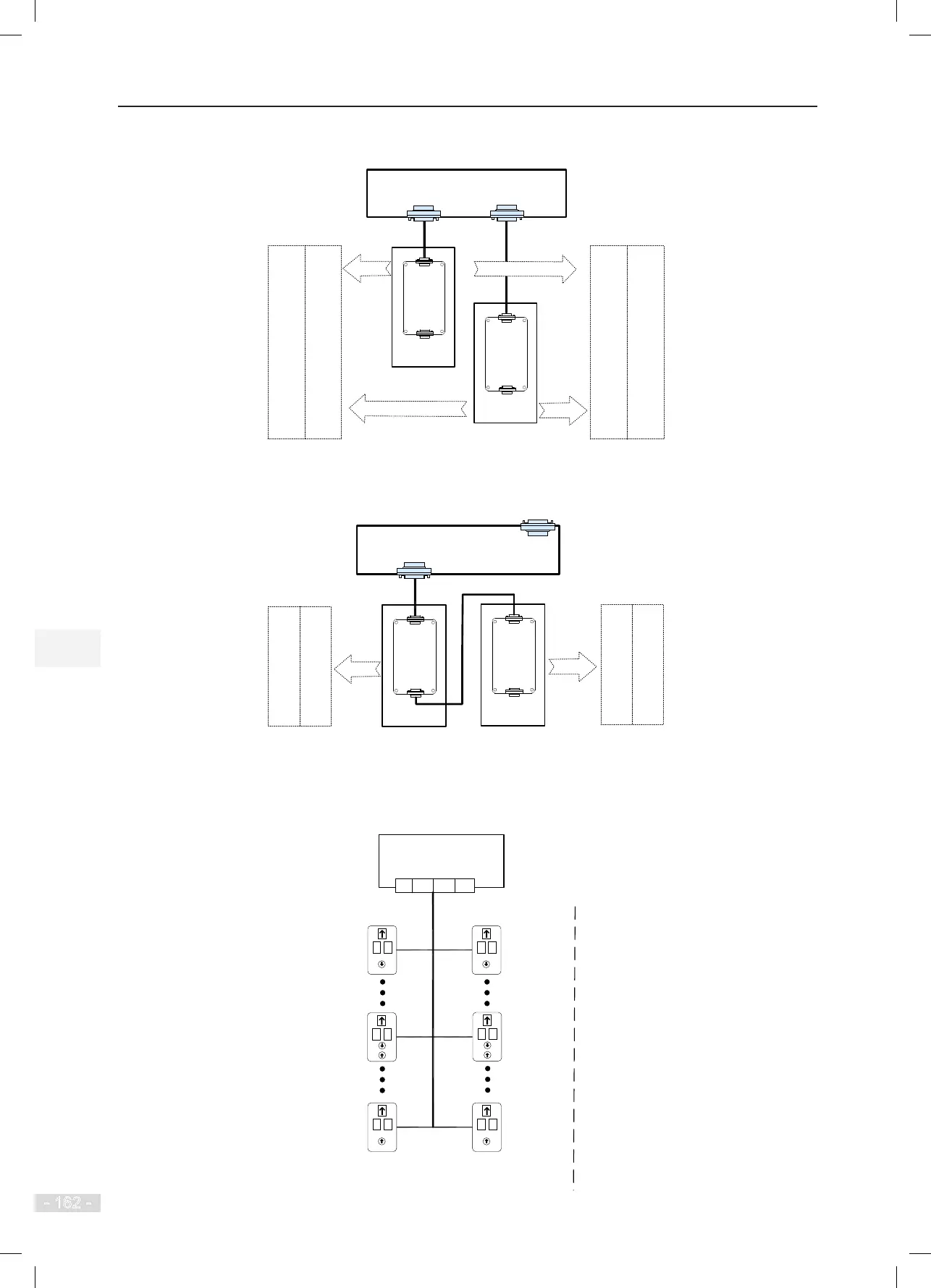

Figure 6-29 CCB wiring of double operation boxes (old method)
MCTC-CTB-A
CN7
CN8
Front door
Back door
Control
Front door control
Back door control
Control
MCTC-
CCB-A
Front
operation box
MCTC-
CCB-A
Back
operation box
The following gure shows the CCB wiring of modes 4.
Figure 6-30 CCB wiring of mode 4 (old method)
MCTC-CTB-A
CN7
CN8
Control
Control
MCTC-
CCB-A
Front
operation box
MCTC-
CCB-A
Back
operation box
Back door
Front door
CN8 not used
3. HCB setting
Figure 6-31 HCB setting of 15-oor opposite door control (old method)
24V
COM
MOD+ MOD-
NIC
E3000
new
controller
CN3
HCB of front door HCB of back door
HCB addresses of front door: 1 to 15
HCB+16 addresses of back door: 17 to 31
Address: 1
Address: X
Address: 15
Address: 17
Address:
16+X
Address: 31
Floor 15
Floor X
Floor 1
