6 System Commissioning and Functions NICE3000
new
User Manual
- 160 -
6

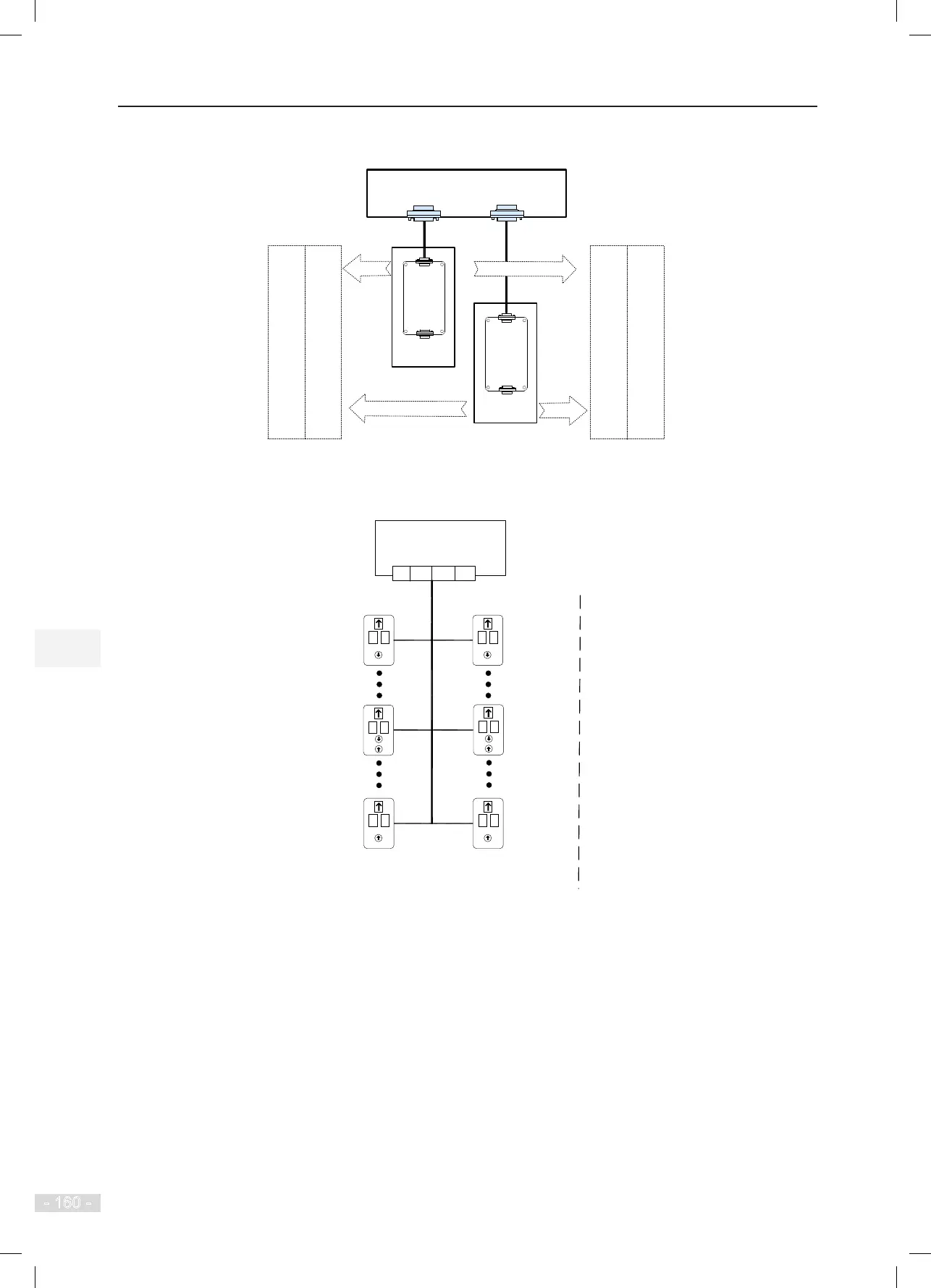

Figure 6-26 CCB wiring of double operation boxes
MCTC-CTB-A
CN7
CN8
Front door
Back door
Control
Front door control
Back door control
Control
MCTC-
CCB-A
Front
operation box
MCTC-
CCB-A
Back
operation box
3.
HCB setting
Figure 6-27 HCB setting diagram
24V
COM
MOD+
MOD-
NICE
3
000
new
controller
CN3
HCB of front door
HCB of back door
HCB addresses of front door: 1 to 20
HCB address of back door
: N to N+20
F8-16 = N (N > F6-00)
Address: 1
Address: X
Address: 20
Address: N
Address:
N+X
Address:
N+20
Floor 20
Floor X
Floor 1
160
162
