3 Mechanical and Electrical Installation
- 31 -
3
Controller Model
Physical Dimensions Mounting Hole
Hole Diameter
(mm)
Gross
Weight
(kg)
Size
H (mm) W (mm) D (mm) A (mm) B (mm) Ф (mm)
Three-phase 380 V, range: 380−440 V
NICE-L-C-4002
347 223 143 150 334.5 6.5 5.5 SIZE-C
NICE-L-C-4003
NICE-L-C-4005
NICE-L -C-4007
347 223 173.5 150 334.5 6.5 7 SIZE-DNICE-L -C-4011
NICE-L -C-4015
NICE-L-C-4018
554.5 289.6 223 235 541.5 6.5 14.5 SIZE-E
NICE-L-C-4022
NICE-L-C-4030
NICE-L-C-4037
600 385 268.42 260 580 10 32 SIZE-FNICE-L-C-4045
NICE-L-C-4055
NICE-L-C-4075
700 473 307 343 678 10 47 SIZE-G
NICE-L-C-4090
NICE-L-C-4110
930 579 380 449 903 10 90 SIZE-HNICE-L-C-4132
NICE-L-C-4160
4. Mounting orientation requirements

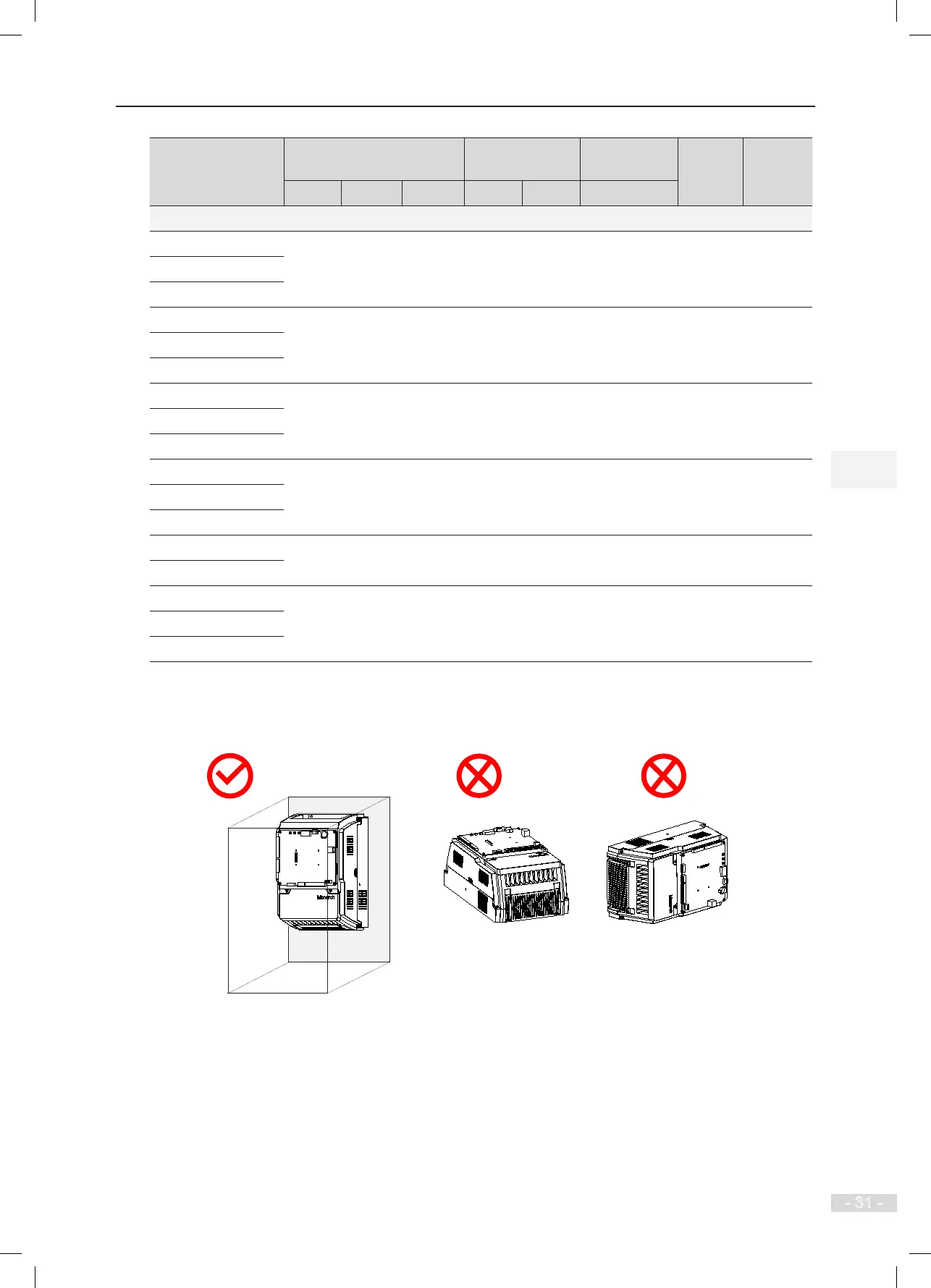

Figure 3-3 Mounting orientation of the NICE3000
new
