Before using VJ-1617H OPERATION MANUAL
3-106
• Determines the setting.
• The operation panel returns to "Adj.3: Fine Pattern".

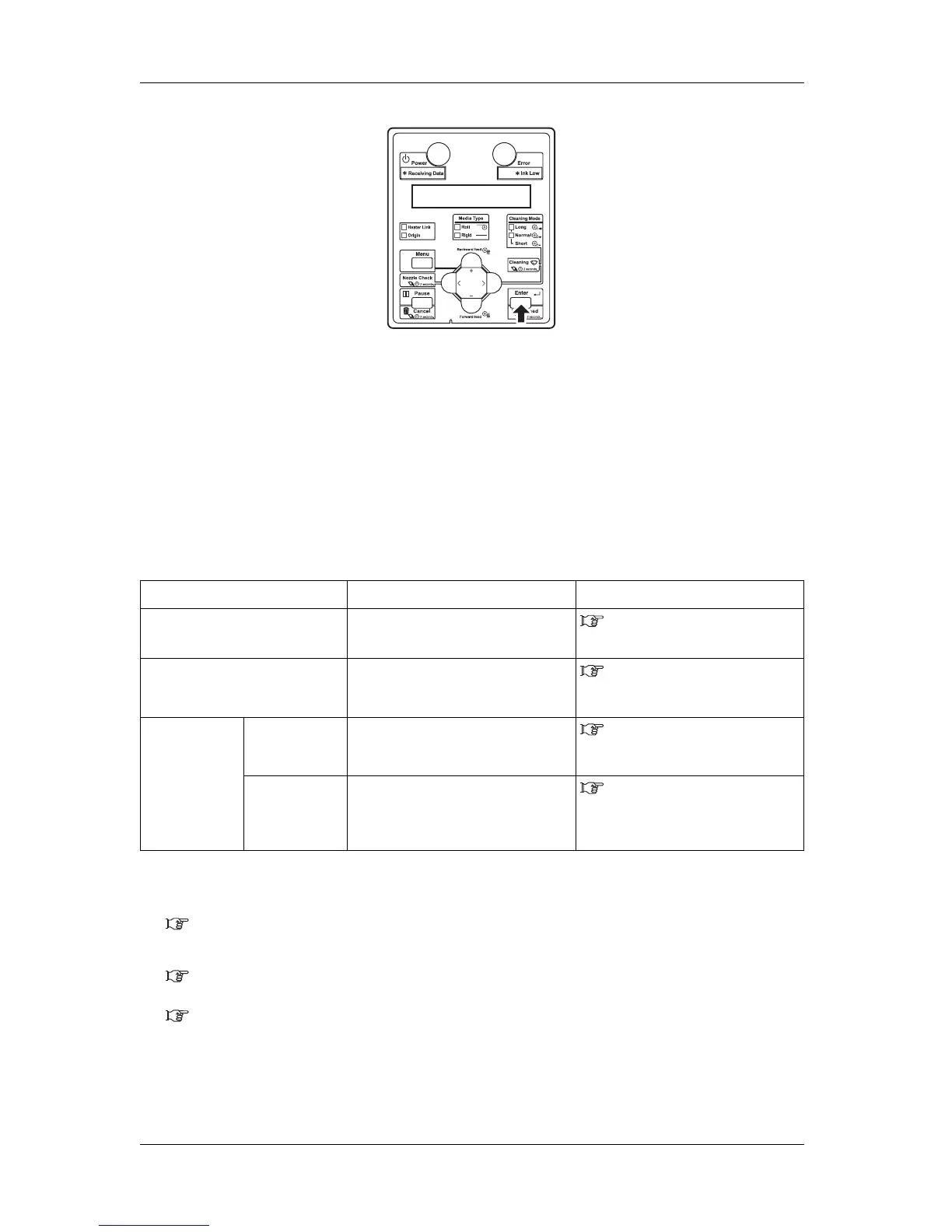

3.7.2 Custom print quality adjustment
Perform adjustment for all patterns (A to D).
All print modes will be adjusted.
This menu consists of the following menus.
Follow the procedure below to perform adjustment.
1. Print out the confirmation pattern and check the degree of misalignment.
3.7.2.1 Custom confirmation pattern
2. Perform rough adjustment when the degree of misalignment is big.
3.7.2.2 Custom rough adjustment pattern
Perform micro adjustment when the degree of misalignment is small.
3.7.2.3 Custom micro adjustment pattern
Menu name Description Reference
Custom confirmation pattern Print out the confirmation patterns (A to
D) and check the degree of misalignment.
3.7.2.1 Custom confirmation
pattern
Custom rough adjustment pattern Perform this when the degree of
misalignment is big. All confirmation
patterns (A to D) will be adjusted.
3.7.2.2 Custom rough
adjustment pattern
Custom micro
adjustment
pattern
Adj. PatternALL Perform this when the degree of
misalignment is small. All confirmation
patterns (A to D) will be adjusted.
3.7.2.3.1 Adj. Pattern ALL
Individual Adj.
pattern
Perform this when the degree of
misalignment is small. One of the
confirmation patterns (A to D) will be
adjusted.
3.7.2.3.2 Individual Adj.
pattern
