VJ-1617H OPERATION MANUAL Before using
3-43
7. Turn the screw of Media-feed table's caster (the one further from the printer) with a spanner, and
adjust the slant.
Make sure that the position of the level's air bubble is at the same position as when you place it on
the printer.
8. Adjust the slant on the other side in the same way.
3.5.2 Loading rigid media
NOTE
You can load the following rigid media on this printer:
• Maximum width: 1,625 mm
• Minimum width: 182 mm
• Maximum depth: 1,200 mm
• Minimum depth: 200 mm
• Thickness: 15 mm or less (including media warpage and unevenness)
• Weight: 15 kg or less
• Media warpage: Less than 1 mm. (when the media thickness is uneven, make sure that the total
of the warpage and unevenness is less than 1 mm. Also, do not print with the warpage facing up.)
See the following for loading the rigid media (only when adjusting Media-feed table).
• Spanner: provided with Media-feed table
Follow the procedure below to load the rigid media.

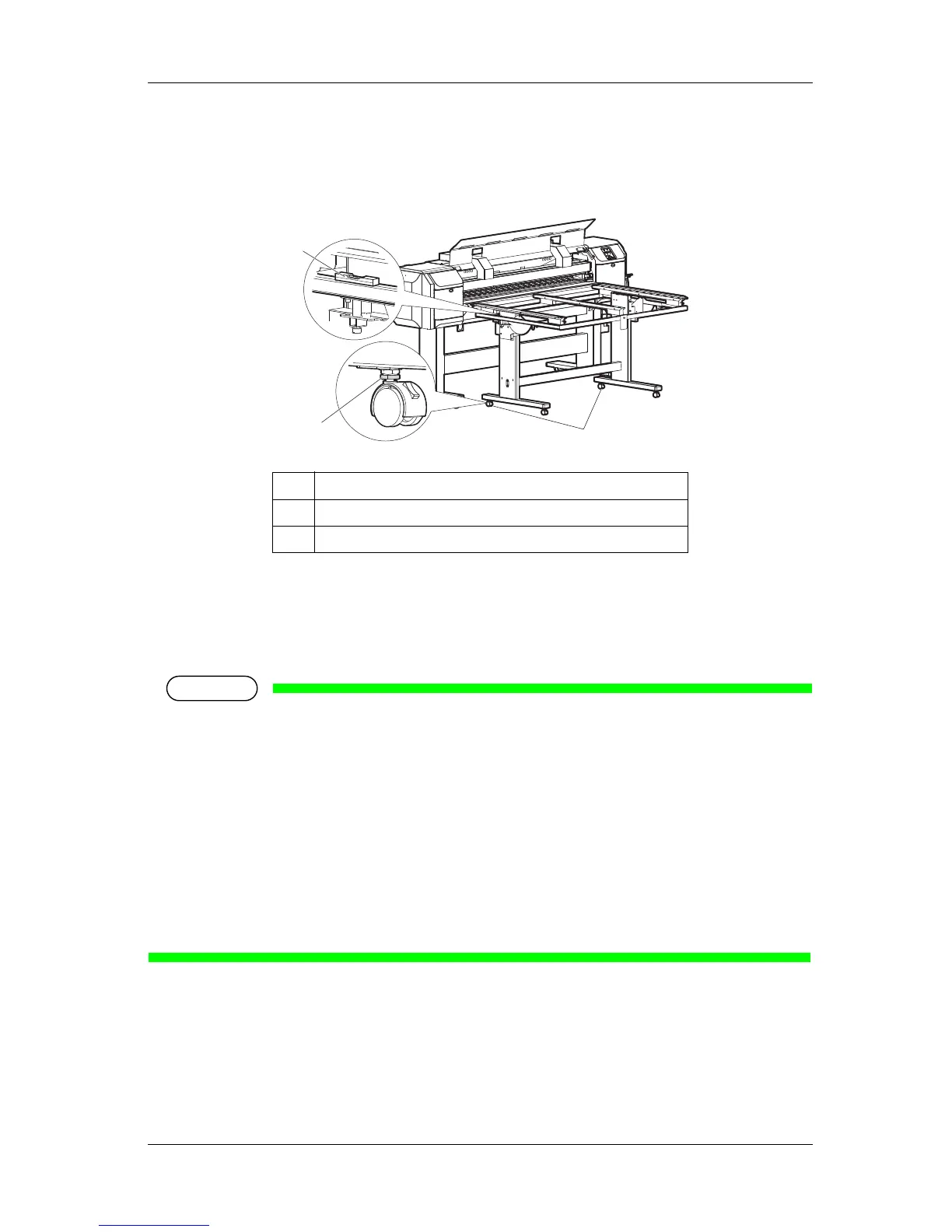

No. Name
1 Screws on Caster
2 Level
1
2
1
