VJ-1617H OPERATION MANUAL Before using
3-115
• Determines the setting.
7. Enter the values for patterns B to D in the same way.

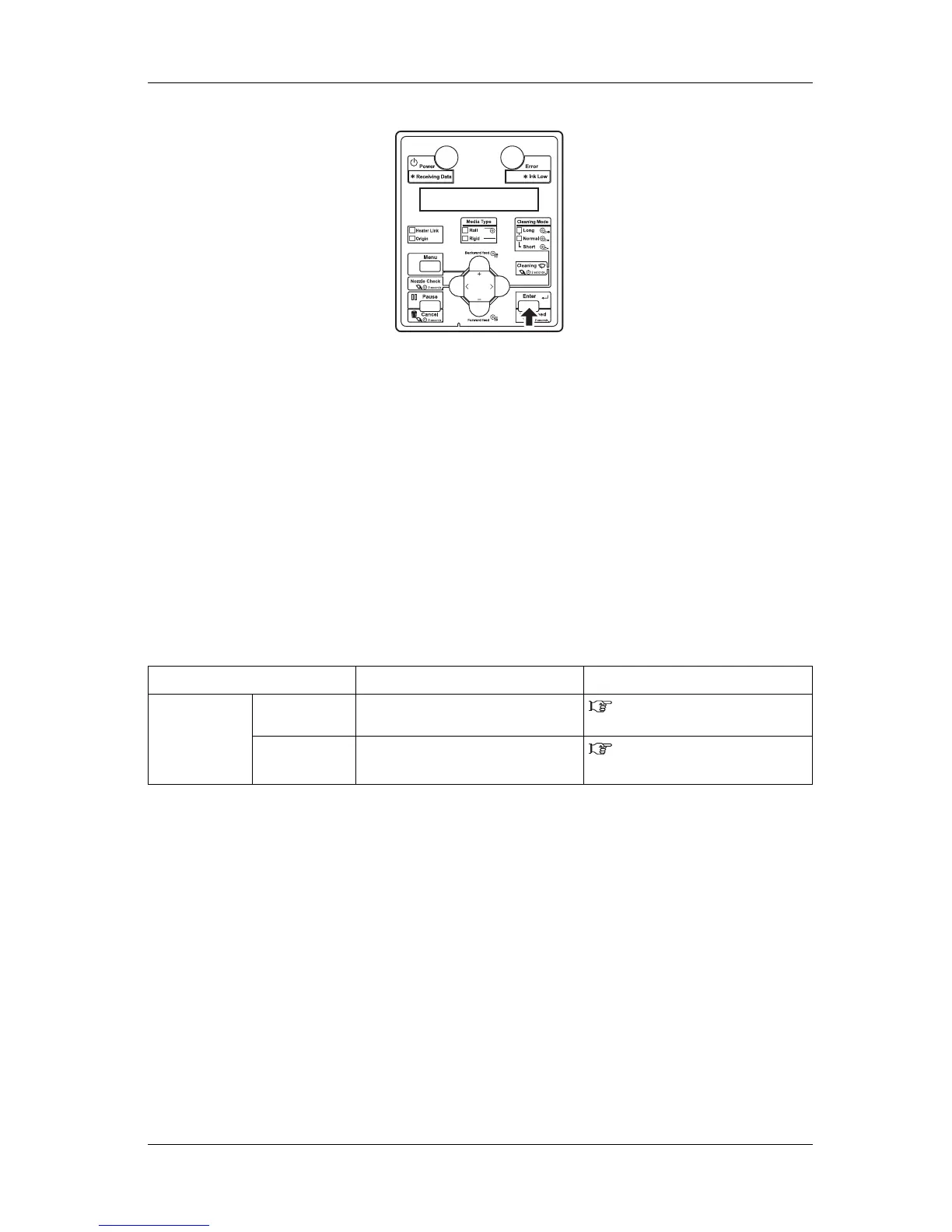

• Press the [Enter] key to set the value.
• Once all set values have been entered, press the [Enter] key to register the set values of patterns
A to D.
• "Adj.2: Rough Pattern" is displayed on Operation panel.
3.7.2.3 Custom micro adjustment pattern
Perform micro adjustment when the degree of misalignment is small.
This menu consists of the following menus.
3.7.2.3.1 Adj. Pattern ALL
Print micro adjustment pattern ALL and register the set values.
1. Display the Custom Adjust Print menu on Operation panel in the same way as Step 2 of
2. Press the [+] key or [-] key on Operation panel to select "Adj.3: PatternALL".
Menu name Description Reference
Custom micro
adjustment
pattern
Adj. PatternALL All confirmation patterns (A to D) will be
adjusted.
3.7.2.3.1 Adj. Pattern ALL
Individual Adj.
pattern
One of the confirmation patterns (A to D)
will be adjusted.
3.7.2.3.2 Individual Adj.
pattern
