VJ-1617H OPERATION MANUAL Handling the printer
4-7
4.2.5 Printing area
The printable area of this printer is as follows.
4.2.6 Head height adjustment
Printing with high printing rate or using strongly-curved media can cause print heads to rub.
Adjusting the distance from the print head surface to media (head height) may allow you to avoid head
rub.
Follow the procedure below to adjust the head height.
• If the head height is raised, high print quality is not guaranteed.
1. Display the Media Thickness Adjust menu on the operation panel.
a. Press the [Menu] key on the operation panel.
• "Menu1: Sleep Mode>" is displayed on the operation panel.
• The operation panel shifts to the Setup menu display.
b. Press the [>] key on the operation panel.
• "Set1: MediaType" is displayed on the operation panel.
c. Press the [Enter] key on the operation panel.
a
c
bd
a
c
bd
a*

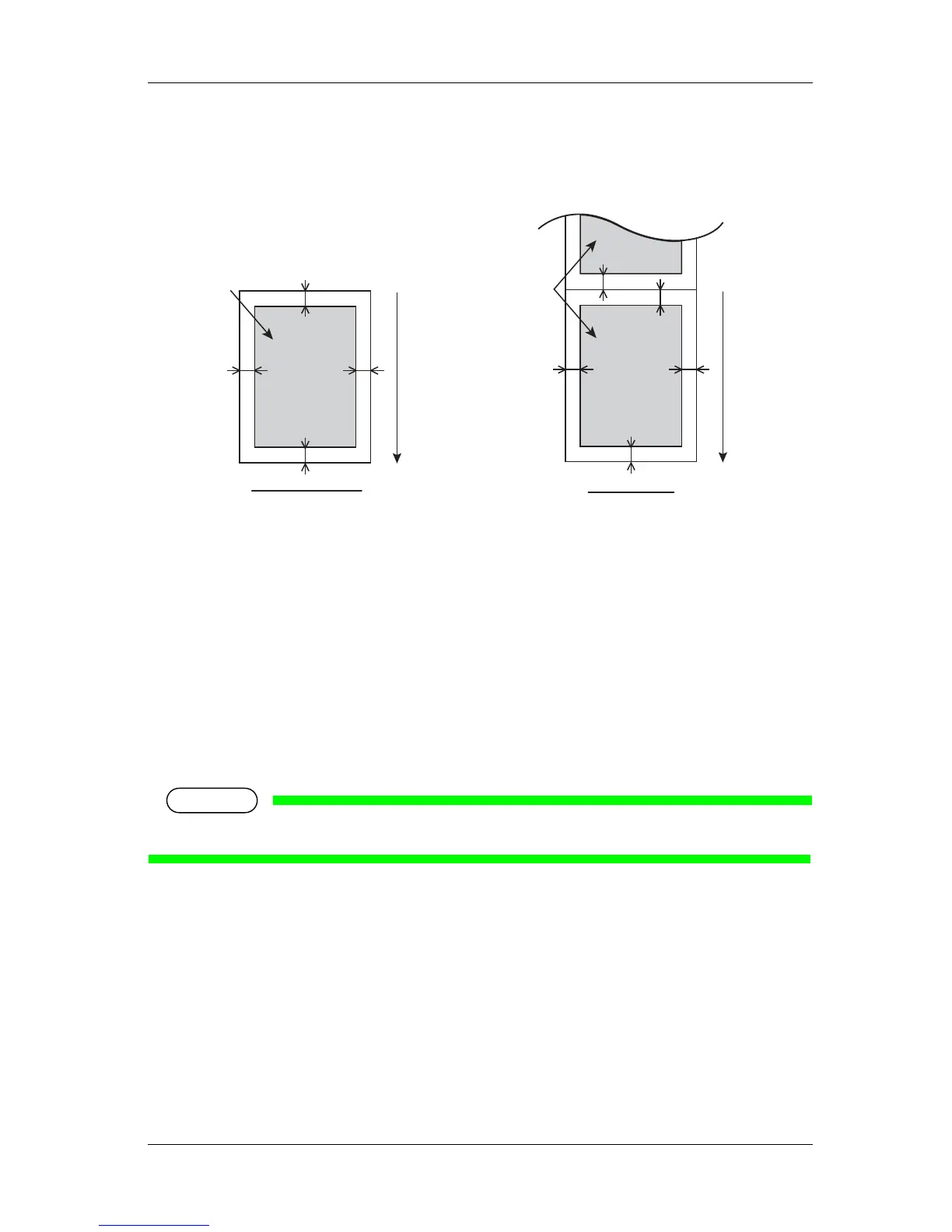

Printable Area
a=Max. 15mm
b=5mm to 25mm
c=Max. 52mm
d=5mm to 25mm
Media feeding direction
a=Max. 15mm
(a*= from the second pages onwards
in continuos printing=5mm)
b=5mm to 25mm
c=5mm(Maximum end edge of media is 52mm)
d=5mm to 25mm
Media feeding direction
for thick media
for roll media
Printable Area
To Next Page
