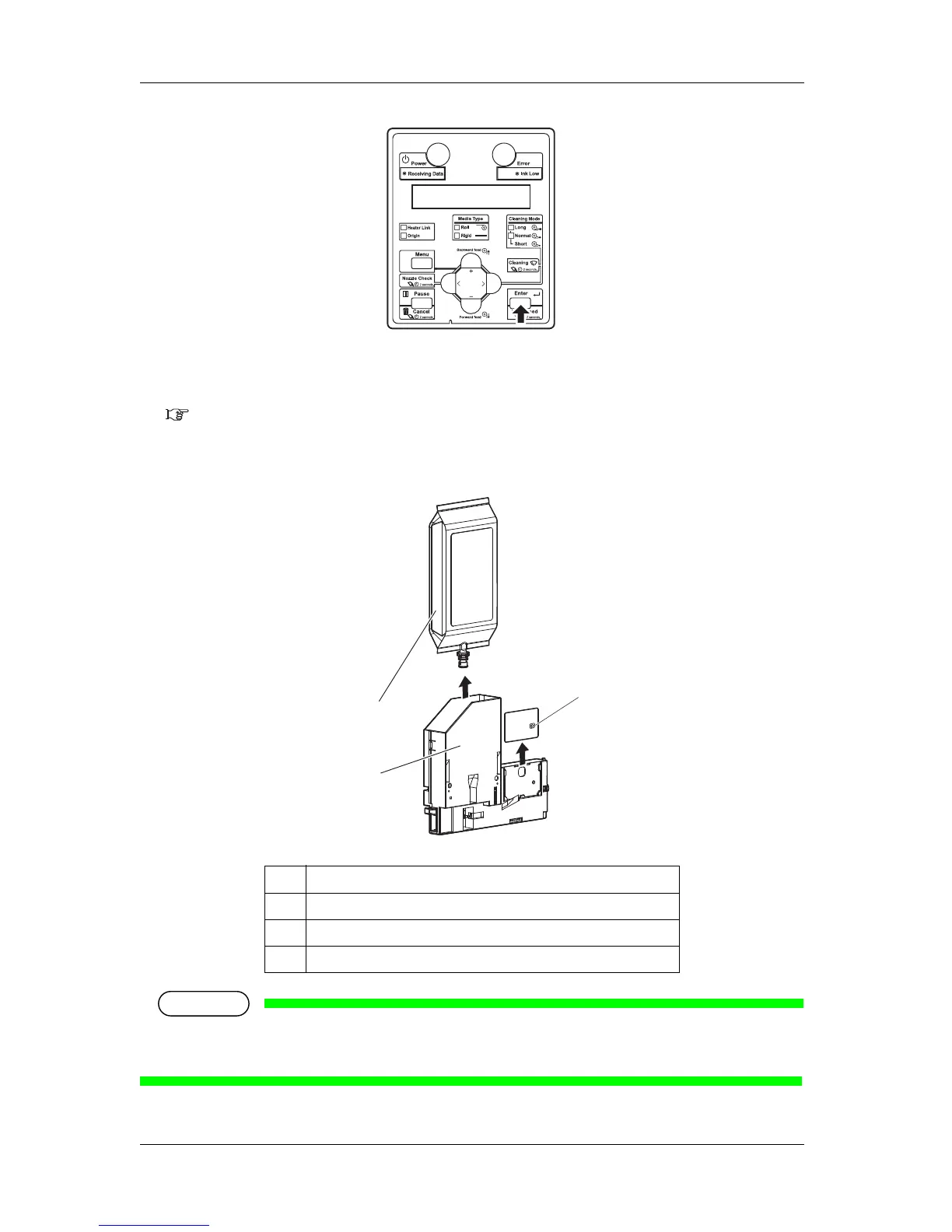

Maintenanc
e
VJ-1617
H OPERA
TION MANUAL
6-18
•
"Insert InkCartridges" is di
splayed on Operation panel.
9.
W
ipe off the ink attached
to
High-capacity pack adapters.
Operation manual for High-Capacity Ink P
ack
Adapter “3.2 When High-Capacity Ink Pack
Adapter is removed from Printer”
10.
Remove Ink packs from High-
capacity ink pack adapters.
NO
TE
•
When there is remaining Ink pack and IC chip car
d, clarify the corresponding pack and card, and
store them as a set.
No.
Name
1
Ink pack
2
Smart chip card
3
High-capacity adapt
er
2
1
3
283
285
Table of Contents
Default Chapter
3
Important Notice
3
Warranty Limitations
5
About this Manual
6
Contents of the Manual
6
Installation Manual
6
Manual Configuration
6
Table of Contents
9
1 Safety Instructions
15
Types and Meanings of Warnings
16
Important Safety Instructions
17
Warning Labels
21
Handling the Warning Labels
21
Location and Type of Warning Labels
21
2 Product Overview
25
Features
26
Names of Parts and Functions
27
Front Section
27
Operation Panel
28
Rear Section
29
Operation Panel
30
Printer Status
35
Number of Colors to be Used
35
Normal
35
Setup Menu Display
35
Changing Printer Status
35
3 Before Using
37
Power Cable Connection
38
Turning the Power ON/OFF
43
Turning the Power on
43
Turning the Power off
44
Sleep Mode
51
Set Sleep Mode on the Printer
51
Recover the Printer from Sleep Mode
56
Initial Ink Filling
57
Details of Initial Ink Filling
60
Setting Media
71
Installing Media-Feed Table
71
Loading Rigid Media
79
Removing Media-Feed Table (Optional)
87
Loading Roll Media
89
Setting Roll Media
92
Setting Media Type
98
Media Type Change Procedure from Media Type Menu
102
Test Print
111
Nozzle Check
113
Nozzle Check B
114
Mode Print
115
Setup Print
115
Palette Print
116
Color Verify
117
Testprint Menu
121
Serial Number
129
Adjust Print
131
Standard Print Quality Adjustment
131
Standard Confirmation Pattern
132
Standard Rough Adjustment Pattern
137
Standard Micro Adjustment Pattern
139
Custom Print Quality Adjustment
142
Custom Confirmation Pattern
143
Custom Rough Adjustment Pattern
148
Custom Micro Adjustment Pattern
151
Connecting the Printer to PC
158
System Requirements
158
Preparing Cables
158
Connecting a Network Interface Cable
158
Setting the IP Address
159
Setting Subnet Mask
161
Gateway Setting
164
4 Handling the Printer
169
Print Flow Chart
170
Media
172
Loadable Media
172
Recommended Media
172
Cautions on Handling Media
174
Precaution on Storing Media
174
Printing Area
175
Head Height Adjustment
175
Media Feed Compensation
177
Installing Media Holder Plates
181
Menu Setups on the Operation Panel
185
Panel Setup Menu Overview
185
Menu Setup Procedure
185
Operating from the Operation Panel
189
Feeding Media
189
Stopping Printing Operation
189
Cutting Media
190
Changing and Confirming Settings While Printing
193
Settings that Can be Changed or Confirmed While Printing
194
Pausing Printing
195
Starting Printing During Warming up
196
Normal Display While Printing
197
Using Blower Heater
199
Turning Blower Heater on
199
Turning Blower Heater off
200
Interlocking/Not Interlocking the Printer and Blower Heater
201
Adjusting Heater Output and Air Volume
202
Using Spectrophotometer (SPECTROVUE VM-10)
204
5 Panel Setup Menu
213
Sleep Mode Menu
214
Timer Setting Menu
214
Sleep Mode Start Menu
215
User Type Menu
217
Type Menu
217
Various Settings of User Type
217
Print Mode Menu
220
Effect Menu
220
Adjust Print Menu
221
Vacuum Fan Menu
226
Media Initial Menu
227
Media Width Menu
230
Strike Wait Menu
231
Mediatype Menu
231
Initialization Menu
232
Setup Menu
233
Spitting Menu
235
Spitting Pass Count Menu
236
Side Margin Menu
237
Take-Up Unit Menu
239
Media Loading Position
239
Origin Menu
241
Standby Heating Menu
243
Head Travel Menu
243
Multi Strike Count Menu
244
Slant Check Menu
244
5.3.10 Auto Cleaning Menu
245
Idle Auto Cleaning
246
Power on Cleaning Menu
248
5.3.11 Roll Length Menu
250
5.3.12 Paper Interlace Menu
251
5.3.13 Btminterlace Menu
251
5.3.14 CR Maintenance Menu
251
5.3.15 Ink Status Menu
252
5.3.16 Life Times Menu
254
5.3.17 Header Dump Menu
254
5.3.18 Initialization Menu
255
Testprint Menu
256
Cleaning Menu
257
Menu Option Menu
258
Head Maintenance
260
Longstore Menu
261
Version Menu
262
Default Settings
263
Longstore Menu
263
Length Menu
264
IP Address Menu
264
Subnet Mask Menu
264
Gateway Menu
265
5.10 Job Status Menu
266
6 Maintenance
267
Shaking Ink Packs
268
Daily Maintenance
272
Cleaning the Cleaning Wiper Unit
273
Cleaning Around the Print Head
278
Long Storage
281
Operation Procedure for Long Storage
281
Recovery Procedure for the Printer after Long Storage
290
Replacing Consumable Components
299
Replacing Ink Bags
299
Replacing Connector Rubber
304
Replacing Roll Media
305
Replacing the Flushing-Box Sponges
308
Cleaning the Printer
315
Cleaning the Outer Case
315
Cleaning the Inside of the Printer
315
Head Cleaning
317
Disposal the Waste Fluids
320
Moving or Transporting the Printer
322
Moving the Printer
322
Transporting the Printer
324
7 Troubleshooting
325
Malfunctions and Failures
326
Problems in Installation and Introduction
326
Cannot Print at All
327
Media-Related Troubleshooting
328
Printing-Related Troubleshooting
331
Error Messages
333
Status Messages
333
Error Message Display and Remedies
338
Data Error Display and Solutions
342
Command Error Display and Remedies
342
Error Requiring Restart
343
The Media Is Jammed
345
Removing Thick Media
345
Removing Roll Media
345
8 Appendix
349
Product Specifications
350
Printer Specifications
350
Interface Specification
352
Network Interface Specification
352
Options/Supply List
353
