VJ-1617H OPERATION MANUAL Before using
3-55

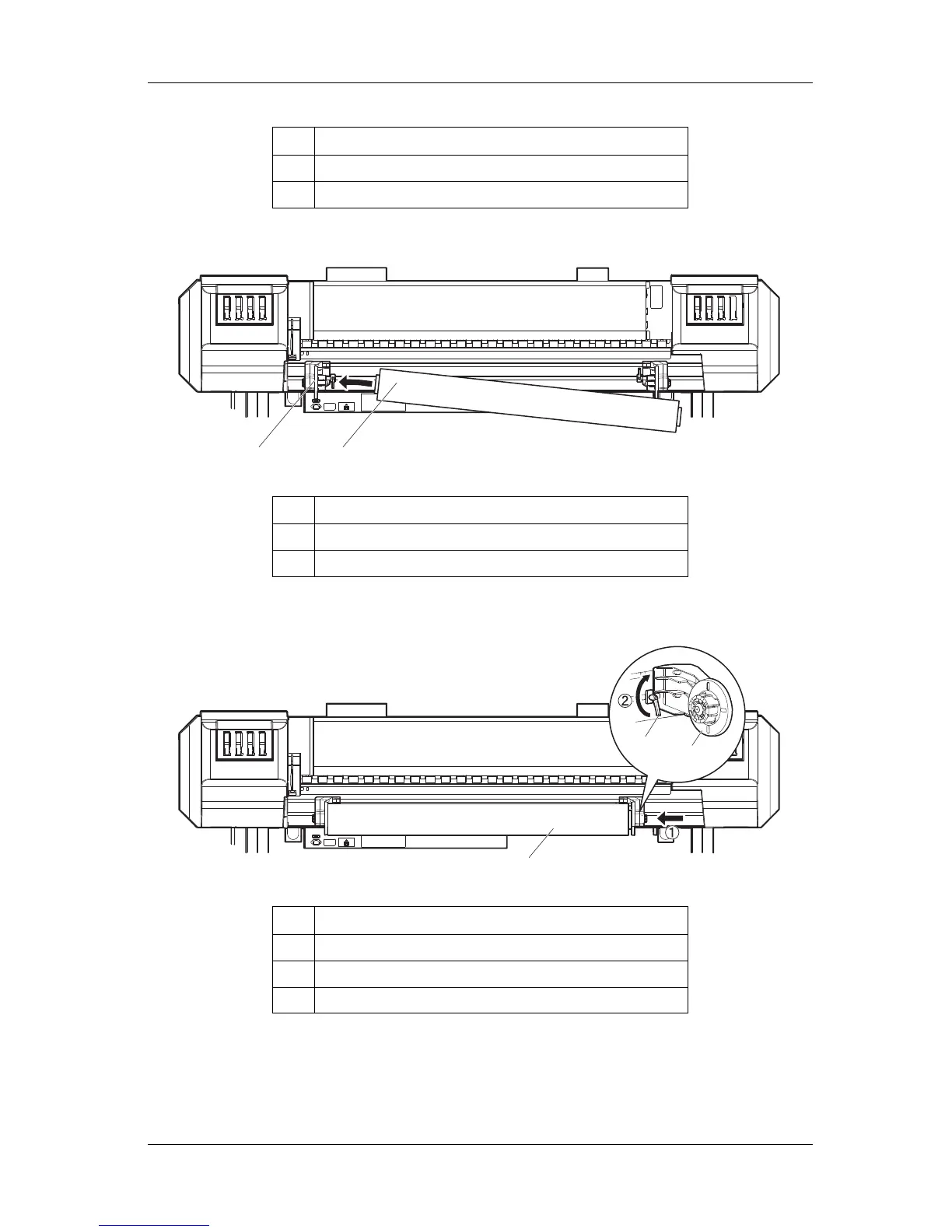

3. Set the roll media to the roll media holder (Left).
4. Set the roll media to the roll media holder (Right) and fixed the fixing lever.
5. Loosen the fixing levers of the right and left roll media holders, move the roll media to the center
and tighten the levers.
No. Name
1 Roll media holder (Left)
2 Fixing lever
No. Name
1 Roll media holder (Left)
2 Roll media
No. Name
1 Roll media holder (Right)
2 Roll media
3 Fixing lever
1 2
3
1
2
