NETGEAR ProSAFE WC7500 User Manual

Hardware Descriptions
22
ProSAFE Wireless Controller
Hardware Models WC7600 and WC9500
The front panel ports, slots, and LEDs, back panel components, and product label of models
WC7600 and WC9500 are described in the following sections.
WC7600 and WC9500 Front Panel Ports and Slots

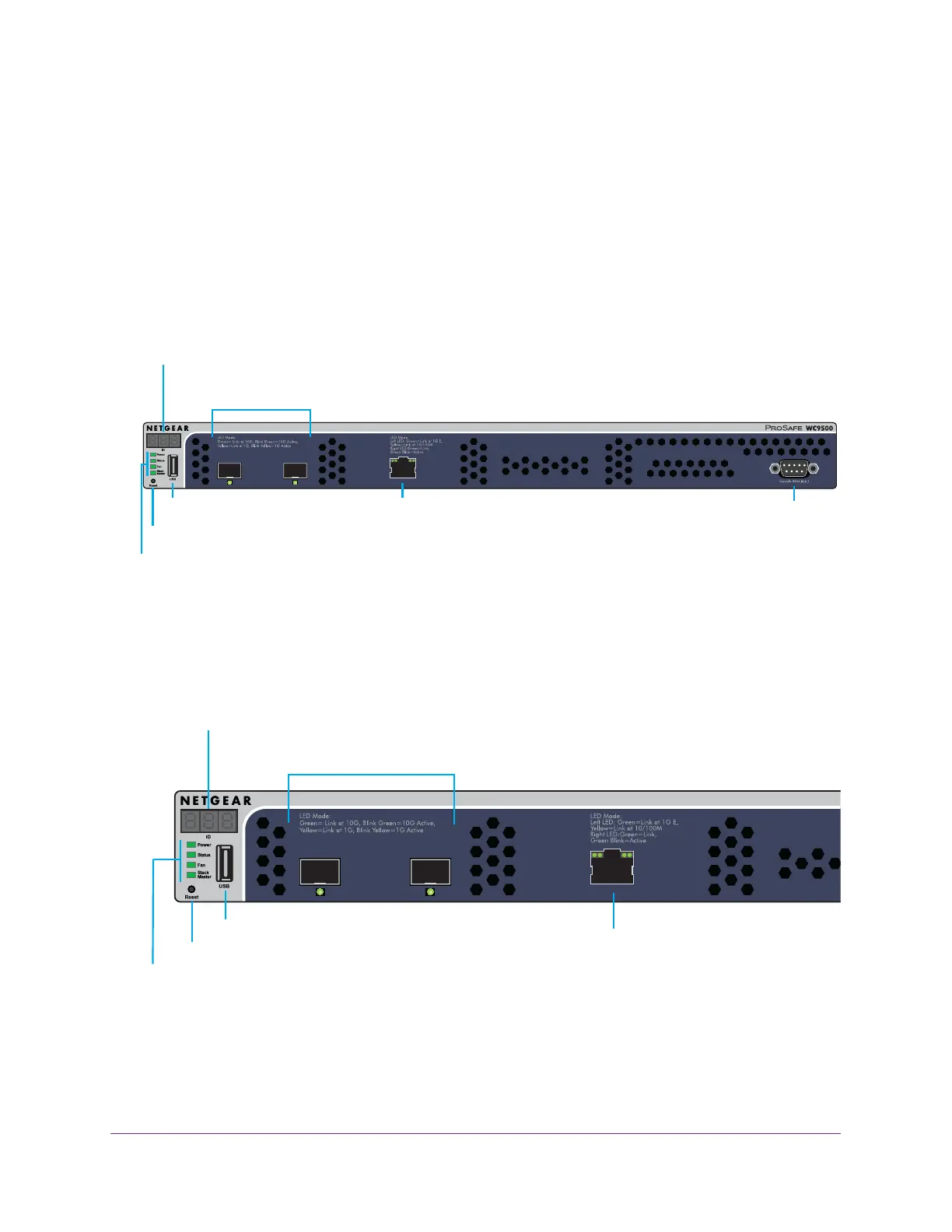

The following figure shows the front panel of models WC7600 and WC9500. (The label on
the right states PROSAFE WC9500 but the front panel for the WC7600 is identical.)
Figure 5. Front panel models WC7600 and WC9500
The following figure shows a close-up of the left side of the front panel.
Figure 6. Front panel close-up models WC7600 and WC9500
Digital access point counter
Console port
LEDs (top to bottom):
Power, Status,
10/100/1000M RJ-45 port
and LEDs
Fan, Stack Maser
Reset button
USB port
SFP+ slots and LEDs
LEDs (top to bottom):
Power, Status,
Reset button
Digital access point counter
SFP+ slots and LEDs
10/100/1000M RJ-45 port
USB port
Fan, Stack Maser
and LEDs
