NF BP4610 - Figure 4-23. Output Voltage Waveform for CV Mode;Capacitive Load (C = 10 Μ F)

4.10 Response Calibration
BP4610
4-77

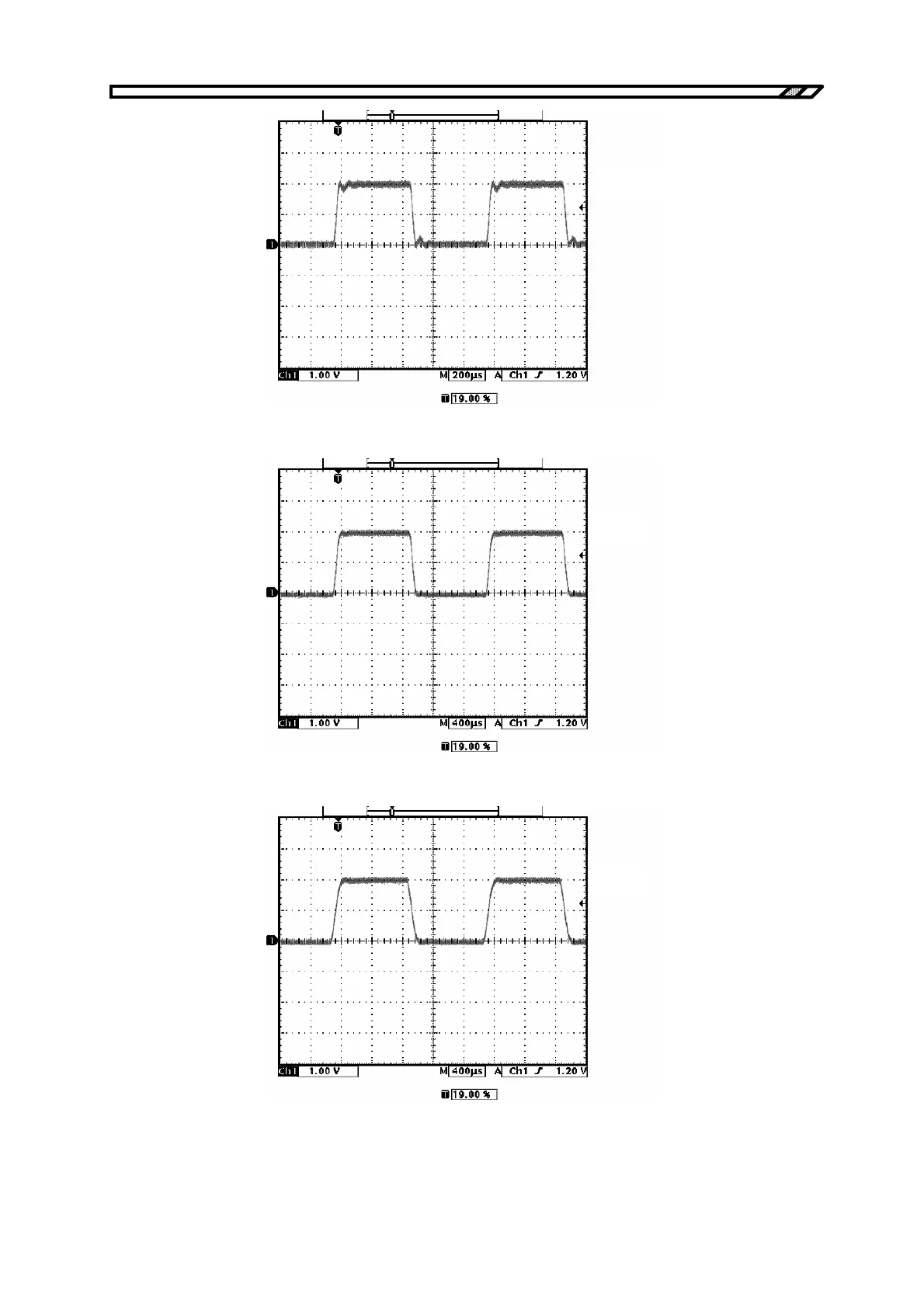

Figure 4-23. Output Voltage Waveform for CV Mode/Capacitive Load (C = 10
µ F)
Figure 4-24. Output Voltage Waveform for CV Mode/Capacitive Load (C = 50
µ F)
Figure 4-25. Output Voltage Waveform for CV Mode/Capacitive Load (C = 100
µ F)
10 V/div
10 V/div
10 V/div
Ch1 rise
23.76
µ s
Ch1 rise
60.74
µ s
Ch1 rise
94.24
µ s
