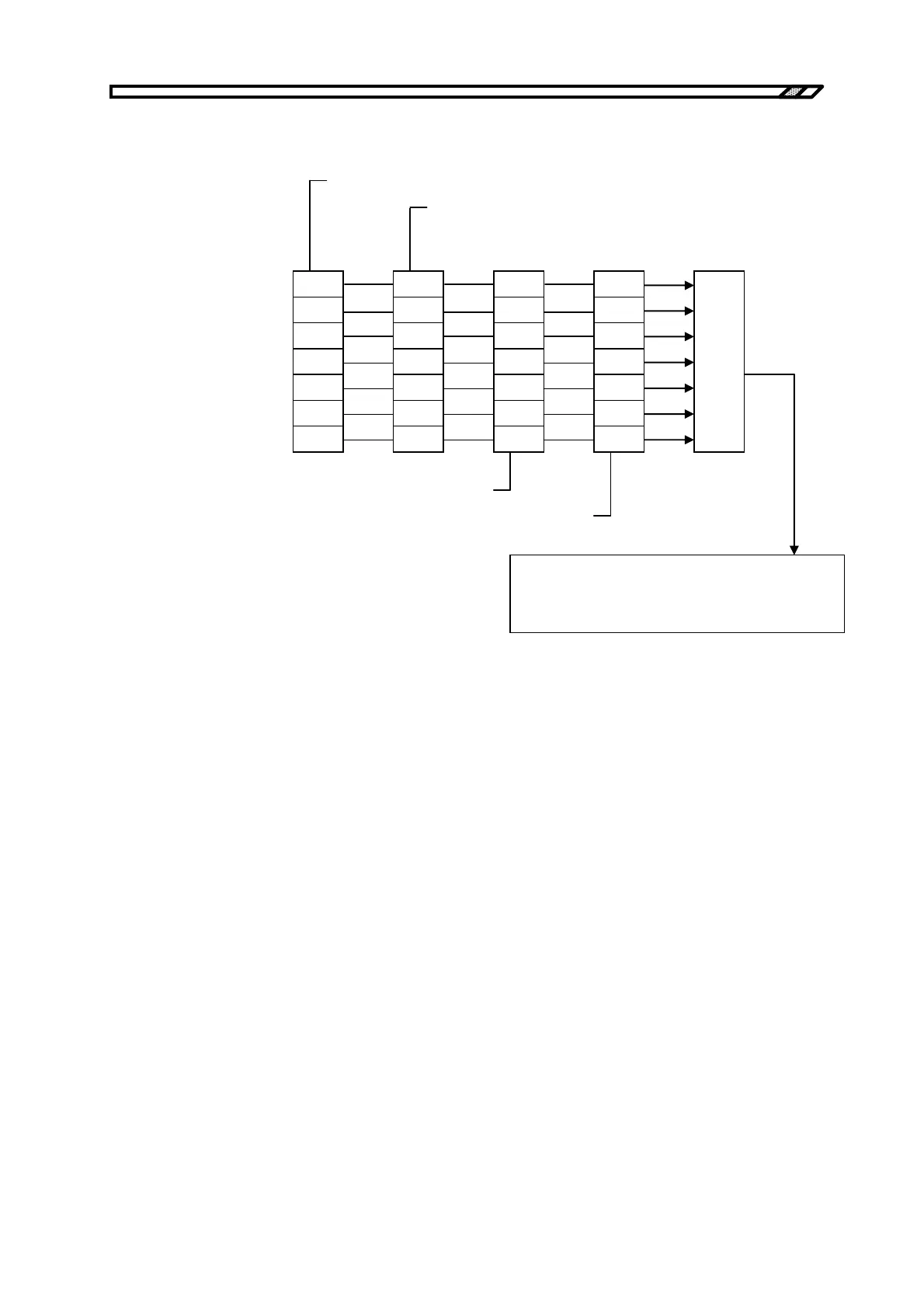

5.4.6 Overload statuses
Alwa
y
s 0
Unused
15
14
OVCR? (overload condition register)
Logical OR
OVTF (overload transition filter)
Overload status summary
Status byte (bit 0)
:
:
:
1
0
:
:
:
Unused
Overload detection
:
:
:
1
0
15
14
:
:
:
1
0
15
14
:
:
:
1
0
15
14
OVER? (overload event register)
OVEE (overload event enable register)
The transition filter converts conditions into events.
If corresponding bit of transition filter is 1:
When the corresponding bit of the condition register changes from 0 to 1, the corresponding
bit of the event register is set to 1.
If corresponding bit of transition filter is 0:
When the corresponding bit of the condition register changes from 1 to 0, the corresponding
bit of the event register is set to 1.
