4.10 Response Calibration
BP4610
4-79

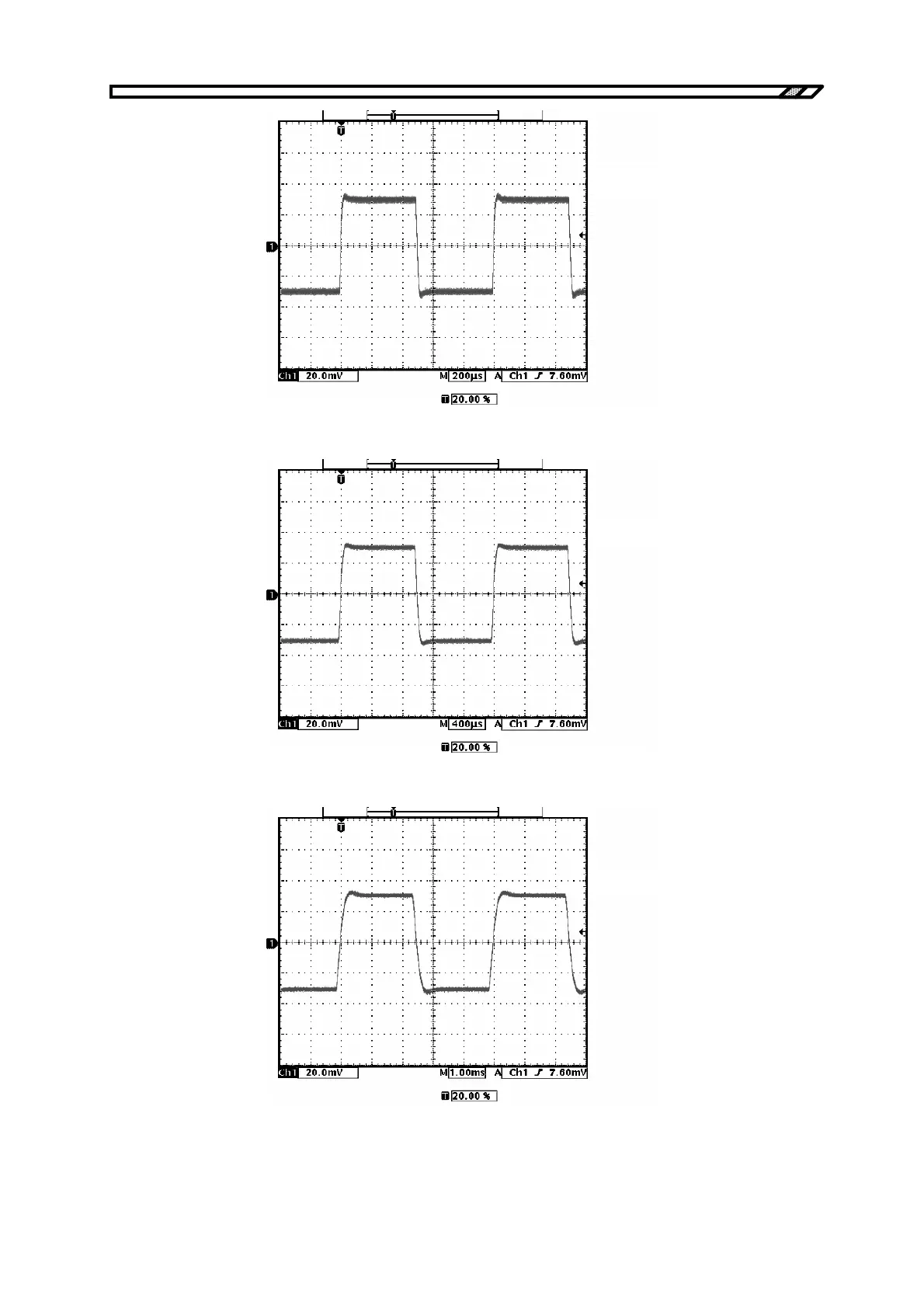

Figure 4-26. Output Current Waveform for CC Mode/Inductive Load (L = 150
µ H)
Figure 4-27. Output Current Waveform for CC Mode/Inductive Load (L = 390
µ H)
Figure 4-28. Output Current Waveform for CC Mode/Inductive Load (L = 1.6 mH)
2 A/div
2A/div
2 A/div
Ch1 rise
14.84
µ s
Ch1 rise
48.96
µ s
Ch1 rise
235.8
µ s
