8.14 Power Input
BP4610
8-10
8.14 Power Input
Power input voltage range: 90 to 250 V
Power supply frequency range: 47 to 63 Hz (single phase)
Power factor: 0.95 (100 V AC, CV mode, 6 Ω load, DC only ±60 V
output)
Power consumption: 1200 VA max. (100 V AC, C mode, 6 Ω load, DC only
±60 V output)
8.15 Withstand Voltage, Insulation Resistance
Power supply input terminals in batch vs. Other terminals and chassis in batch
Withstand voltage: 1500 V AC
Insulation resistance: 10 MΩ or higher (500 V DC)
8.16 Ambient Temperature Range and Ambient Humidity
Range
Performance guarantee: +5 to +35°C/5 to 85%RH
However, the absolute humidity must be 1 to 25 g/m
3
, with no
condensation
Storage conditions: −10 to +50°C/5 to 95%RH
However, the absolute humidity must be 1 to 29 g/m
3
, with no
condensation
Figure 8-1 shows the ambient temperature and humidity ranges.
− 10 0 10 20 30 40 50 ° C
Performance
assurance
%RH
90
80
70
60
50
40
30
20
10
0
Storage

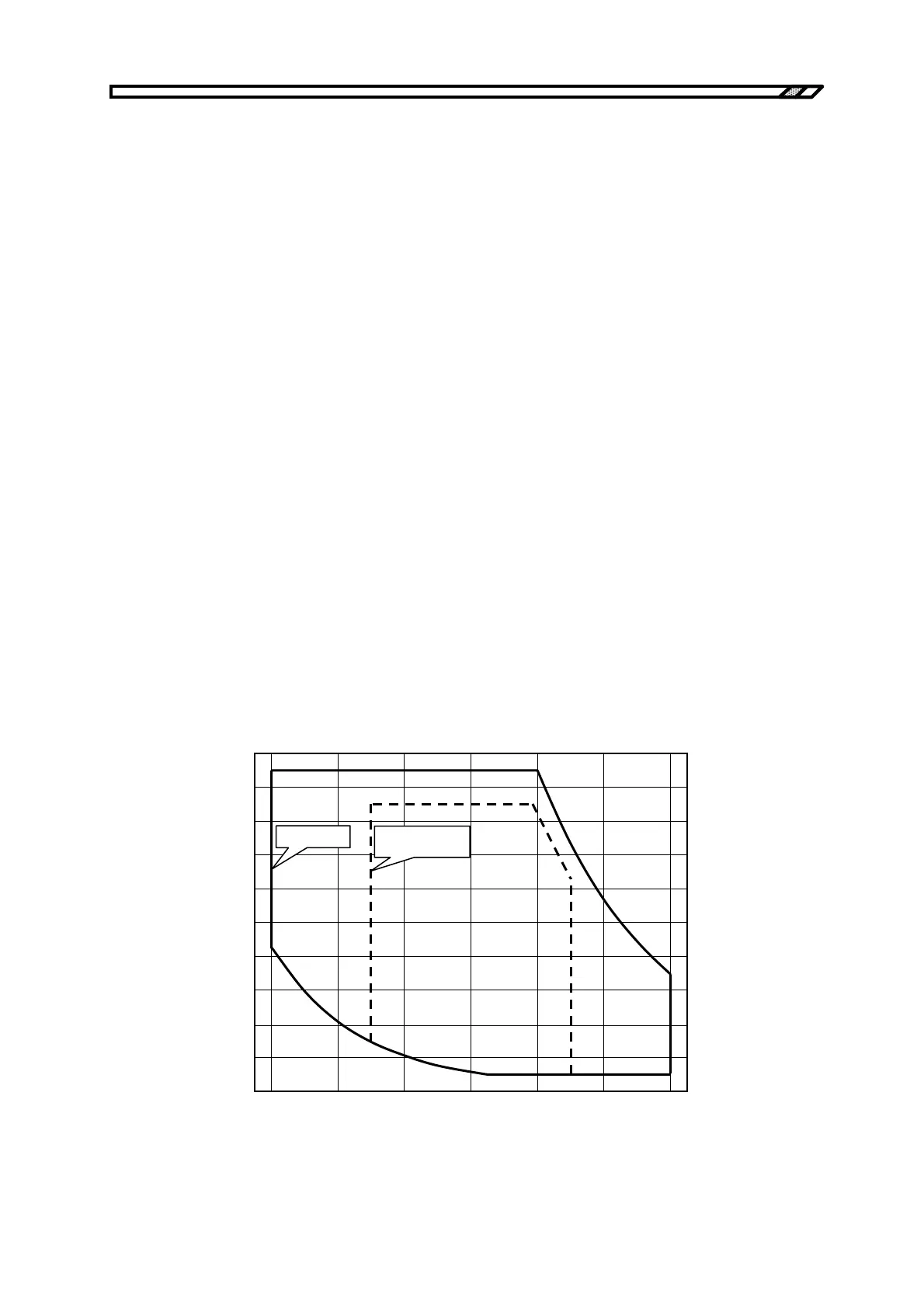

Figure 8-1. Ambient Temperature and Humidity Ranges
