NF BP4610 - Rear Panel

3.1 Nomenclature
BP4610
3-5

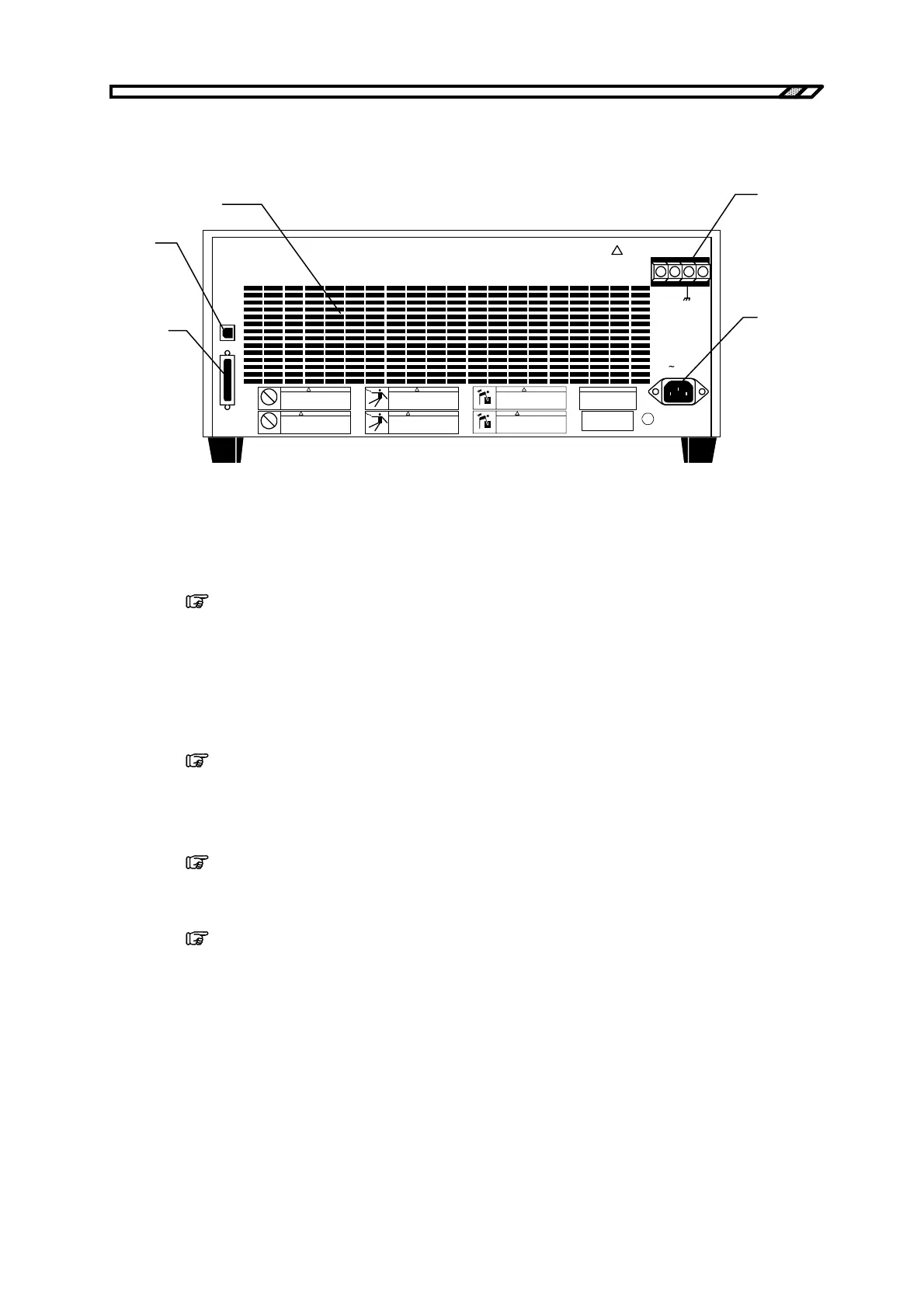

3.1.3 Rear panel
!
OUTPUT
Hi Lo
LINE
USB
CONTROL
質量 MASS
26kg
!
警告
!
WARNING
!
警告
!
WARNING
!
警告
!
WARNING
<18>
<19>
<20>
<21>
<22>
<18> Output pin
This is the voltage and current output pin. The Lo side is internally connected to the
chassis.
Refer to “2.4.2 Connection to output pin”.
<19> Exhaust vent
This is the vent for exhausting the cooling air of the BP4610.
<20> USB connector
This is the USB interface connector for controlling the BP4610 from an external
computer.
Refer to “2.4.3 Connection to USB connector” and “5 USB INTERFACE”.
<21> External control I/O connector
This is the I/O connector used to control output and sequence operation via an external
digital signal.
Refer to “2.4.4 Connection to external control I/O connector”.
<22> LINE INPUT
This is the power supply input terminal. Pay attention to the voltage input range.
Refer to “2.4.1 Connection to power supply input terminal”.
