NF BP4610 - Connection to External Signal Input Pin; Figure 2-9. EXT SIGNAL in Terminal

2.4 Connection to I/O terminals
BP4610
2-10
2.4.5 Connection to external signal input pin
To use signal input from external as the signal source, connect the external signal input terminal (EXT
SIGNAL IN) on the front panel to the external signal source. For the connection, use a coaxial cable
with a BNC connector.
The specifications of the external signal input terminal are as follows.
Frequency range: DC to 200 kHz
Gain: 100 × (100 V/1 V), in-phase (CV mode)
10 × (10 A/1 V), in-phase (CC mode)
Gain accuracy: ±5% (1 kHz)
Input impedance: 10 kΩ
Non-destructive max.: ±5 V
POWER
EXT SIGNAL IN
VO IO
MONITOR OUT
O I
1/100 1V/10A
SEQUENCE
TOP
MENU
START STOP HOLD LO
OUTPUT CANCEL EN
BIPOLAR DC PO
MEASURE
EXT SIGNAL IN terminal

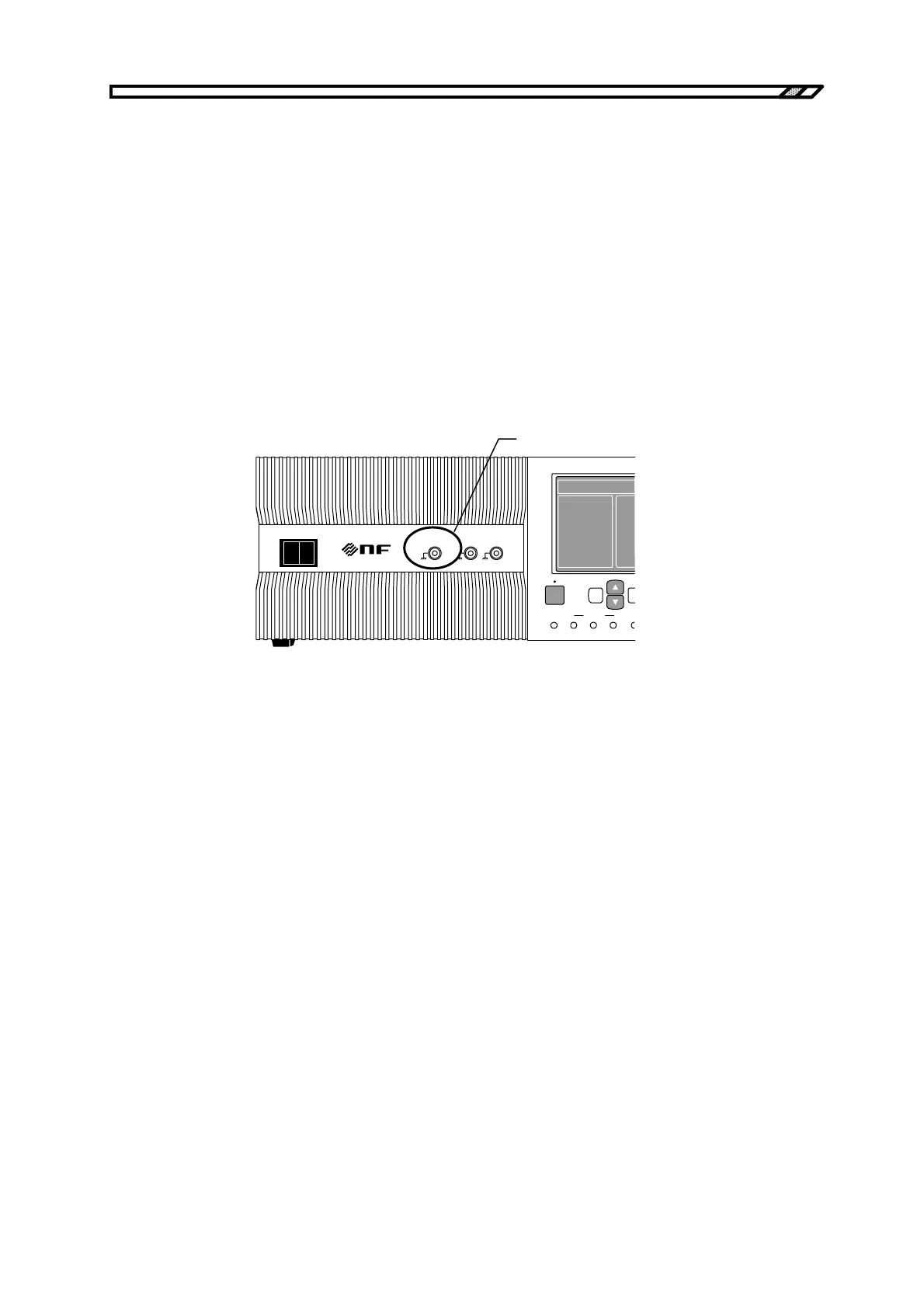

Figure 2-9. EXT SIGNAL IN Terminal
