Loading supplies 239
14

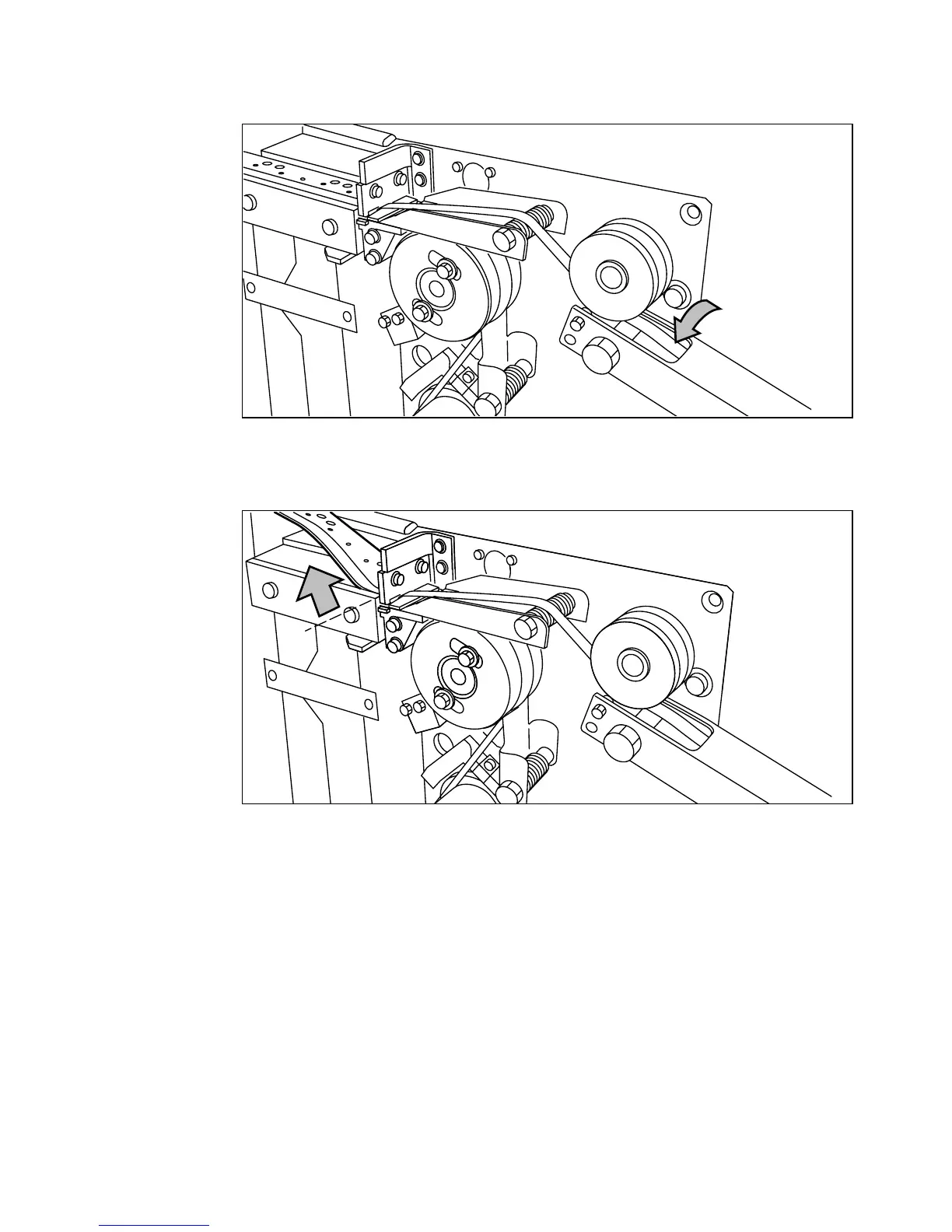

Insert the leading edge of the tape into the closed section of the slide (see
figure 128).
[128] Inserting the tape into the closed section of the slide
15
Hold the upper guide plate down and cut the tape at the knife section by quickly
pulling the edge up so that the tape is cut by the upper knife (see figure 129).
[129] Cutting the tape at the knife section
16
Close the side door of the reinforcement unit.
