Positioning the reinforcement knives (optional)
Because the knives of the optional reinforcement unit of the folder get sticky
from the glue on the reinforcement tape, they have to be cleaned regularly. You
are recommended to clean the knives each time you have inserted a new tape
roll (see ‘A new tape roll’ on page 232) or when an error in the reinforcement
unit has occurred.
Before you can clean the reinforcement knives, you have to place them in such
a position that all the parts that need to be cleaned are accessible. You can do
this from the printer operating panel.
▼
▼▼
▼
Prepare the reinforcement knives for cleaning
1
Press the
on line
button on the printer operating panel to put the printer off line.
The ‘
Off line
’ message is displayed in the status window.
2
Press the left selection button to shift the focus to the
Folding
menu.
A shadow effect is used to indicate that the focus is set to this menu.
3
Select the
Special
option from the
Folding
menu.
4
Press the ‘start’ right selection button to activate the
Knife
option.

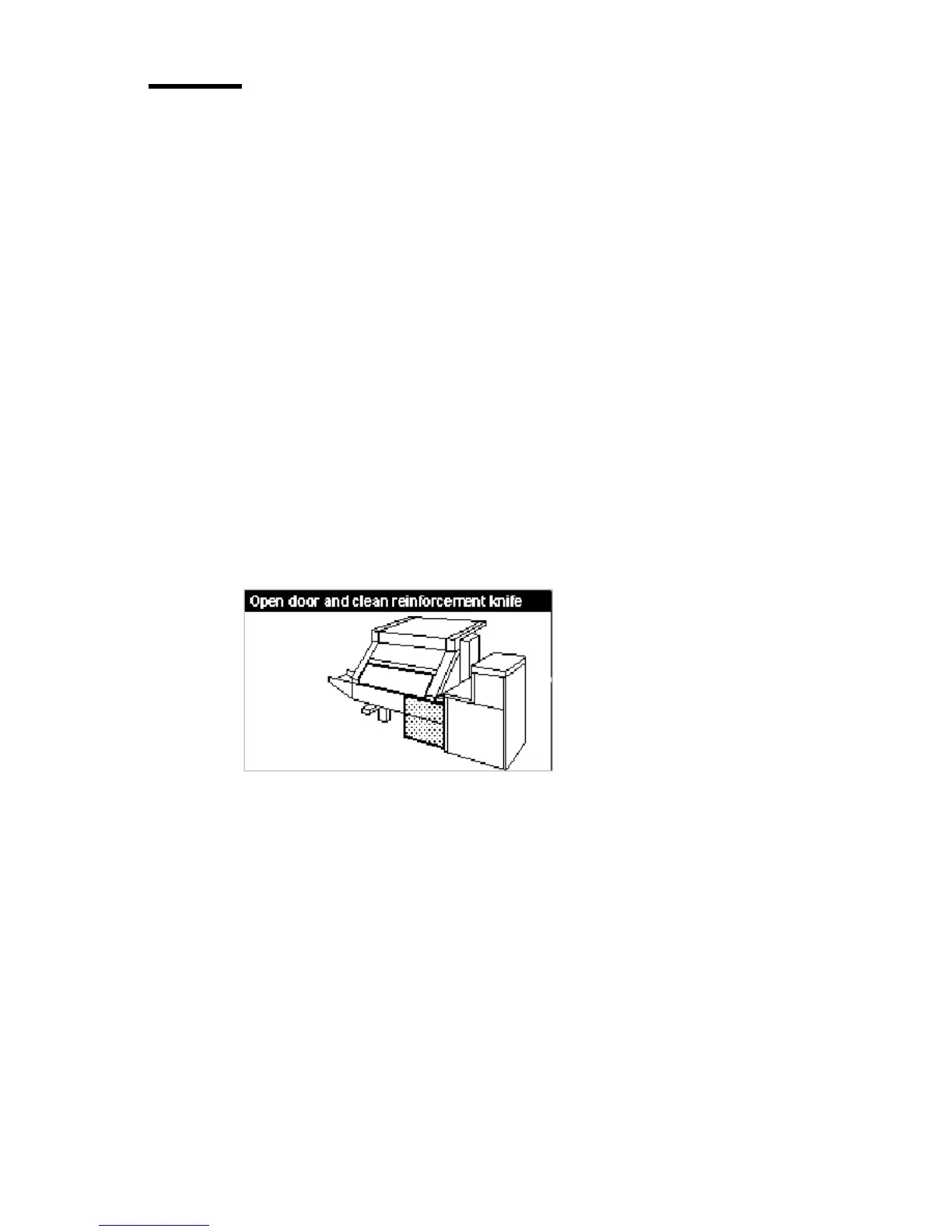

The following information is now displayed in the panel display:
[11] Cleaning the reinforcement knife
Note:
When a job is running, the ‘Job interrupted’ message appears. The
machine stops running after it has correctly finished the prints that were
already in the engine. Then the reinforcement knives are placed in the
correct position.
5
You can now continue to clean the reinforcement knives (see ‘Maintenance of
the reinforcement knives’ on page 241).
