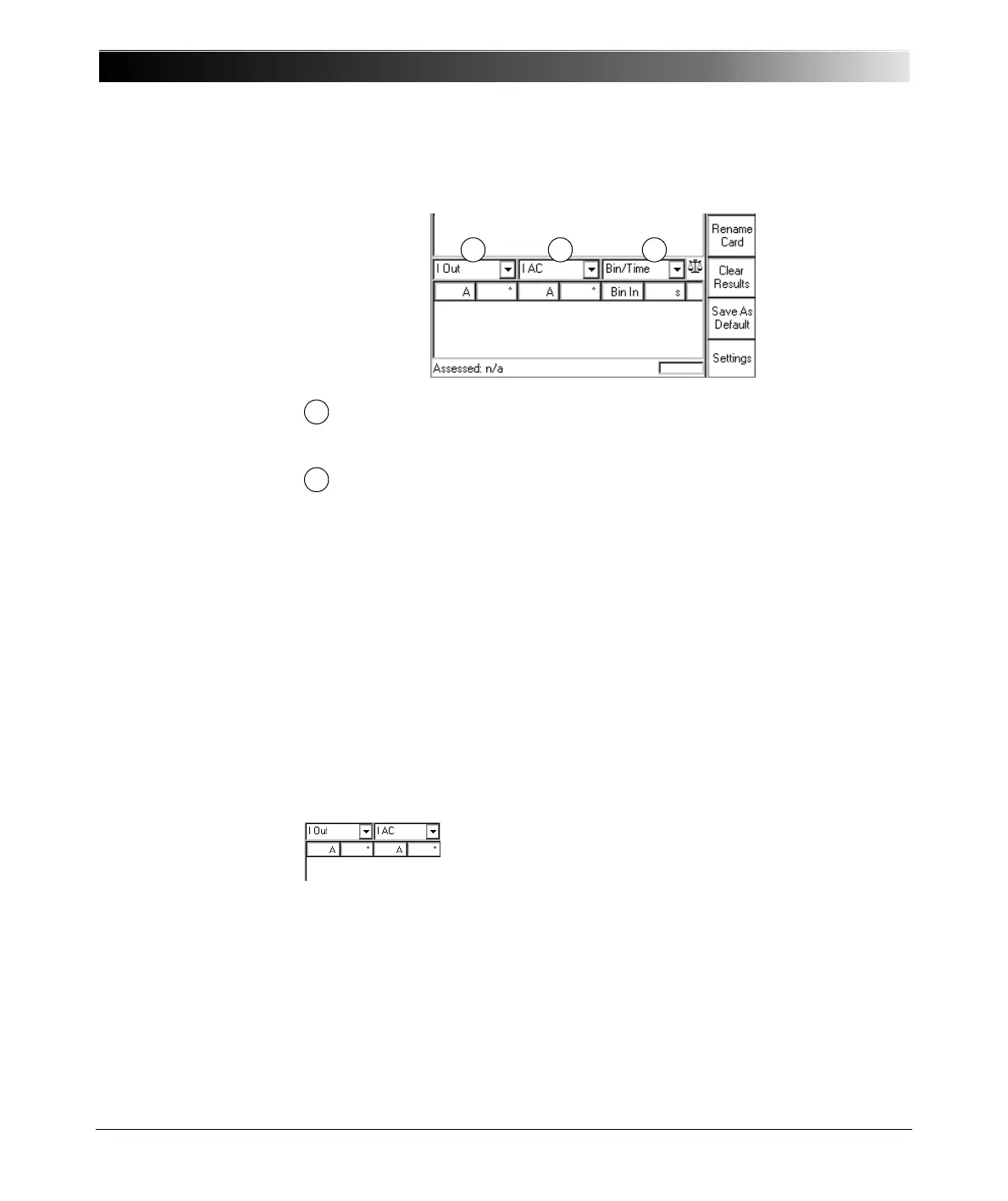

Specify the values that the measurement table will eventually show.
Figure 5:
Step 3 - Specify the
values that the
measurement table will
eventually show
Turn the handwheel to set the focus onto the measurement table’s first
combo box. Press the handwheel to display the available quantities to
measure, and select the one of your choice.
Repeat this step at the combo box for the second quantity to measure.
Possible choices of each combo box:
•V1AC
•V1ACsel
1
•V2AC
•V2ACsel
•VT
•VTsel
•IAC
• I AC sel
1. sel = frequency-selective. To learn more about frequency-selective measurements, refer to ”The
Frequency-Selective Measurement” on page 3-6.
•IClamp
•IClampsel
•CT
•CTsel
•VDC
•IDC
•fV1AC
•fOut
Each combo box has two corresponding cells in the
measurement table below that display the measured
quantities, where possible; otherwise "n/a" is displayed.
10 11 12
10
11
