CHAPTER 9 – Animation OMRON
Page 134 Release 2.0
The Script Editor allows script code to be created or amended which carries out the mechanics of the
animation operation. To access the Script Editor dialog to add an action, select Execute Script from
the animation list and click on the Add Action button on the toolbar. To access the Script Editor to
modify an action, select Execute Script from the animation list and click on the Modify Action
button on the toolbar. Refer to the Script Reference chapter 10, Objects, for a list of the objects to
which an Execute Script action is applicable. Page Animations and Project Animations may have an
Execute Script action.

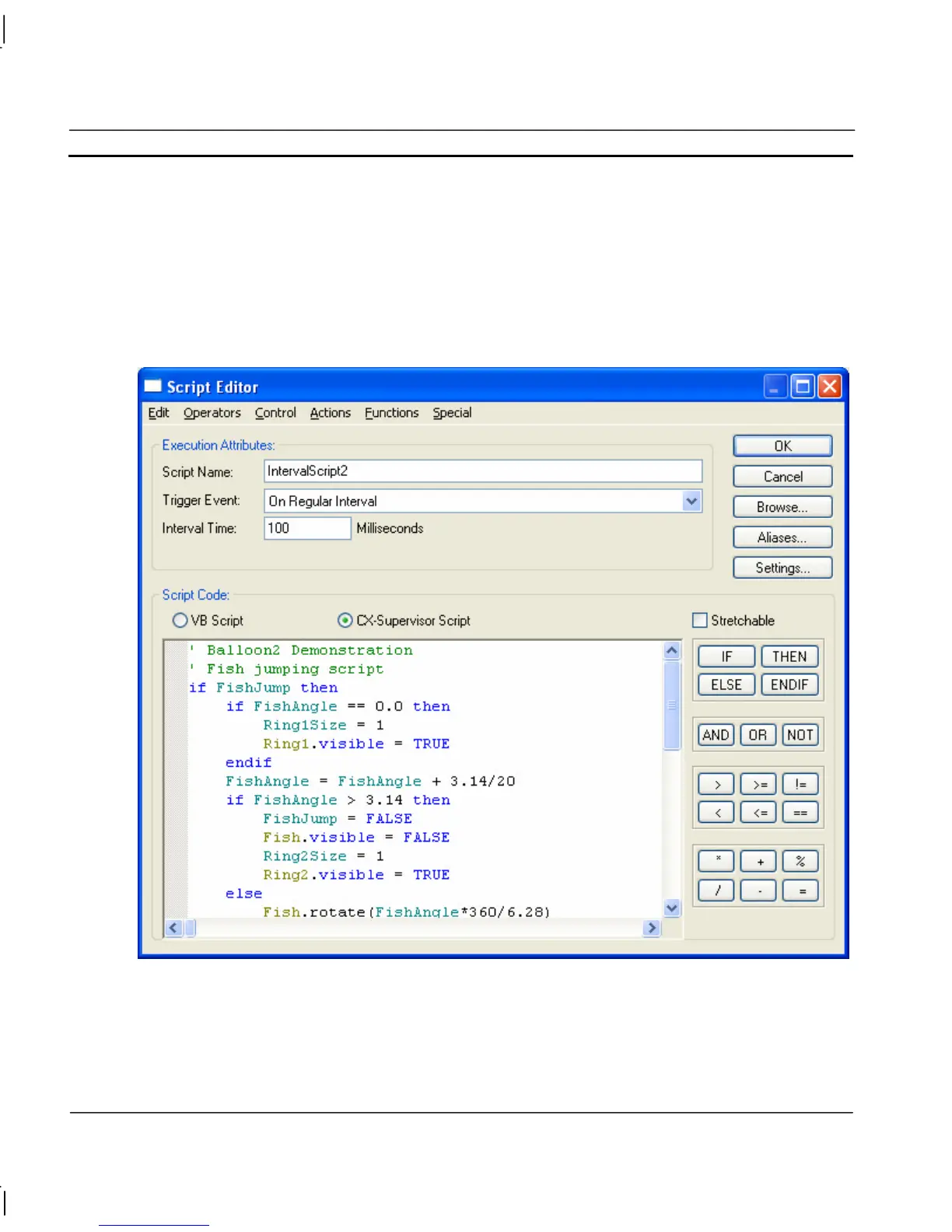

On selection of the Execute Script action, the Script Editor dialog is displayed:
The script editor is colour coded to help show correct syntax with keywords and different object
types are shown in different colours.
