APPENDIX C – Troubleshooting OMRON
Page 300 Release 2.0

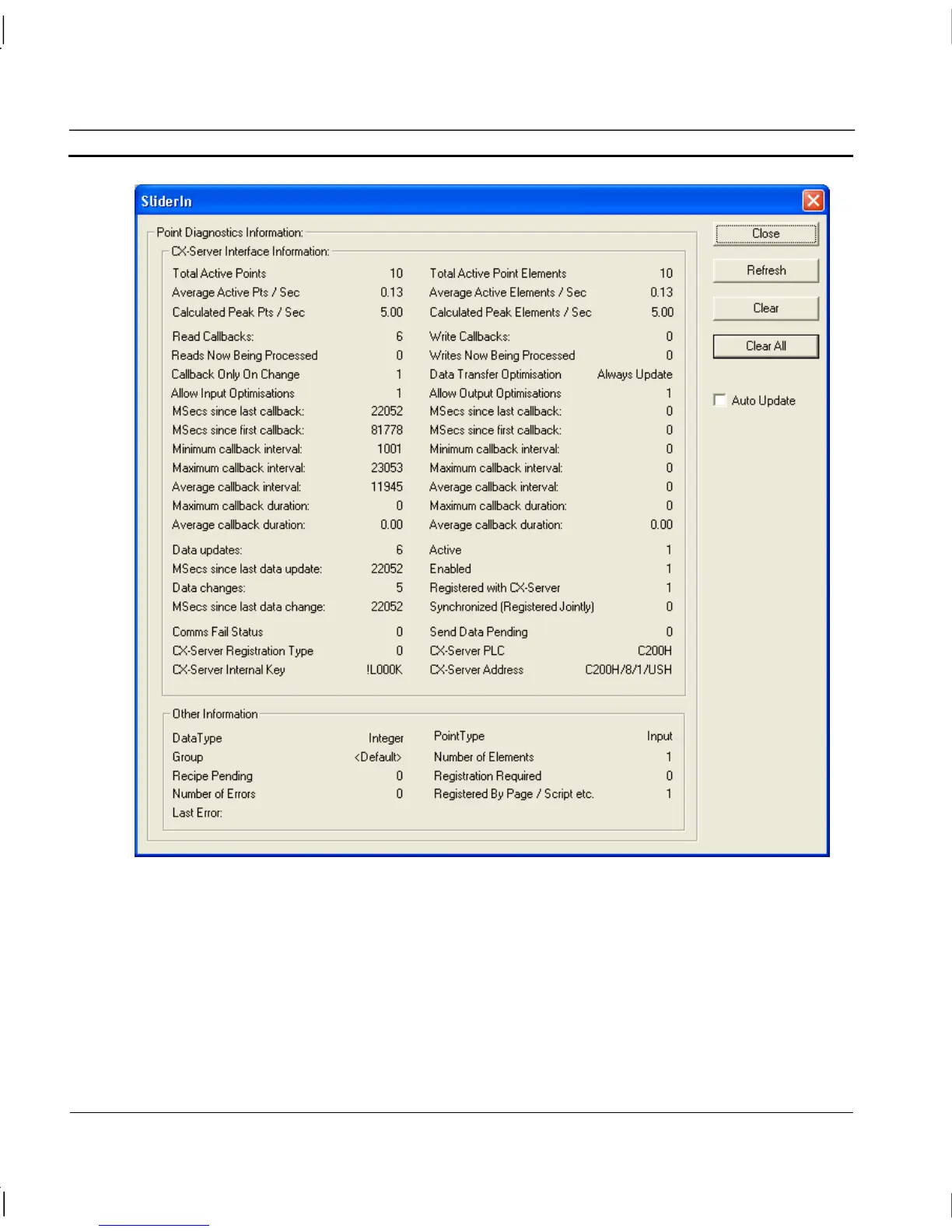

The most useful readings on this screen are:
• “Auto Update” refreshes the data twice a second.
• Total Active Points: Number of CX-Server points (both input and output) currently active.
• Average Active Pts/Sec: Measured number of CX-Server Inputs per second, since
application started (or since “Clear” pressed). With ‘Input On Change’ optimisation this can
be very small. Also $InputsActual System Point
• Calculated Peak Pts/Sec: Calculated number of CX-Server Input points currently active,
multiplied by update rate.
