OMRON CHAPTER 4 – Objects
Release 2.0 Page 57
The Wizard allows entry in the Configuration Attributes: and Expressions fields.
1, 2, 3…
1. Enter the frequency of data sampling in the Sample Rate: field; in this
example the sample rate is every thirty seconds.
2. Enter the maximum number of samples to be displayed on the scatter graph
in the Max Samples: field.
3. Select the type of symbol to represent the data.
4. Select the colour of the symbol representing the data.
5. Select the colour of the scatter graph background.
6. Toggle the Project Colours and 3-D Frame settings as desired. If set, the
Project Colours field allows the colour of the axis to be changed using the
Palette. The 3-D Frame option enables the graph to appear with a 3-D
frame.
7. Either enter an arithmetic expression for the X and Y axis or select one
through the Browse pushbutton. An expression point can also be
associated with the Scatter Graph Wizard by dragging a point directly from
the Point Editor. Refer to chapter 3, Points regarding adding a new point
and dragging from the Point Editor.
8. Change the fonts used for the Scatter Graph via the Font pushbutton. The
font size used by the graph can be automatically calculated for the user by
selecting the Auto Size Font field.
9. Exit the Scatter Graph Wizard by clicking the OK pushbutton to accept the
new scatter graph attributes or click the Cancel pushbutton to leave the
scatter graph unchanged.

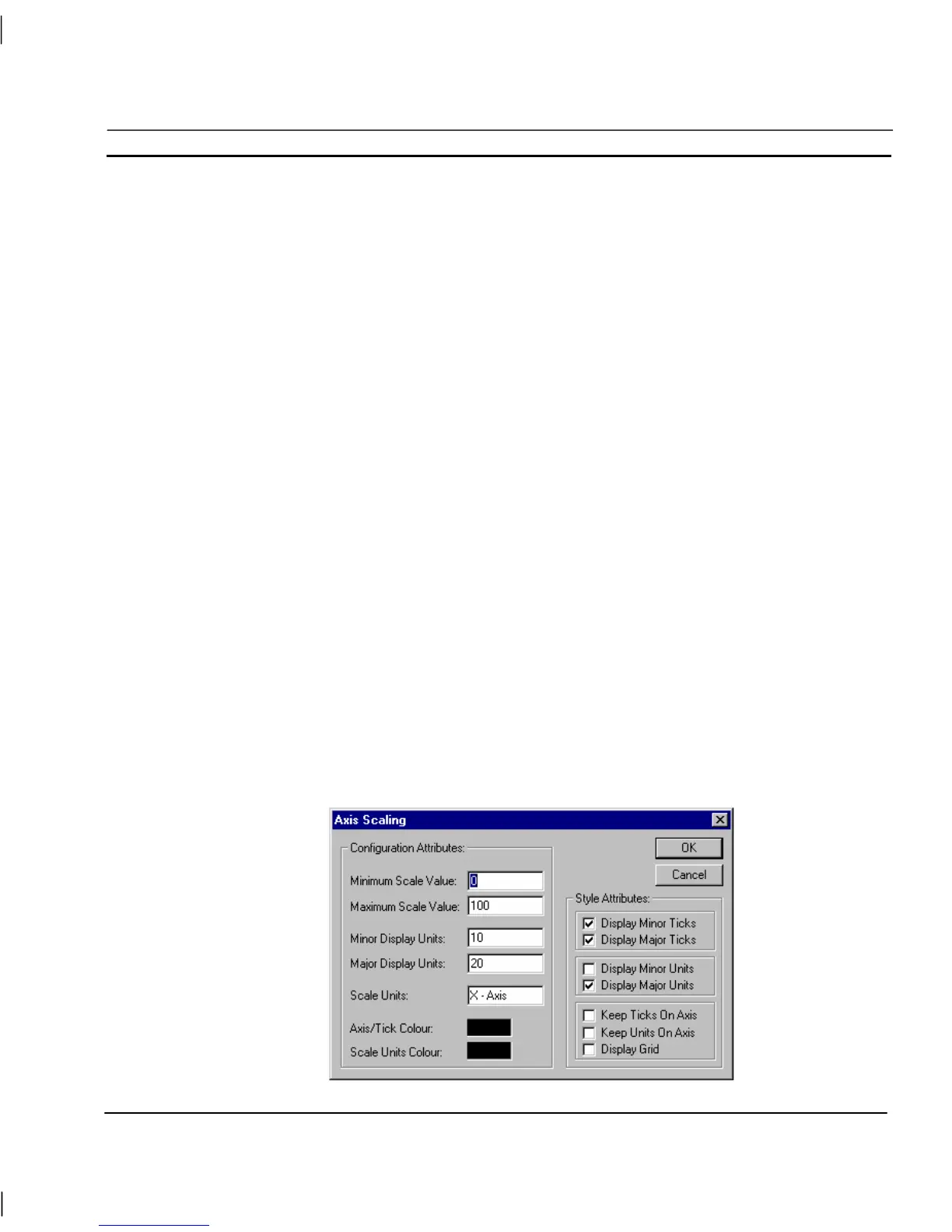

To configure the X axis, click the X-Axis pushbutton. To configure the Y-axis , click the Y-Axis
pushbutton. The Axis Scaling dialog is displayed:
