CHAPTER 4 – Objects OMRON
Page 58 Release 2.0
Configuration attributes can be altered by typing over the existing field entries. The style attributes
can be amended by clicking on the settings.
Exit the Axis Scaling dialog by clicking the OK pushbutton to accept the scaling attributes, or click
the Cancel pushbutton to leave unchanged.
Slider
Sliders allow values associated with them to increase or decrease between certain limits.
They can also ensure that values do not exceed previously set limits.
Click the Slider button, then click or click and drag on the page to insert a slider.

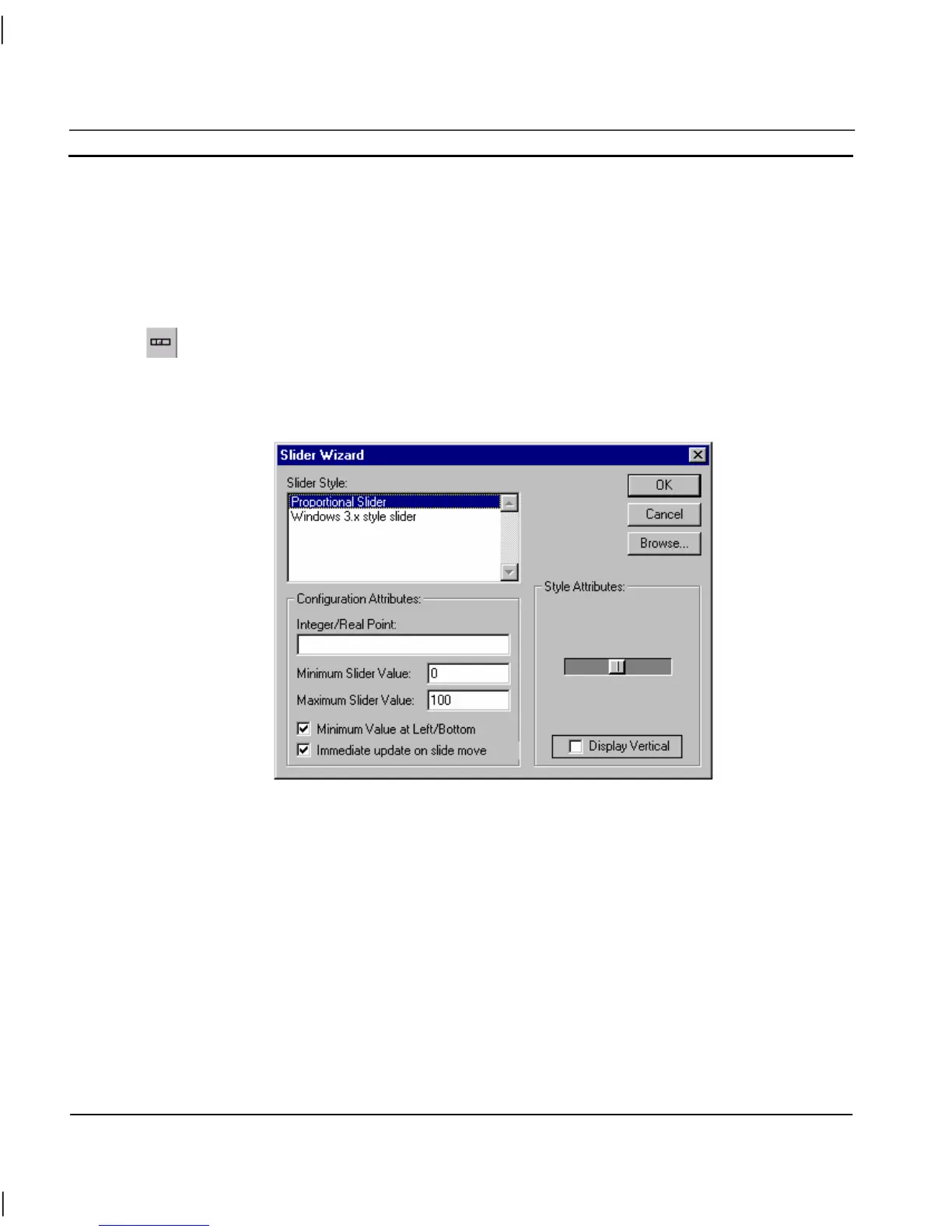

To edit the Slider, double click on it. The Slider Wizard dialog is displayed as follows:
The Wizard allows entry of in the Slider Style:, Style Attributes: and Configuration Attributes: fields.
To select a style, click on an option from the list box. The Style Attributes: can be either Display
Vertical or Display Horizontal. To select a Boolean point, click on the Browse pushbutton and select
a point from the displayed list. Click the OK pushbutton to accept the point or click the Cancel
pushbutton to leave the point unselected. Clicking the Add Point button from the toolbar allows a
new point to be created prior to association with the Wizard. An existing point can also be associated
with the Wizard by dragging a point directly from the Point Editor. Refer to chapter 3, Points
regarding adding a new point and dragging from the Point Editor.
Enter the maximum and minimum slider values and check the box to display the minimum value at
the left or bottom of the page.
Exit the Wizard by clicking on the OK pushbutton to accept the new slider attributes or click on the
Cancel pushbutton to leave the slider unchanged.
